NS-10A Check For Pressure In Fuel Supply System
NS-10A Check For Pressure In Fuel Supply System

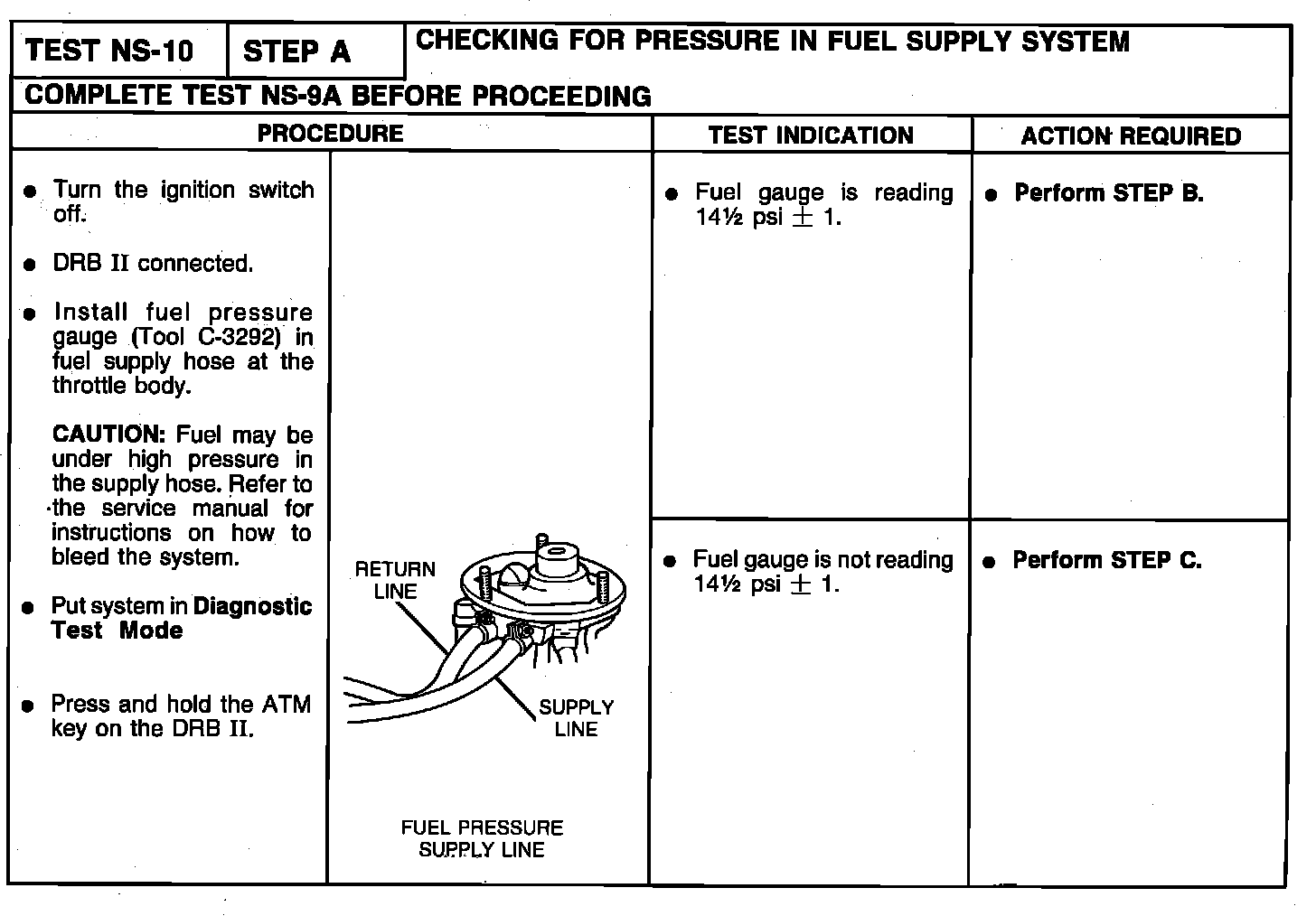

NS 10-Step A: Pressure In Fuel Supply System:
