Home >> Chrysler >> 1988 >> Lebaron Convertible L4-153 2.5L SOHC VIN K TBI >> Repair and Diagnosis >> Diagrams >> Connector Views >> Powertrain Management >> System Diagram >> Single Module Engine Controller (SMEC) >> 60-Way Engine

60-Way Engine

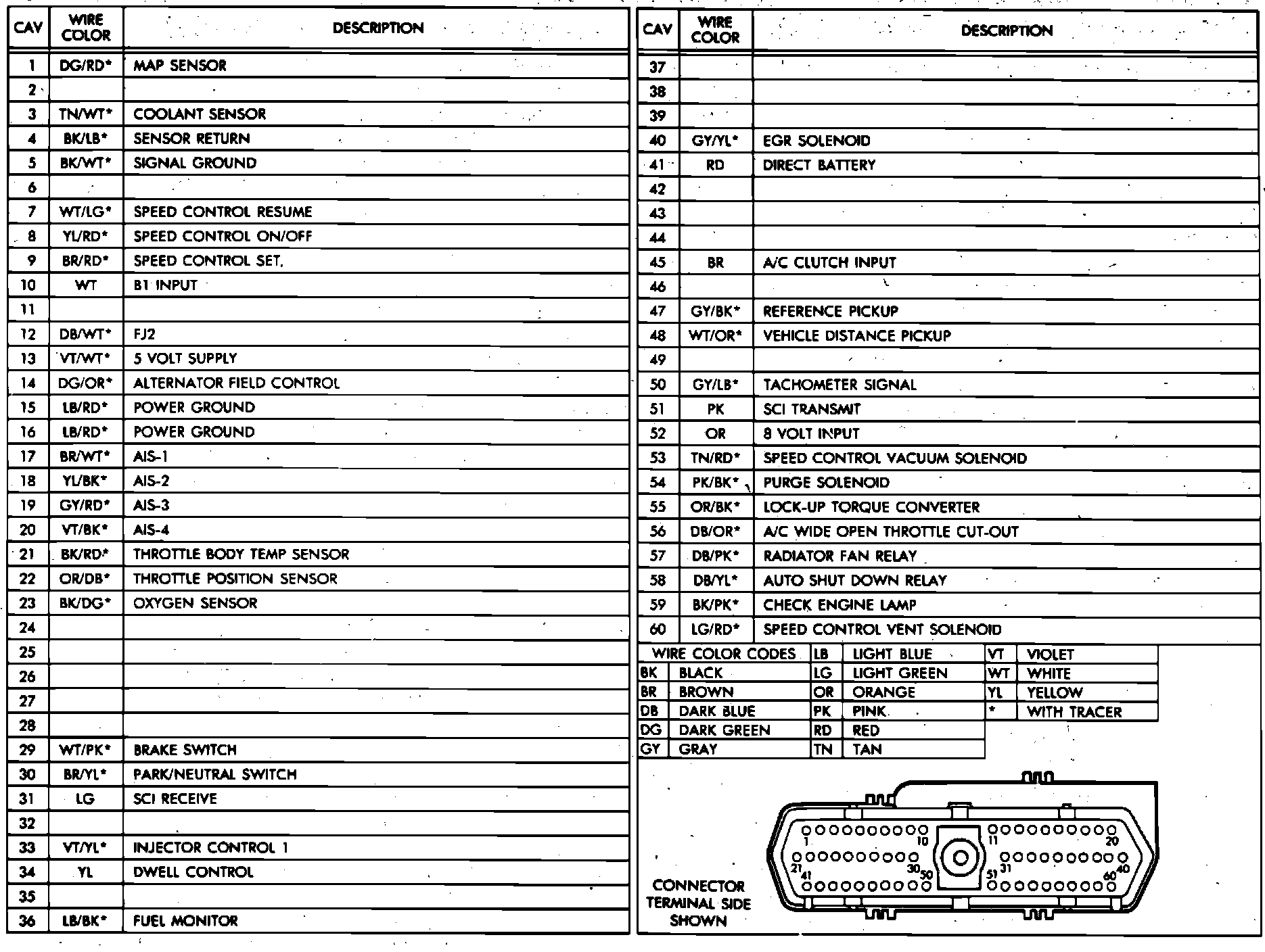

Fig. 16 SMEC 60 pin connector terminal identification. 1988 models:
