Electrical Diagrams

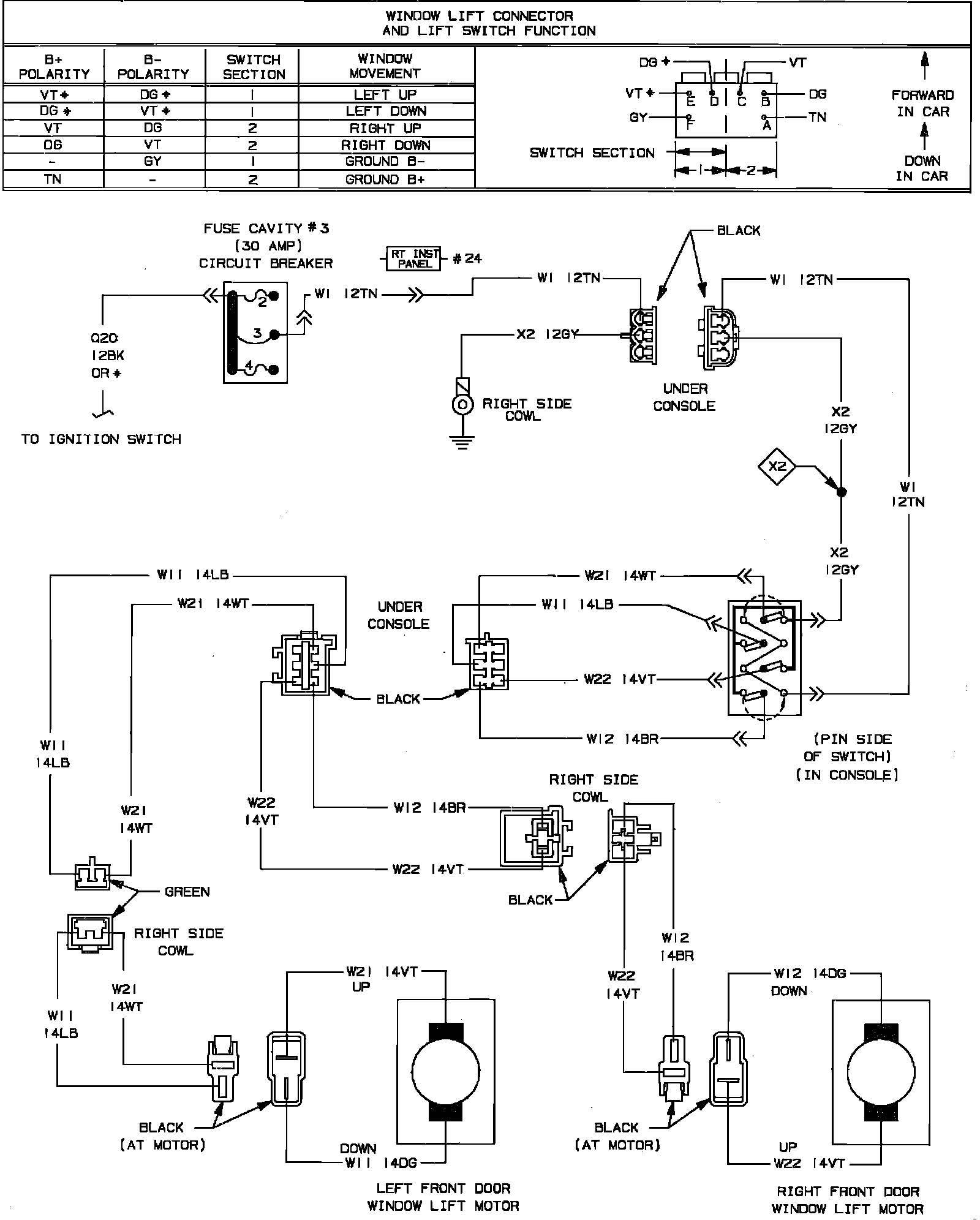

Power Window Wiring Circuit. 2 Door:

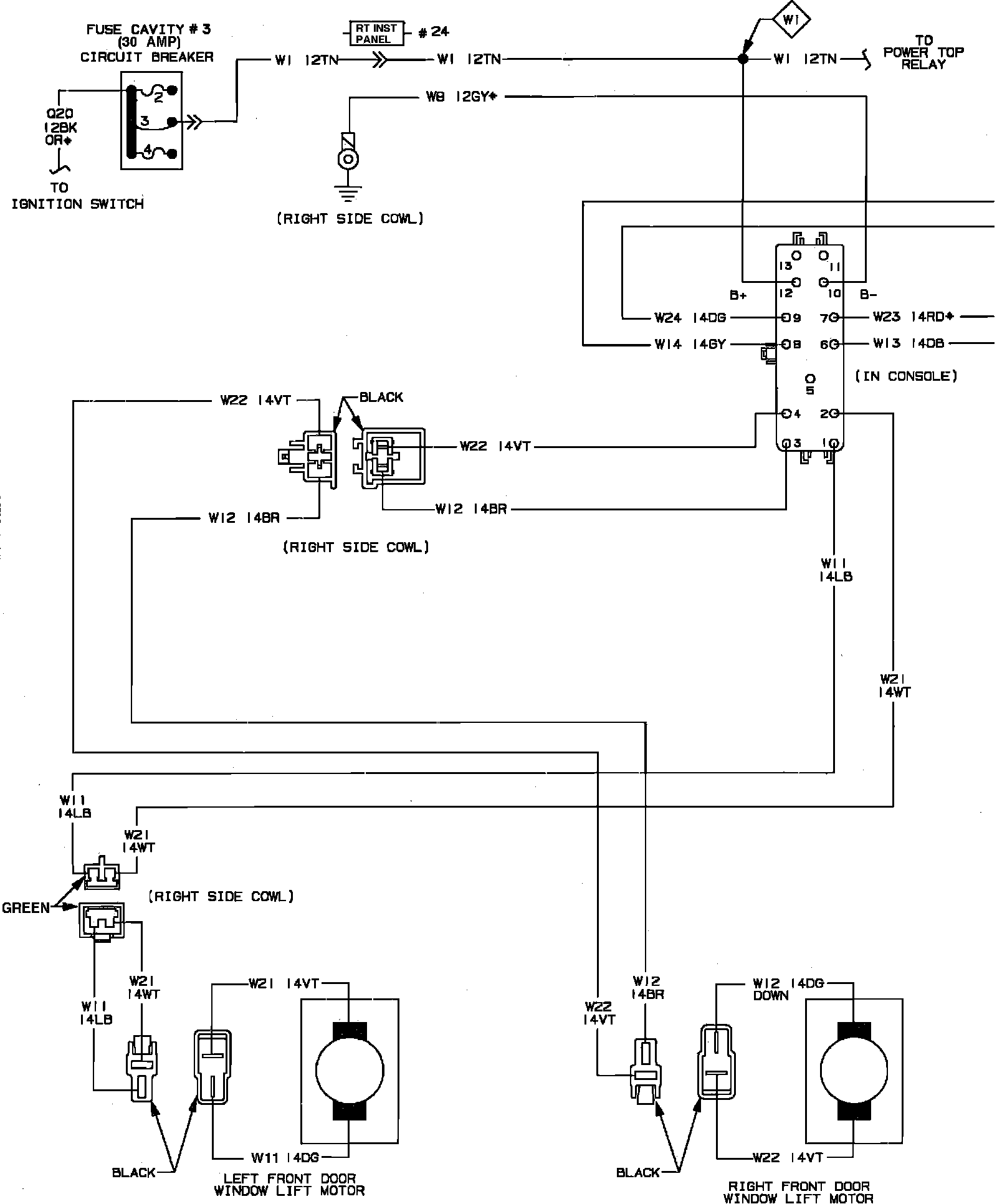

Power Window 4 Door (Part 1 Of 2):

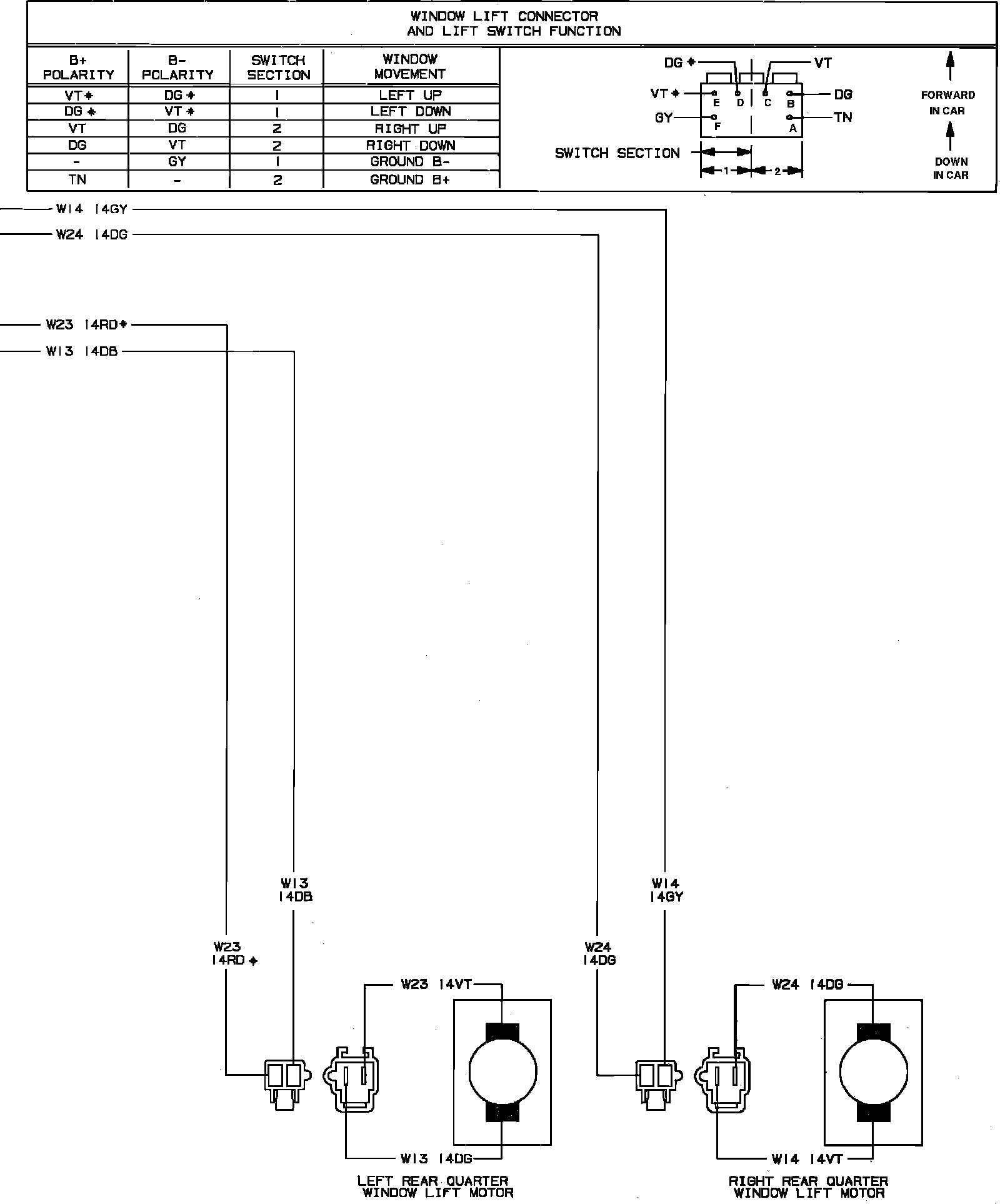

Power Window 4 Door (Part 2 Of 2):
