Electrical Diagrams

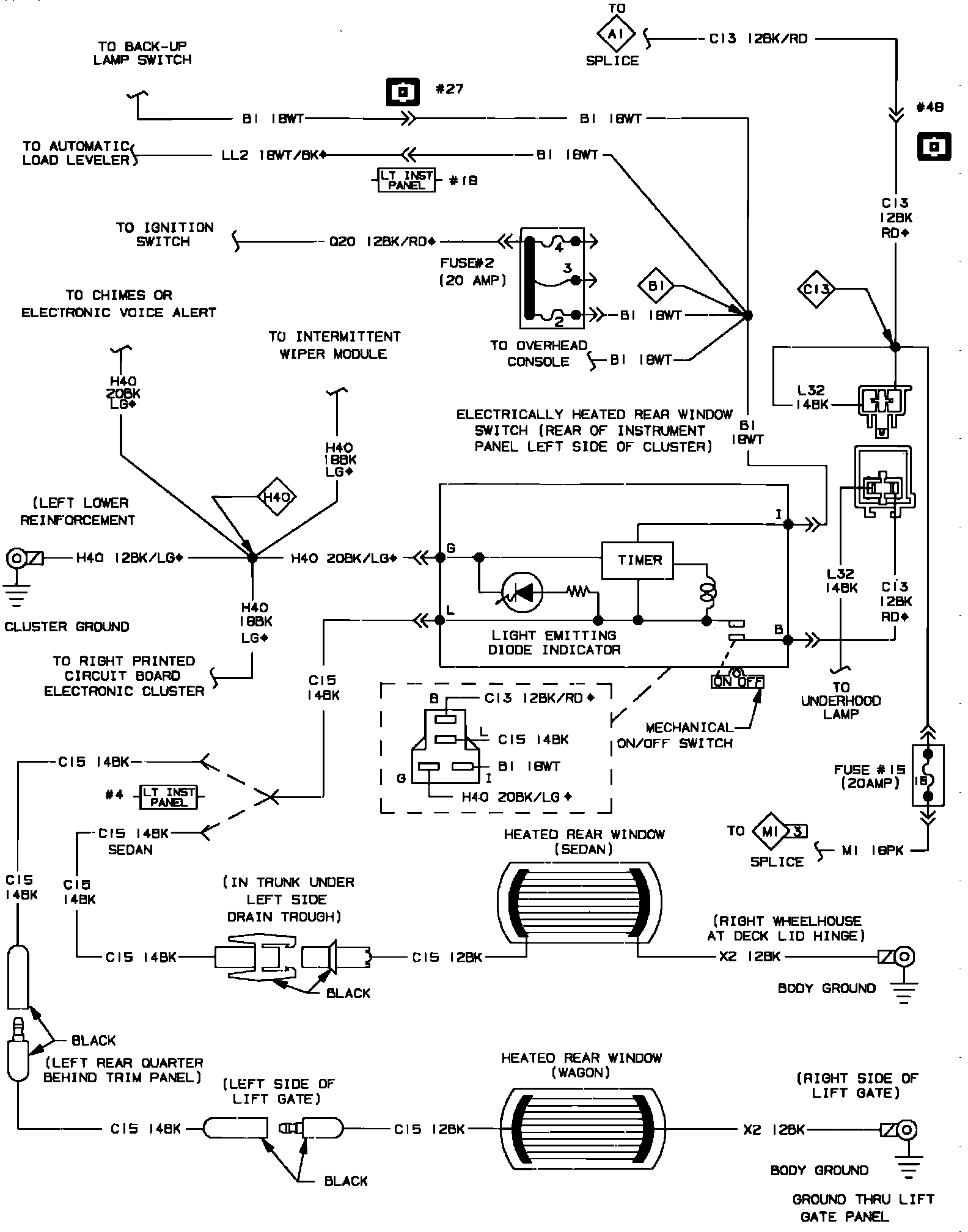

Heated Rear Window Wiring Circuit:

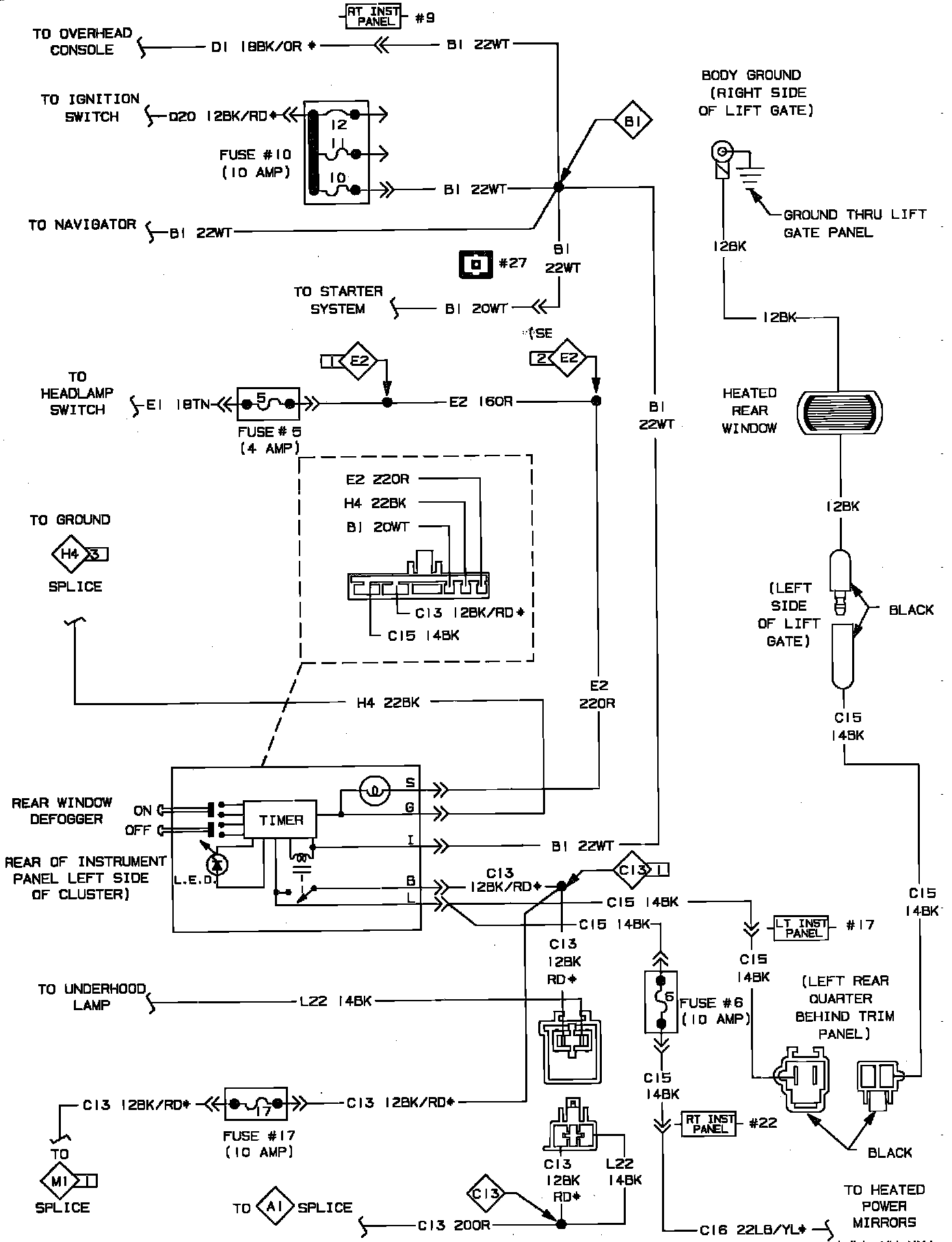

Rear Window Defroster Wiring Circuit. Convertible:

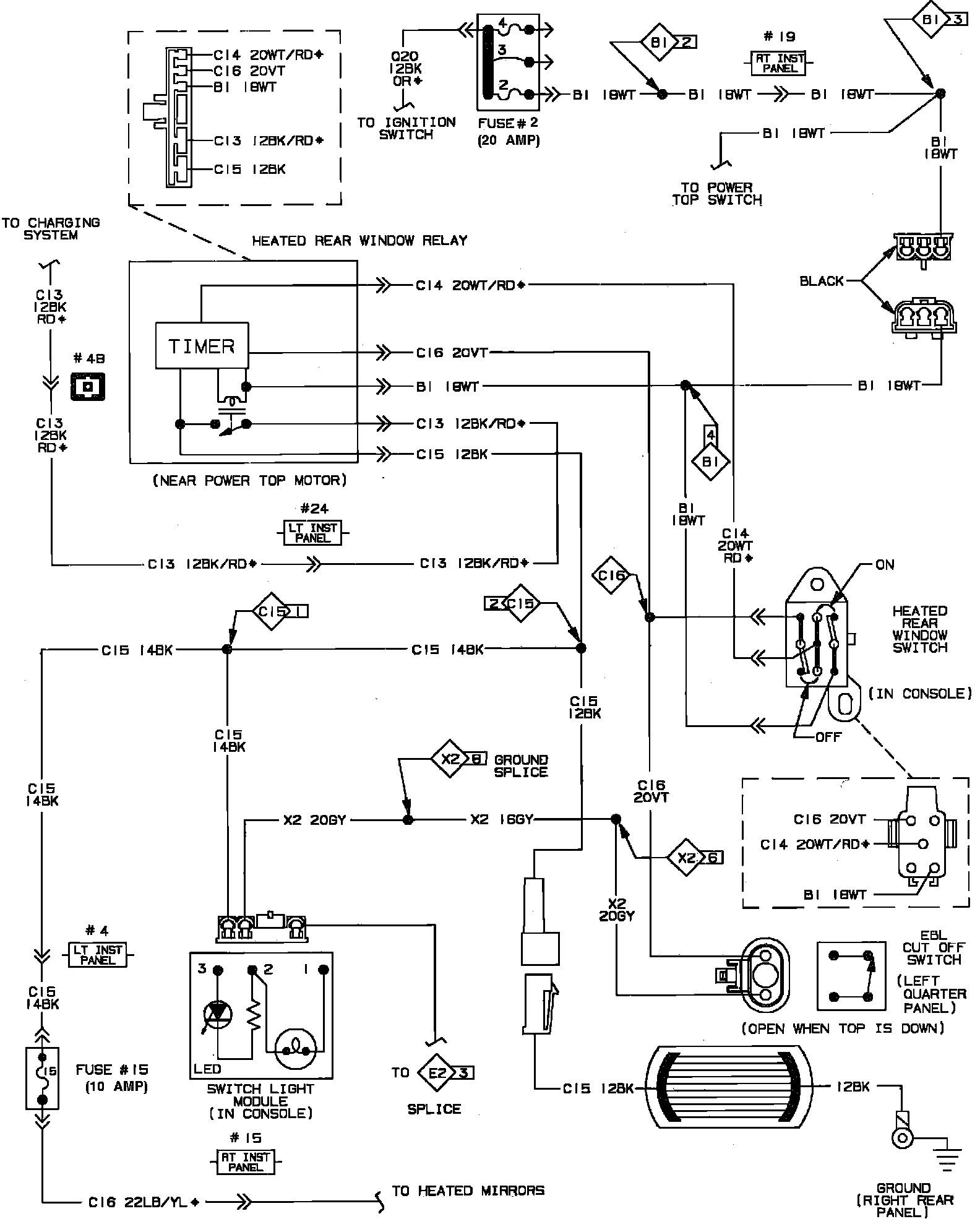

Rear Window Defroster Wiring Circuit. Exc Convertible:

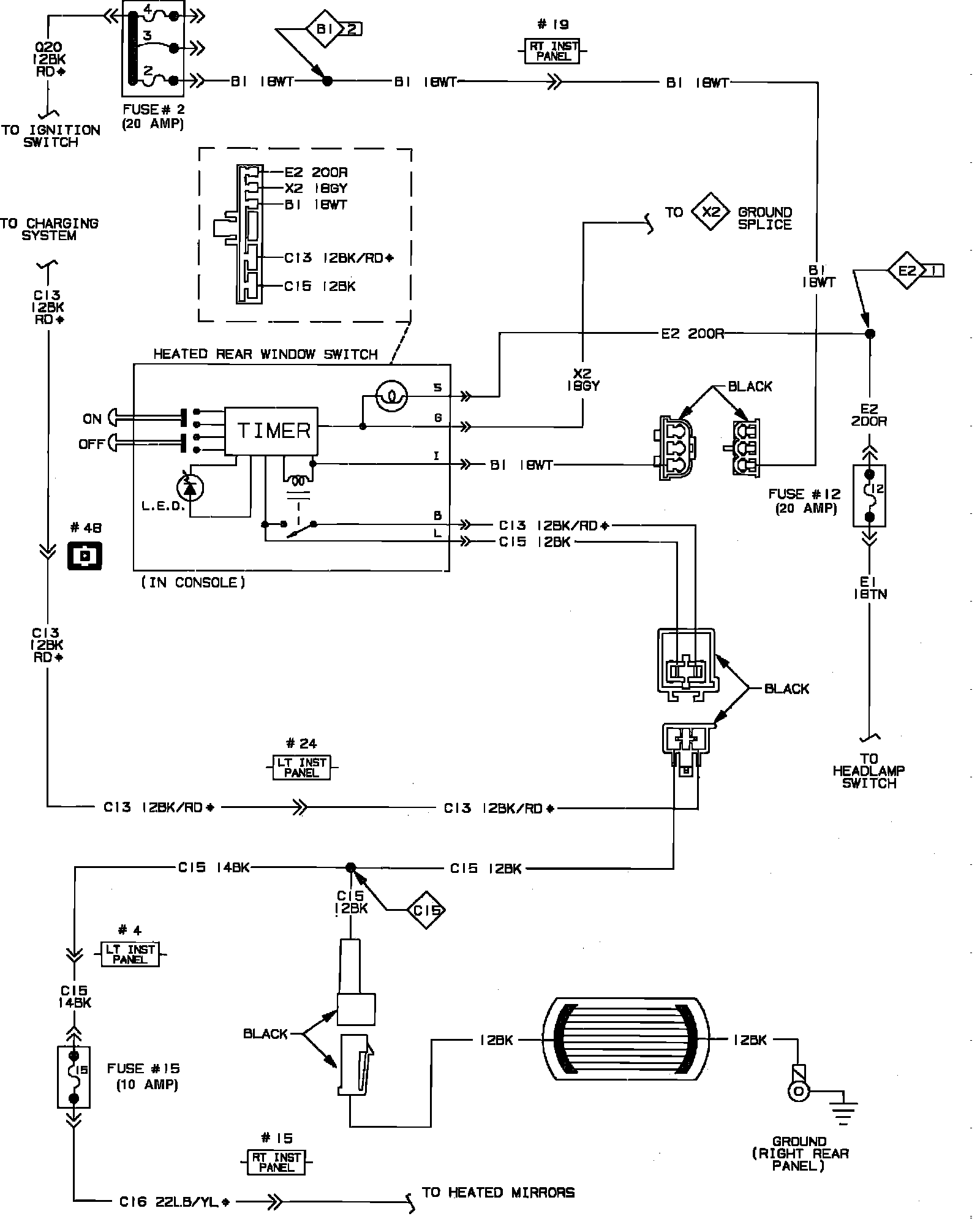

Heated Rear Window Wiring Circuit:
