Lebaron Convertible L4-135 2.2L SOHC Turbo VIN E FI
>>
Repair and Diagnosis
>>
Sensors and Switches
>>
Sensors and Switches - Windows and Glass
>>
Power Window Switch
>>
Locations
Power Window Switch: Locations

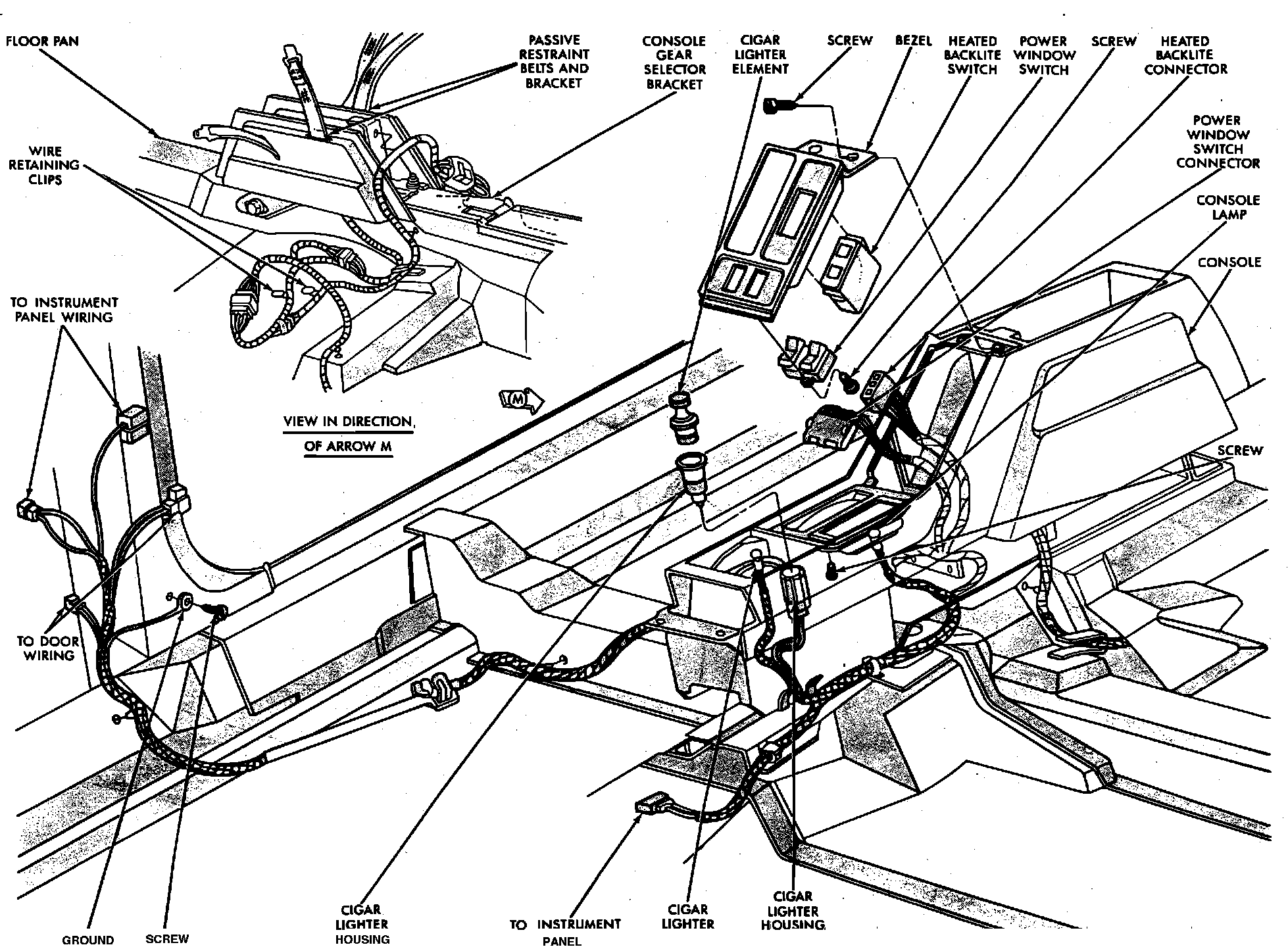

Console Electrical Components:
In Console

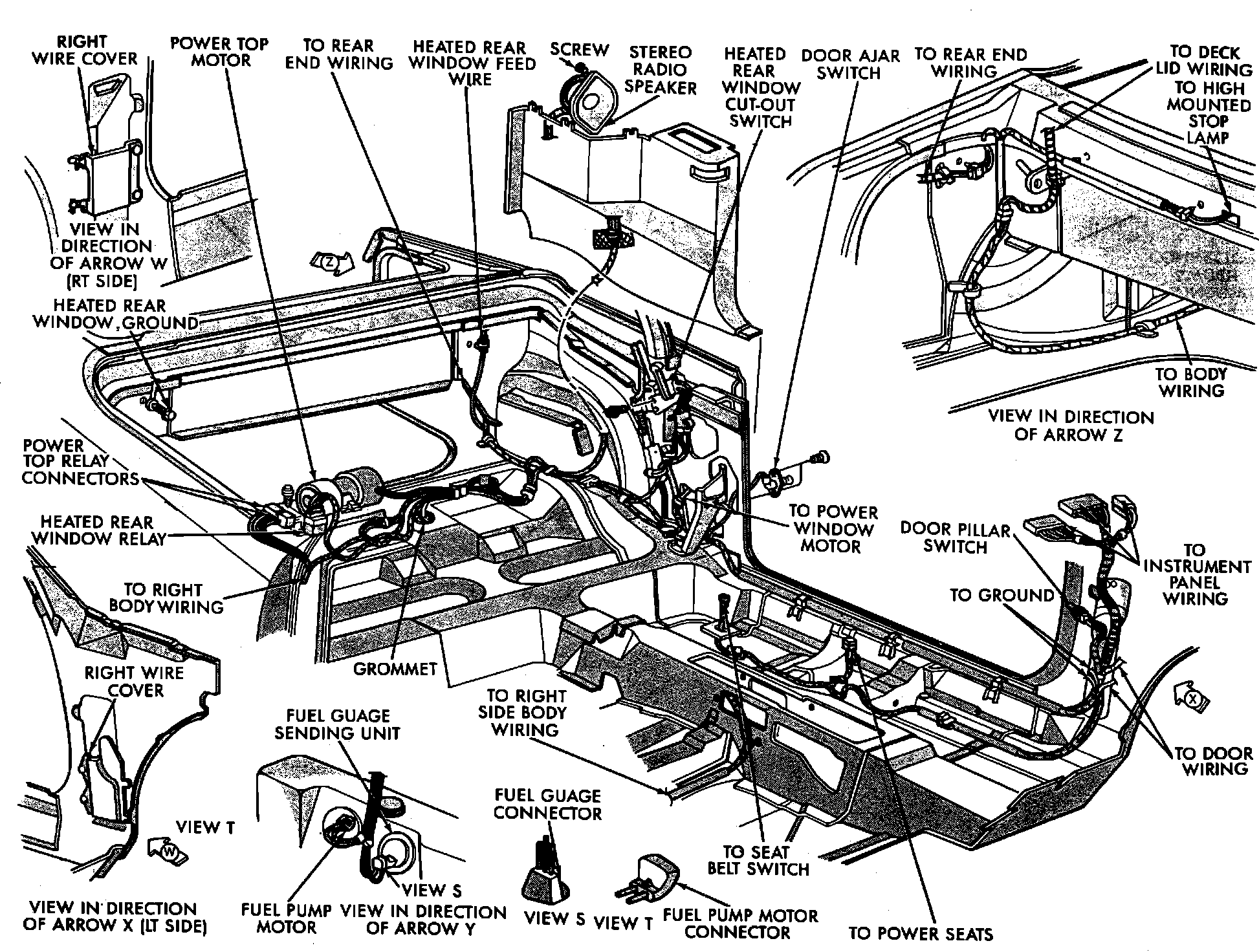

Passenger Compartment Electrical Components:
Heated rear window cut-out switch Near LH Side, Rear Of Passenger Compartment
