Electrical Diagrams

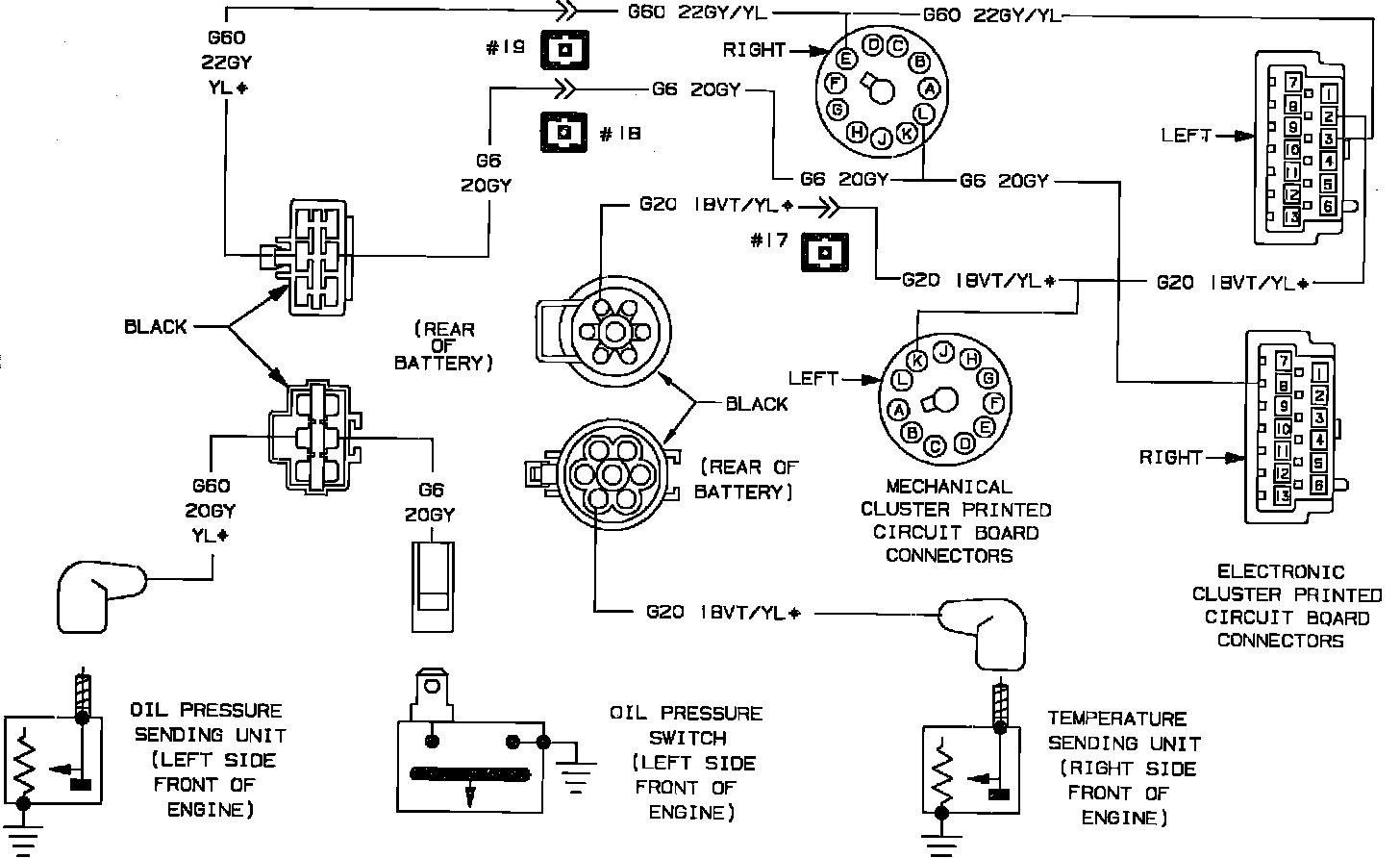

Oil & Temperature Switch Wiring Circuit:

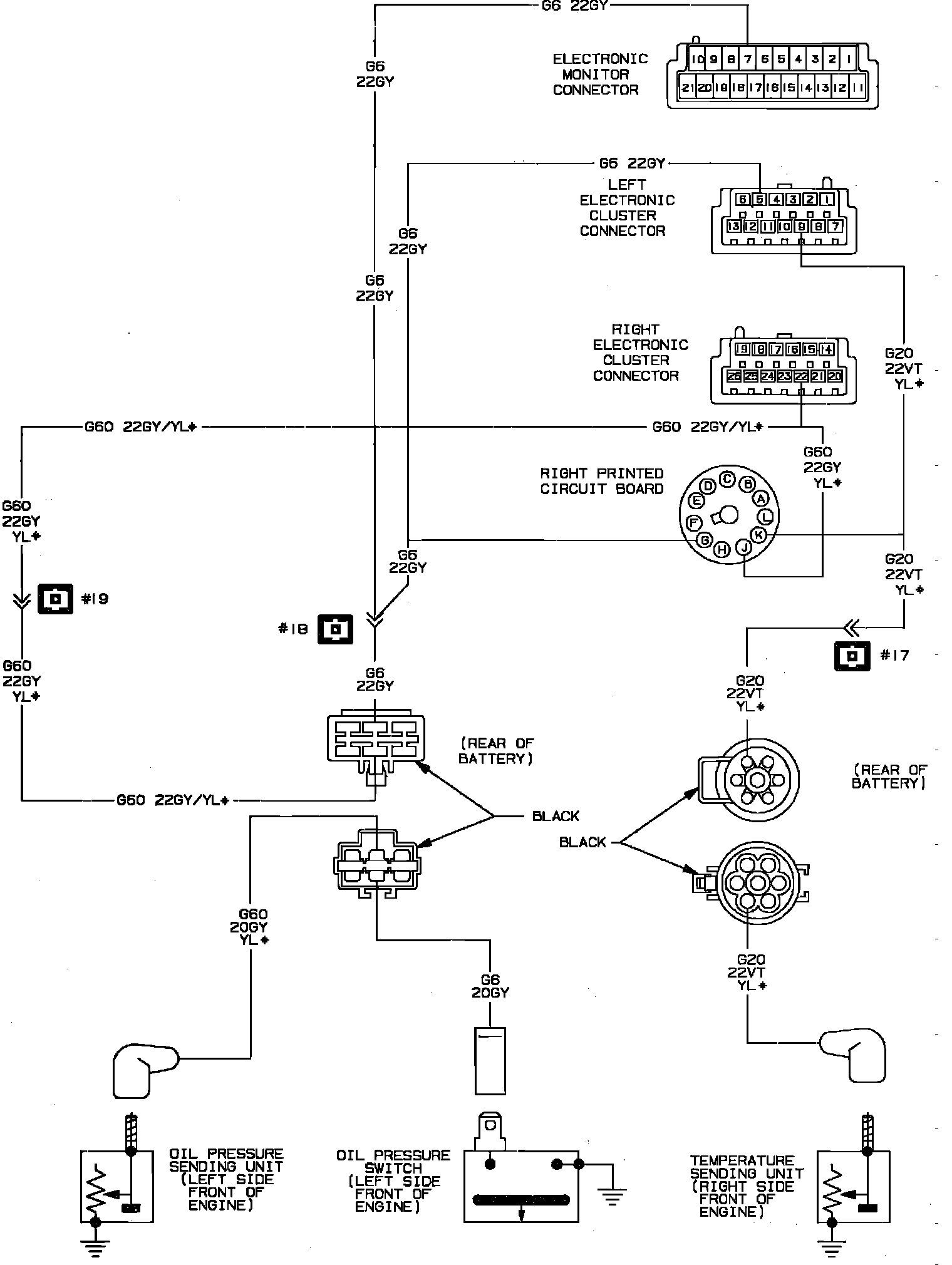

Oil Pressure/Temperature Indicator Wiring Circuit:

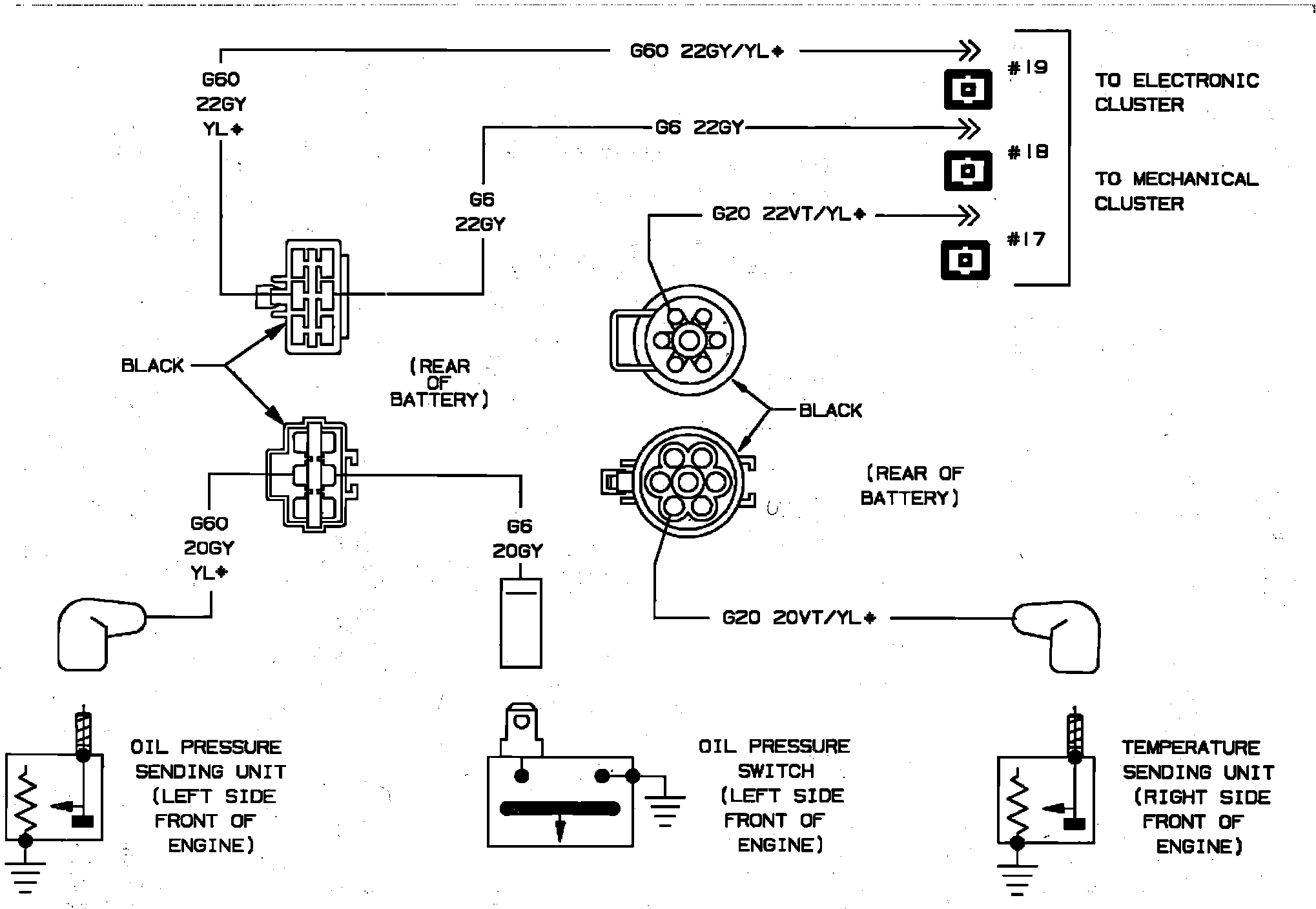

Oil Pressure & Temperature Switch Wiring Circuit:
