Front Seat Belt - Diagnostic Procedures
88chrysler10The following inspection procedure and flow chart has been developed to assist in the diagnosis of suspected defective seat belt tension relievers. This procedure is applicable to all passenger cars and trucks with a seat belt tension reliever. Refer to chart on page 4, for list of vehicles equipped with a tension reliever.
DIAGNOSIS/INSPECTION PROCEDURE
A. Inspect Tension Reliever Mechanism (TR)
- Sit in the front seat and close the adjacent door.
- Buckle up the seat belt system and pull the webbing slack out of the lap belt portion of the belt system.
- Pull at least 12" of the belt off the shoulder and let it fully retract.
- Extract 2" of webbing and release.
NOTE: THE WEBBING SHOULD NOT RETRACT.
B. Inspect Tension Reliever Release (TRR)
- Set the tension reliever mechanism as described in part "A."
- Extract at least 12" of the webbing and release.
- The webbing should fully retract.
Models
All 1988 C-E-G-JK-L-M- & P-Body Passenger Cars & All 1988 B-D- & S-Body Trucks
Subject
Front Seat Belt Tension Reliever Diagnostic Procedures
Index
BODY
Date
August 29, 1988
No.
23-11-88
P-3547 C23-10
C. Inspect Tension Reliever Door Release Mechanism
- Set the tension reliever mechanism as described in part "A."
- Open the adjacent door.
- The webbing should fully retract.
D. Inspect Tension Reliever, Hand Depression of Plunger or Lever
NOTE: ANOTHER PERSON MAY BE REQUIRED TO ASSIST.
- With the door opened, fully depress the tension reliever button (plunger or lever).
- Inspect the tension reliever as described in Section "A."
E. Check Door Gap - (Applies Only to Button Application)
- Form a rectangular box from dum dum (approximately 10 x 10 x 25 MM).
NOTE: PRECISION IS NOT NECESSARY.
- Place the dum dum piece on the sheet metal shut face (next to the tension reliever button) with the long end pointed outward.
- Close the door with enough force to latch it (do not overslam).
- Open the door and remove the depressed dum dum.
- Measure the compressed thickness of the dum dum. This is the door gap.
NOTE: A GAP OF 19 MM OR LESS IS REQUIRED FOR THE TENSION RELIEVER TO SET.
POLICY: Information Only

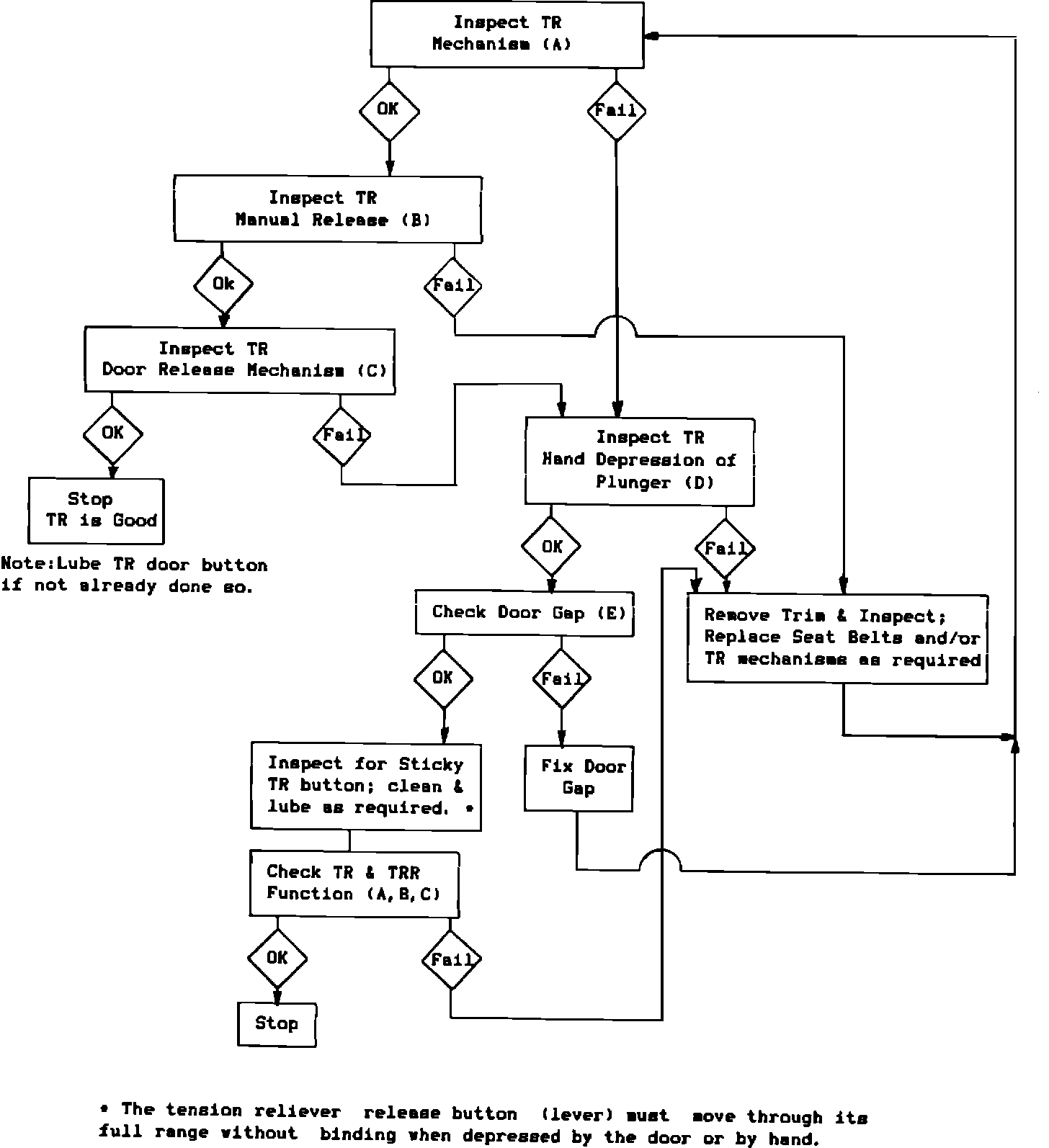

FLOW CHART
SEAT BELT TENSION RELIEVER MALFUNCTION
VEHICLES WITH TENSION RELIEVER
Vehicle Family 1988
B-Body Yes
C-Body Yes
D-Body Yes
E-Body Yes
G-Body Active Seat Belts Yes
Passive Seat Belts No
H-Body No
J-21 Active Seat Belts Yes
Passive Seat Belts No
J-27 Yes
K-Body Yes
L-Body Yes
M-Body Yes
N-Body No
P-24 Active Yes
-44 Active No
P-24 Passive Yes
-44 Passive No
S-Body Yes
