Headlamp Control Module: Service and Repair

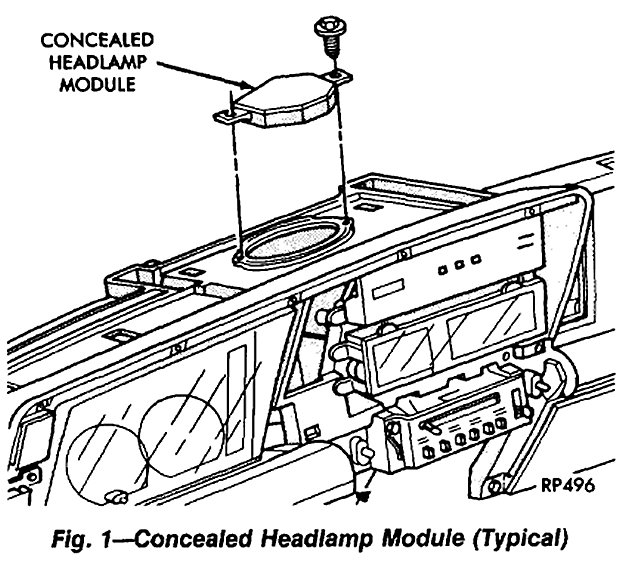

Concealed Headlamp Module
Removal
1. Remove two screws and remove module.
2. Reverse procedure to install.
