Fuel Tank System Wiring Circuit

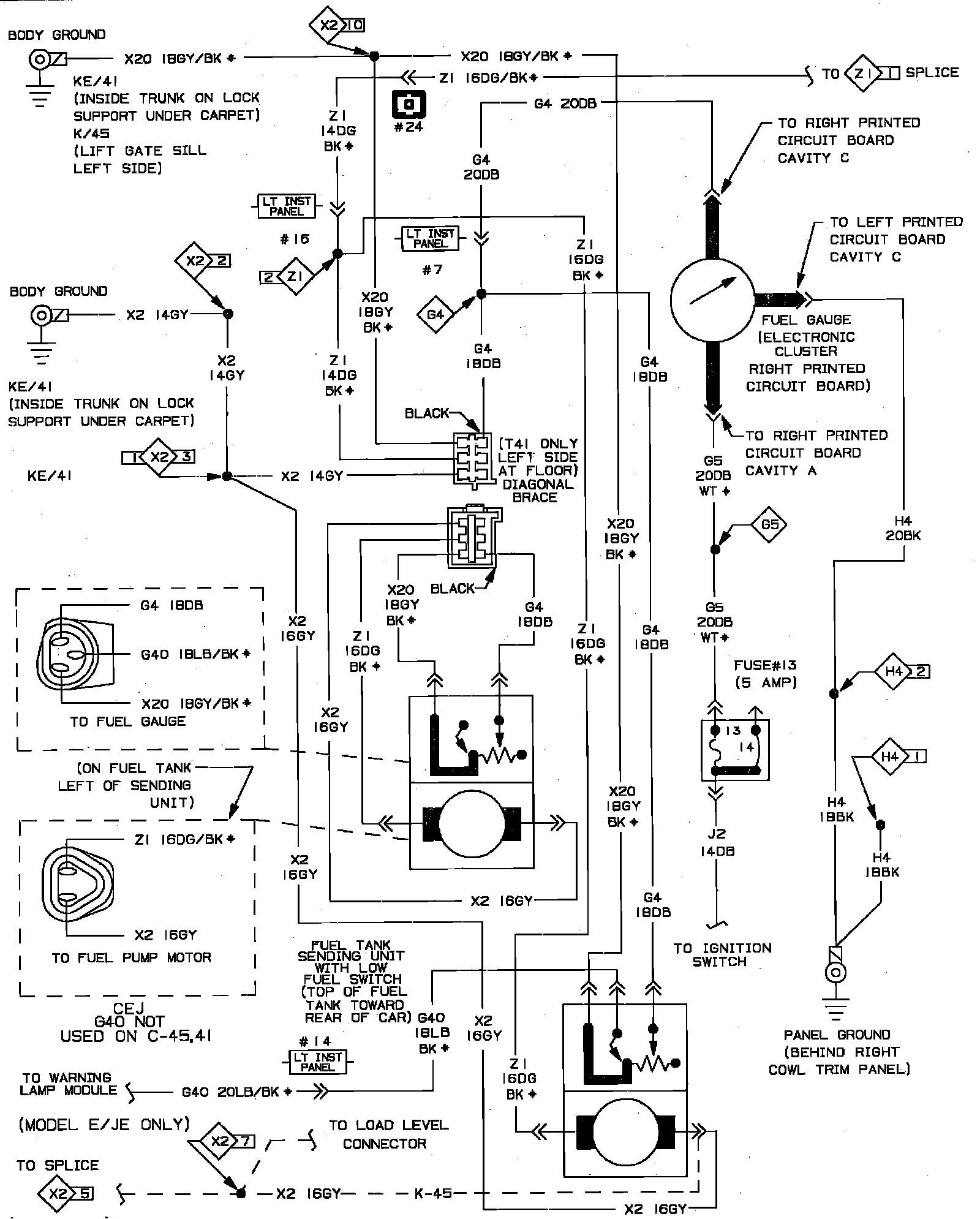

Fuel Pump Wiring Circuit:

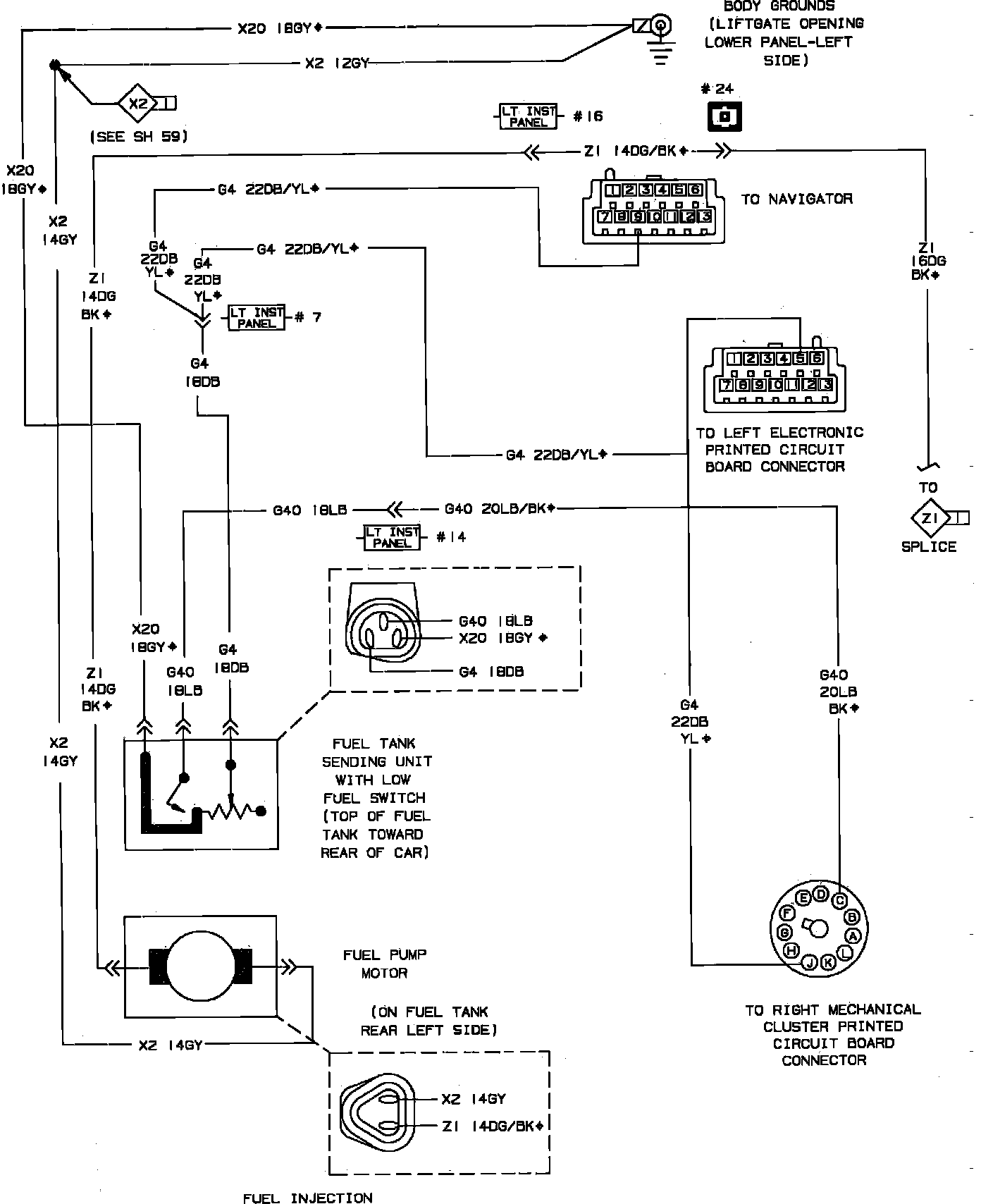

Fuel Tank System Wiring Circuit:

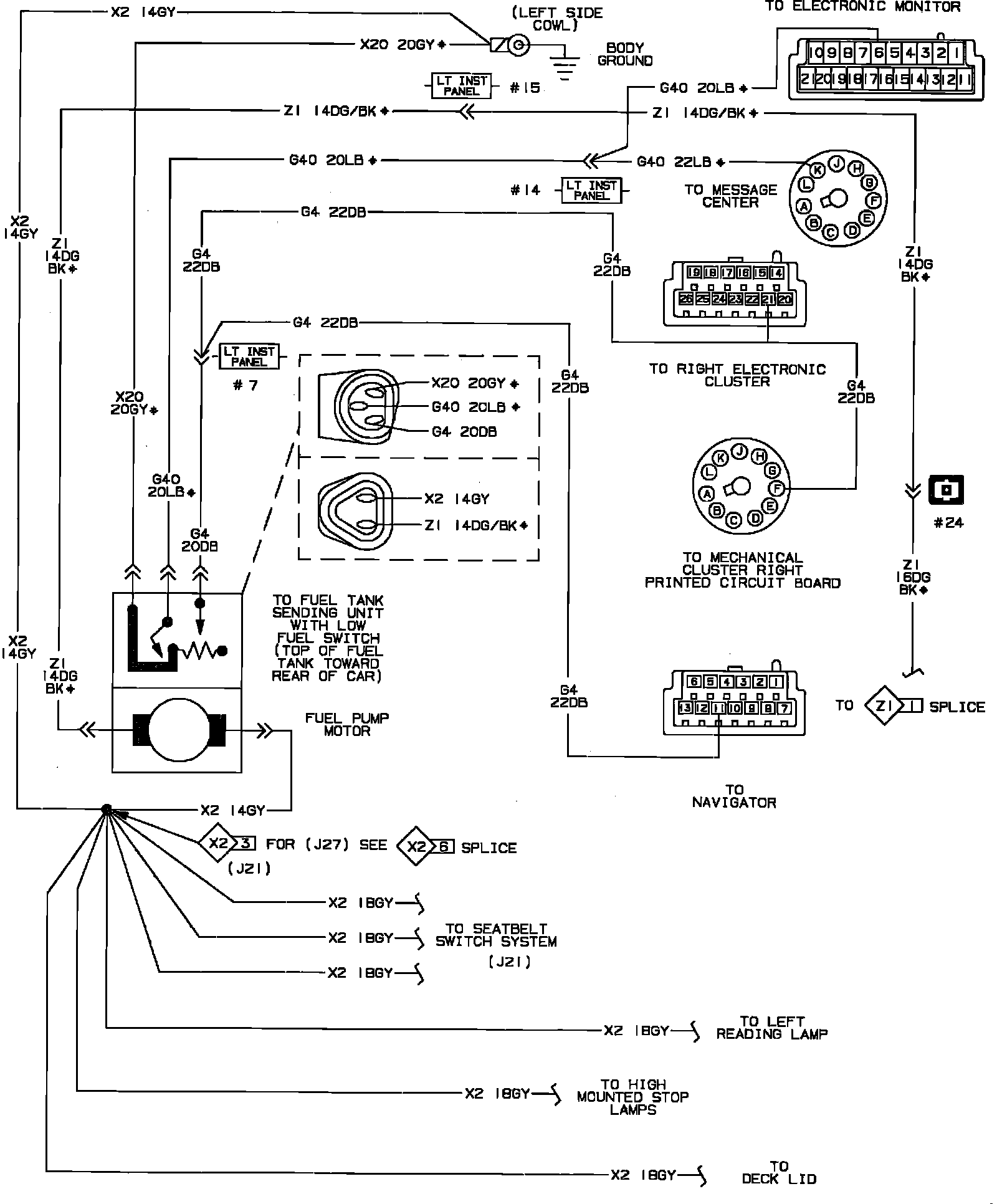

Fuel Tank System Wiring Circuit:
