Engine Compartment Components

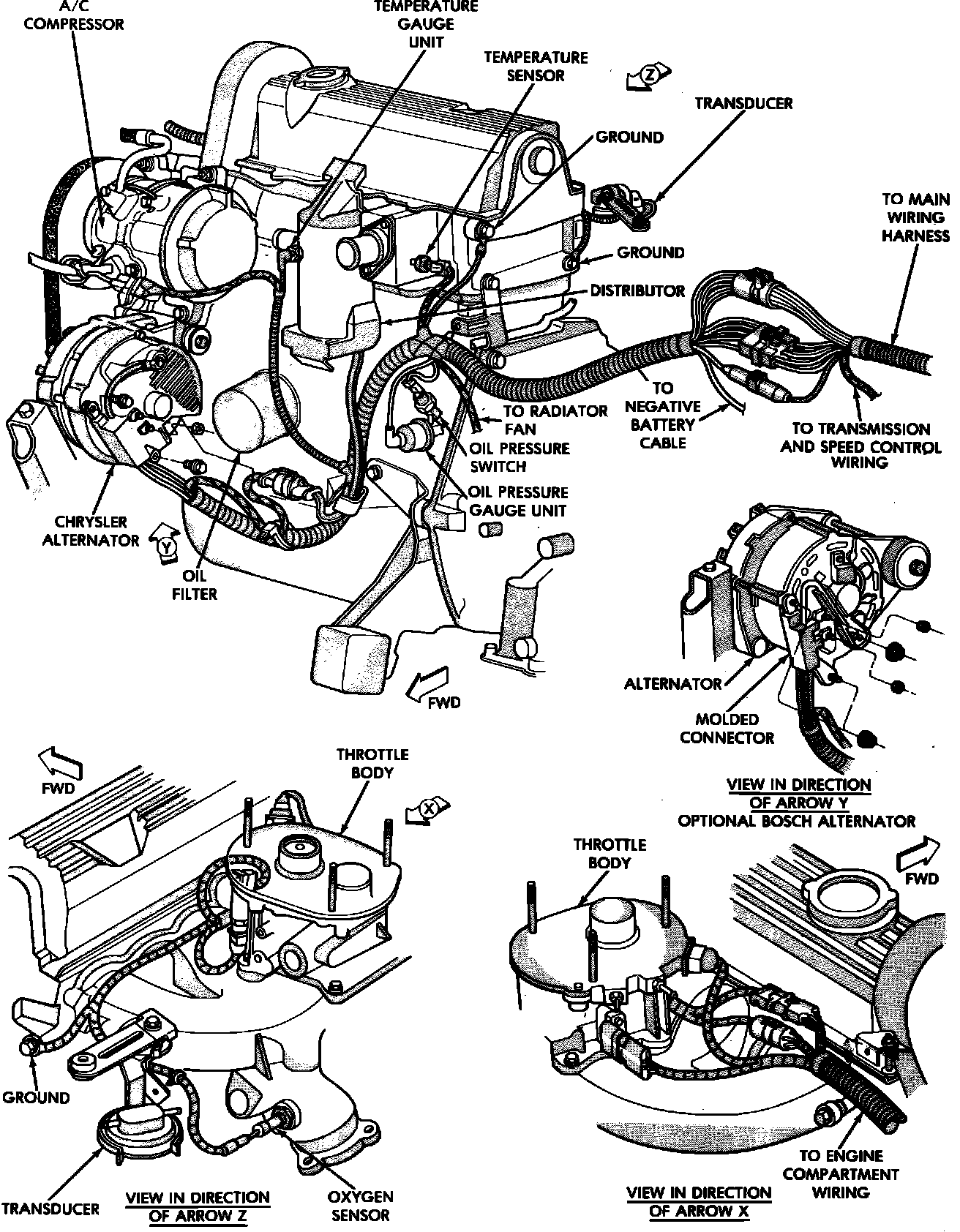

Compartment location. 4-135/2.2L & 4-153/2.5L, engine w/EFI:



Compartment location. 4 cyl. carbureted & non-turbocharged engines (Part 1 of 2):



Compartment location. 1987 - 88 4-135/2.2L turbocharged LeBaron:
