Lebaron Convertible L4-135 2.2L SOHC Turbo VIN E FI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Diagrams
>>
Vacuum and Vapor Hose Diagrams
Vacuum and Vapor Hose Diagrams

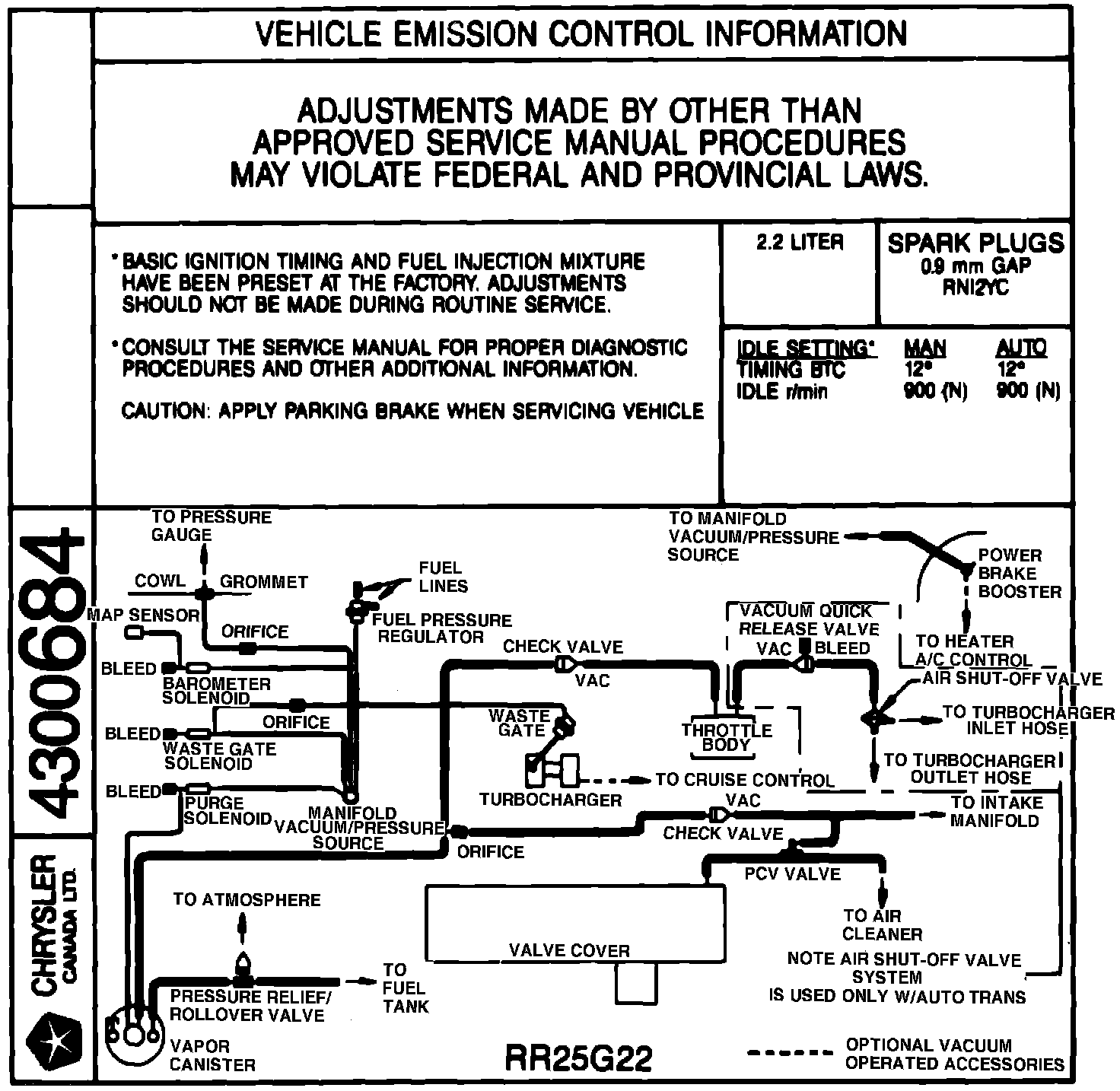

Fig. 3 Vacuum Hose Routing. 1988 Turbo I Models:

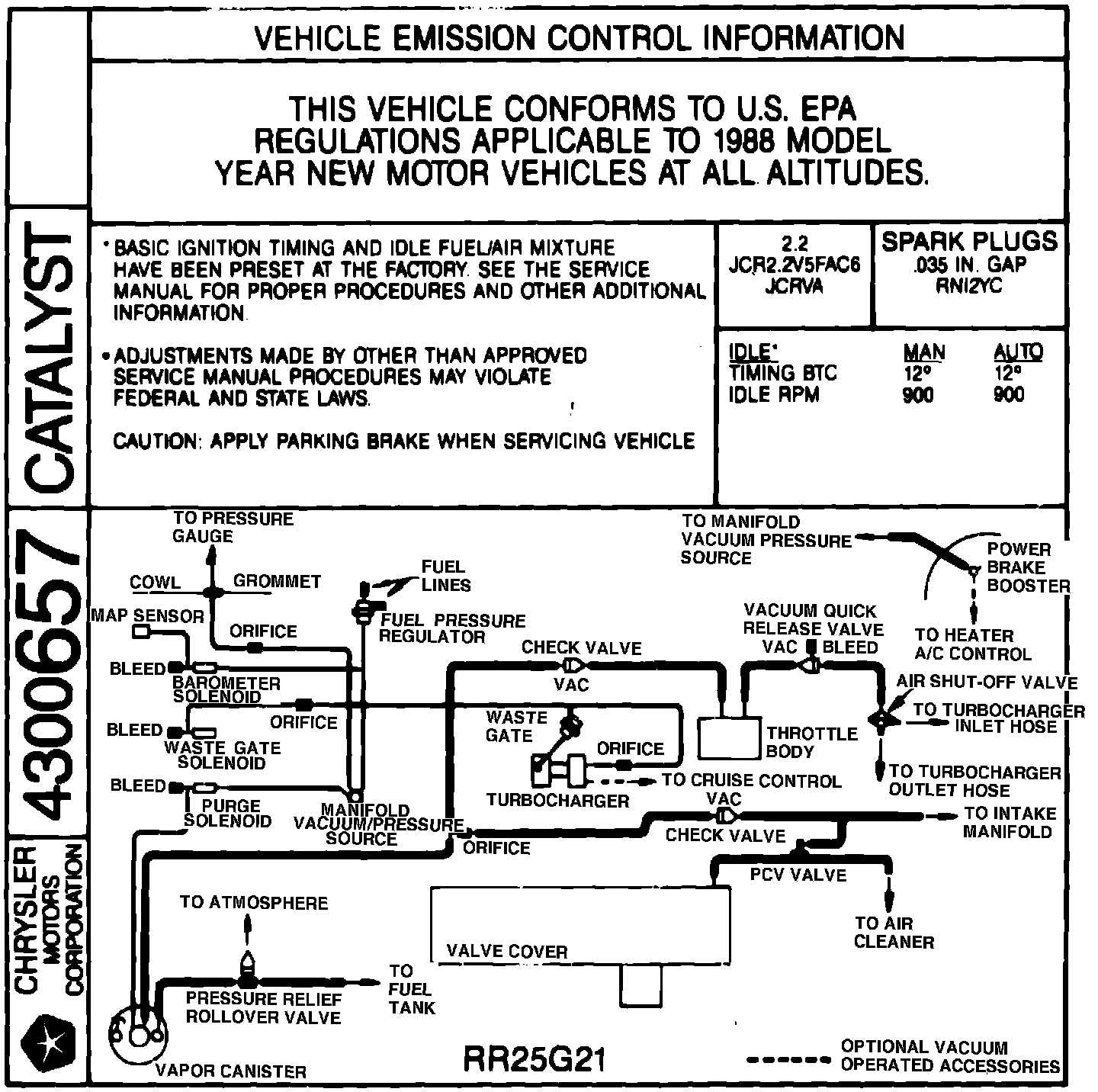

Fig. 4 Vacuum Hose Routing. 1988 Turbo II Models:
