Left Side Body Splices

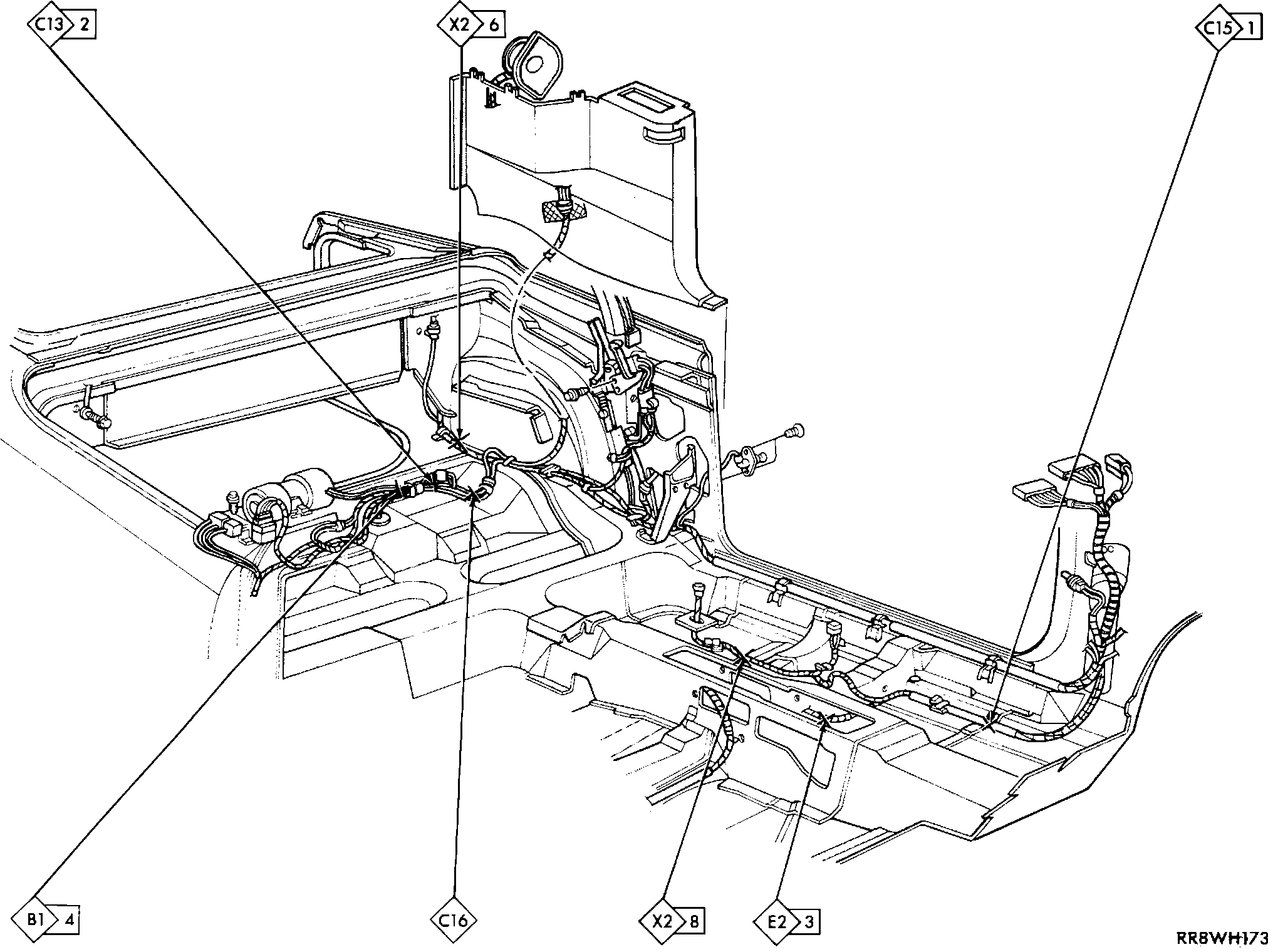

Left Side Body Splice Locations:

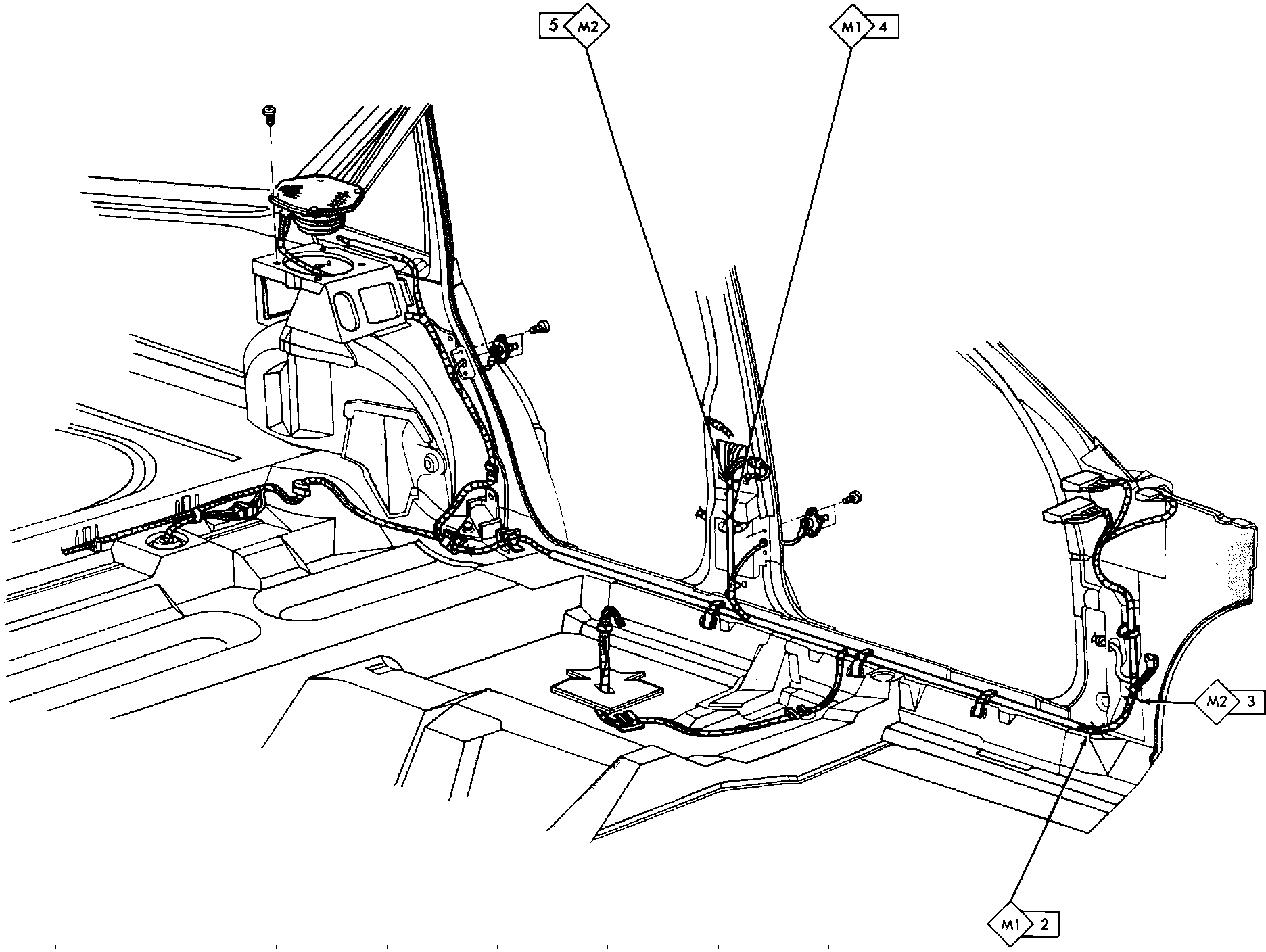

Left Side Body Splice Locations, Convertible:
