Courtesy Lamps

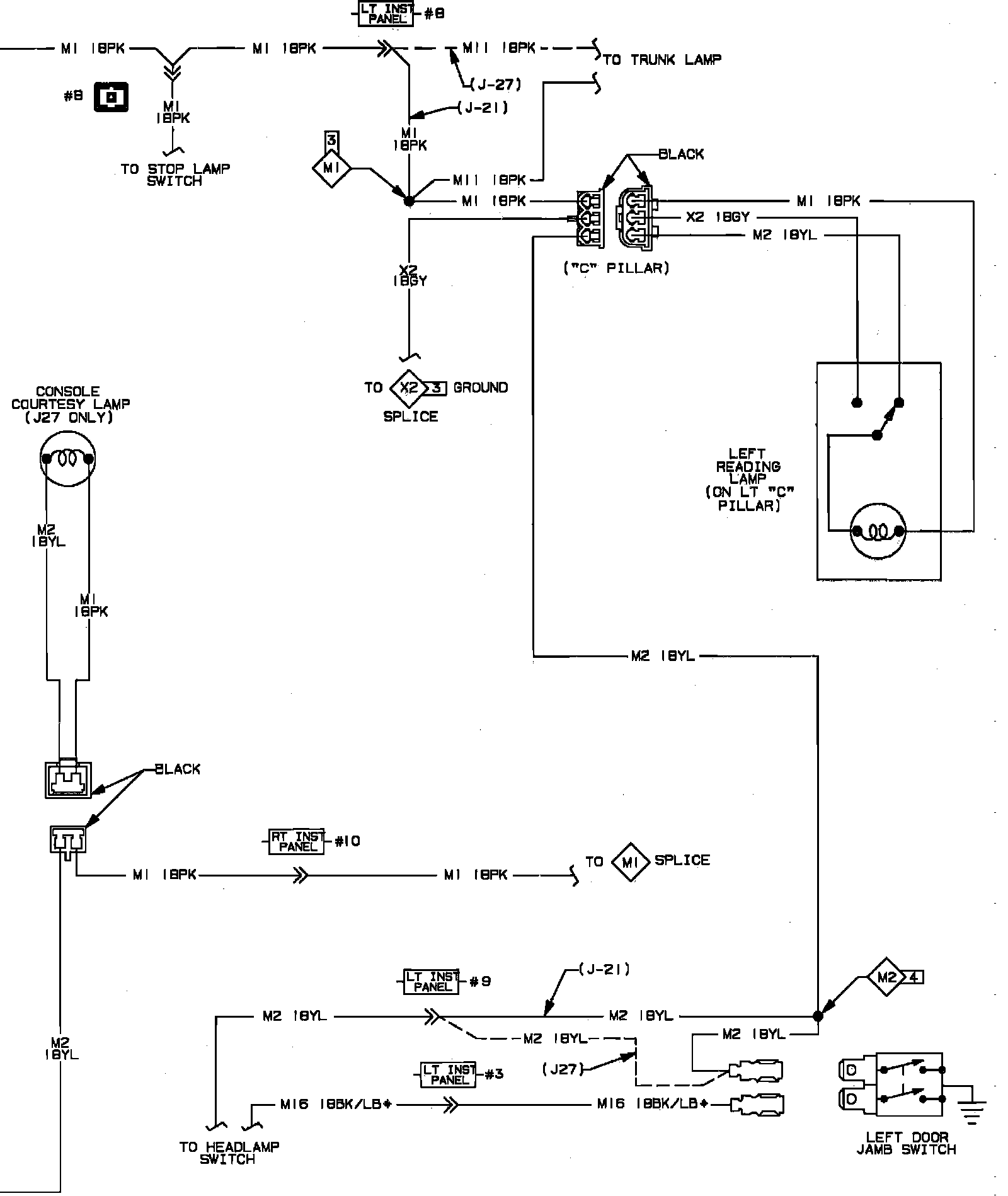

Fig. 24 Courtesy & Dome Lamp Wiring Circuit (Part 2 of 2):

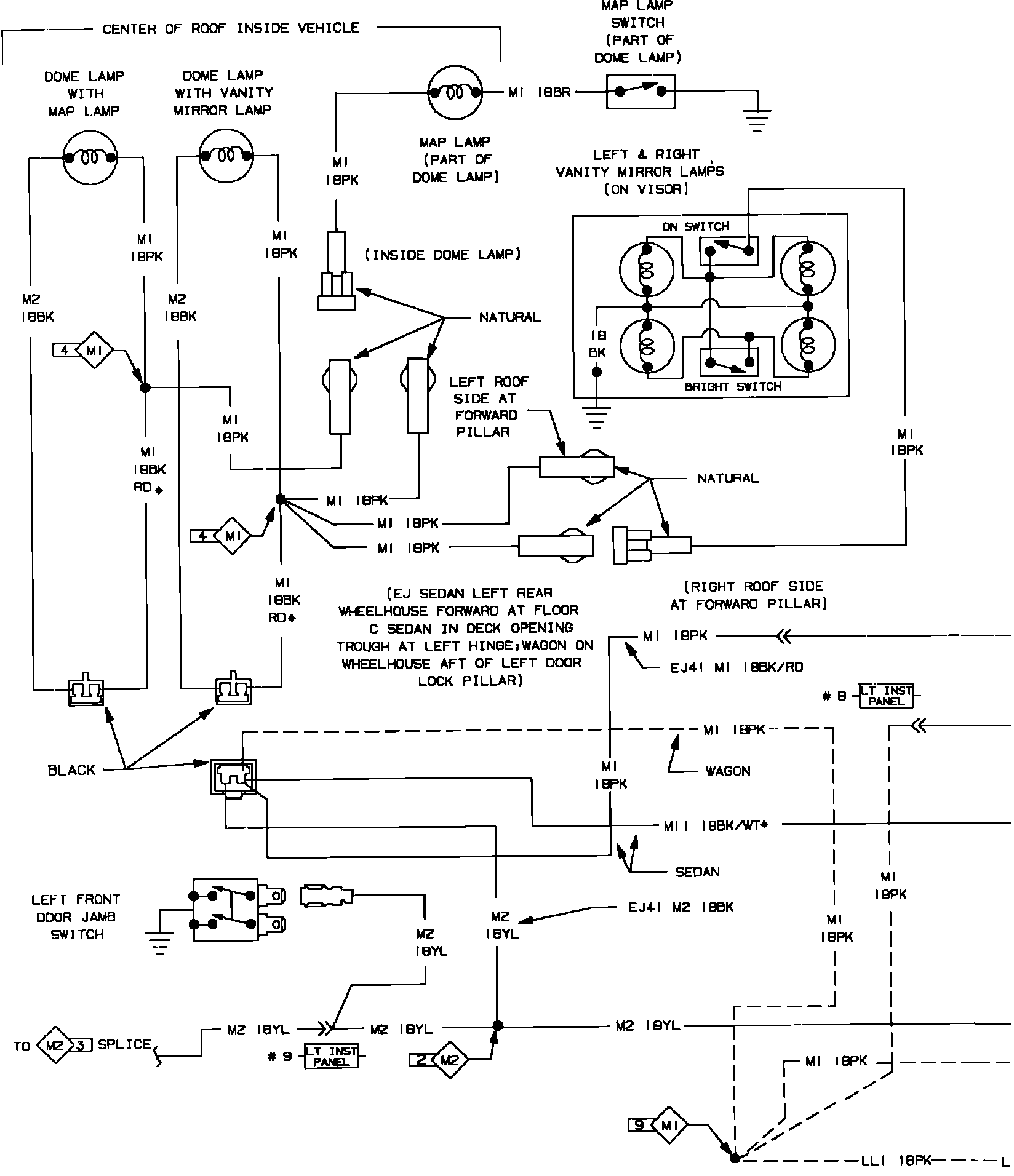

Courtesy, Dome & Reading Lamps Wiring Circuit (Part 1 Of 2):

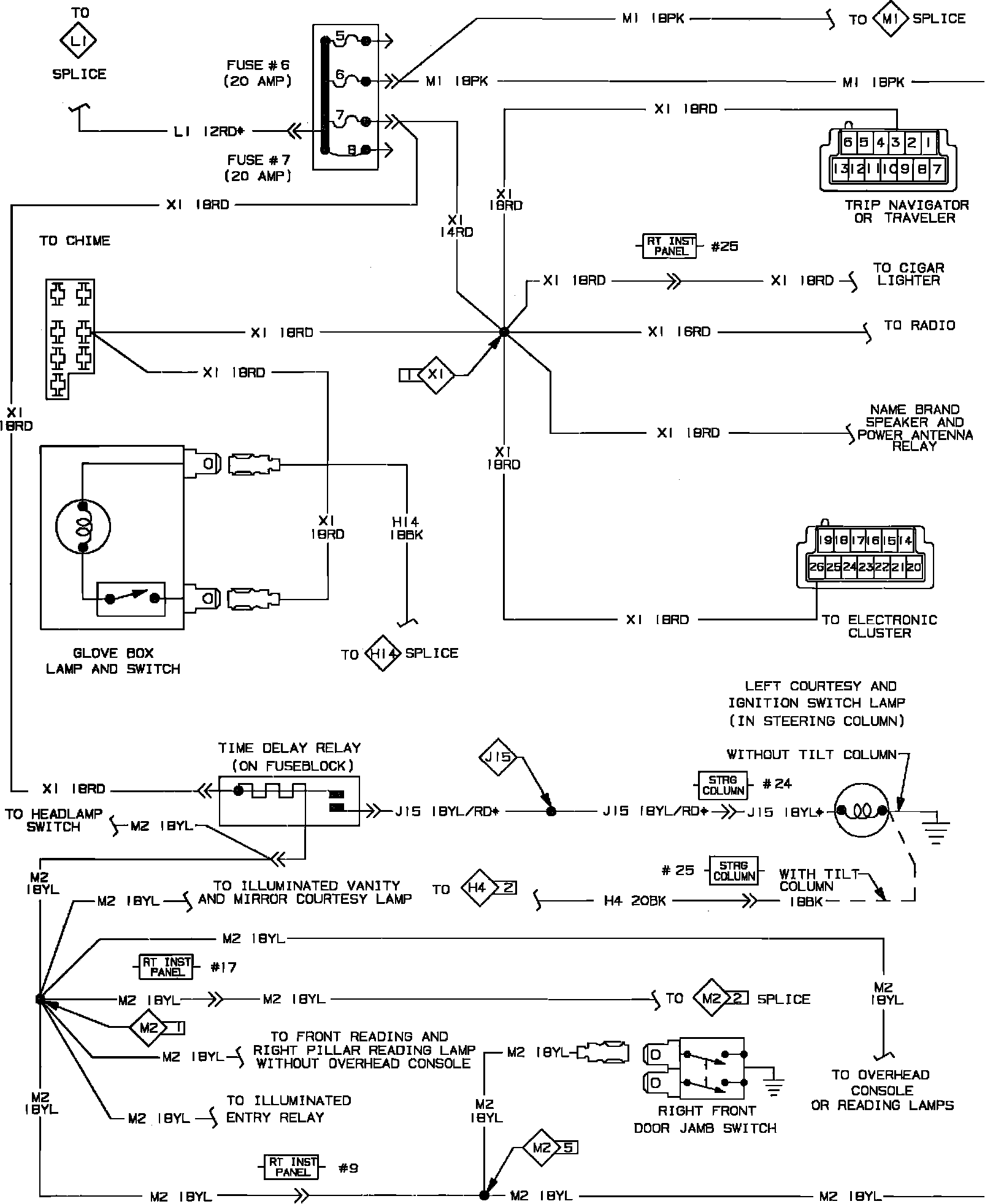

Courtesy, Dome & Reading Lamps Wiring Circuit (Part 2 Of 2):

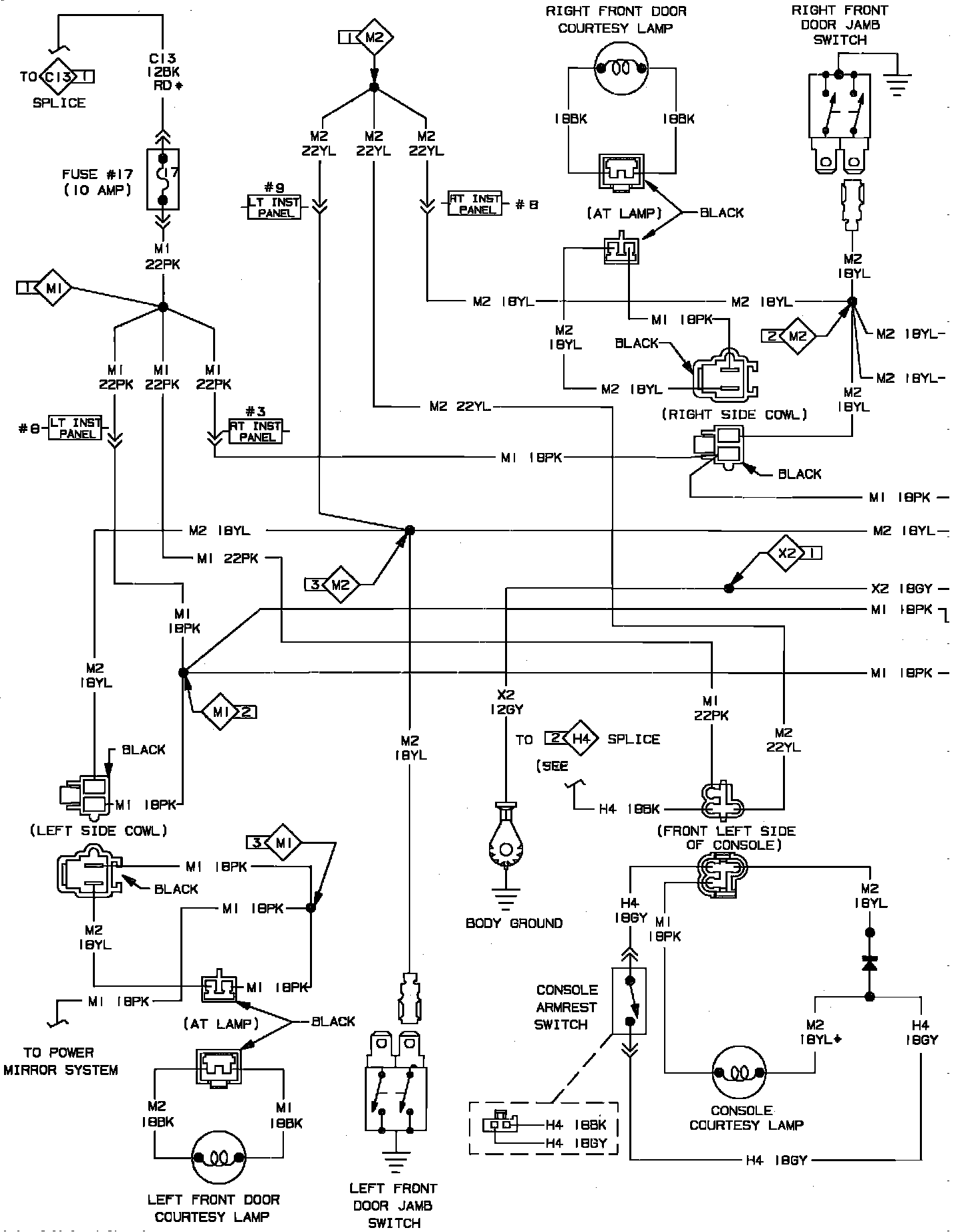

Courtesy Lamp Wiring Circuit (Part 1 of 2):

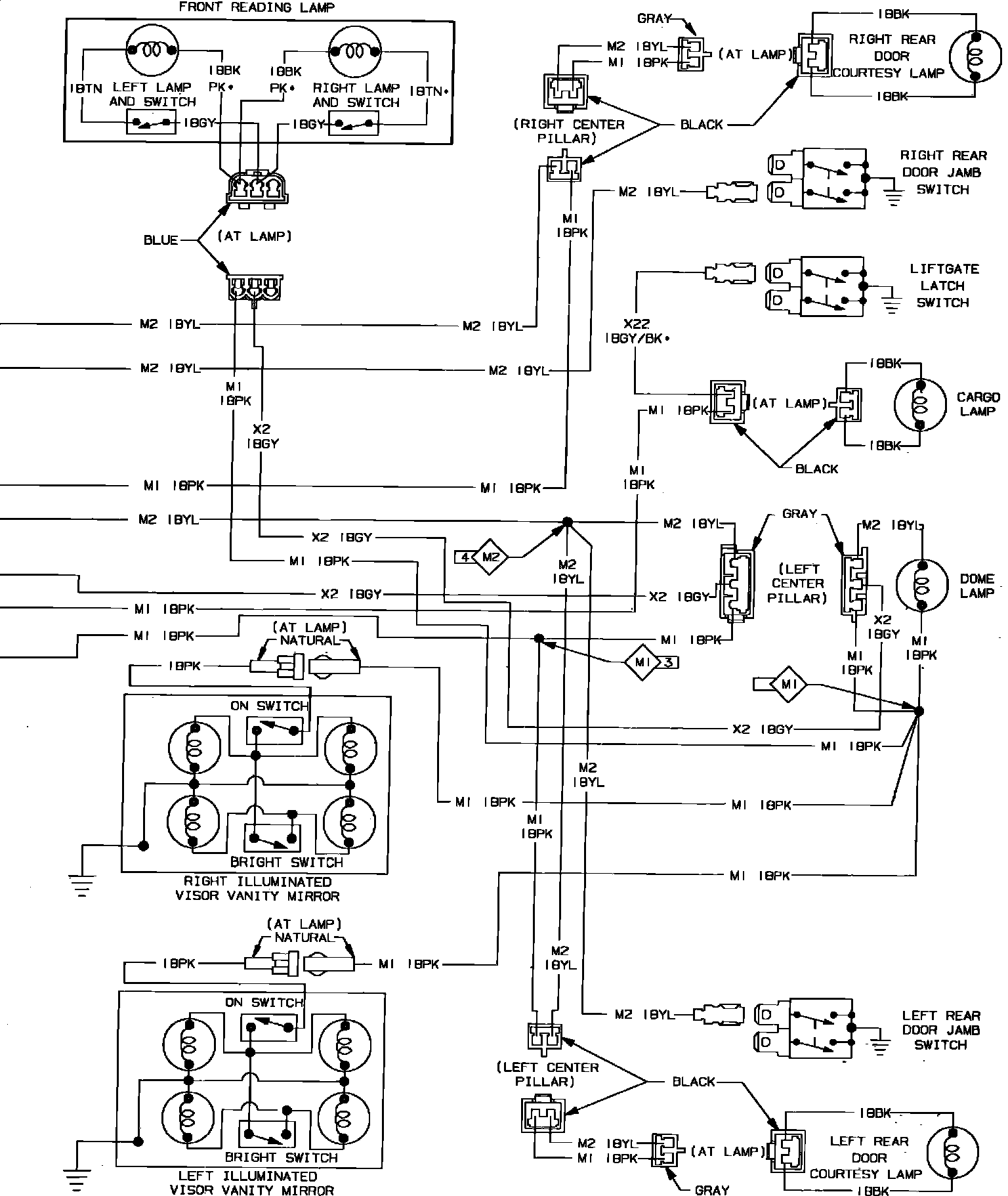

e�ICourtesy & Dome Lamps Wiring Circuit:
