Harness

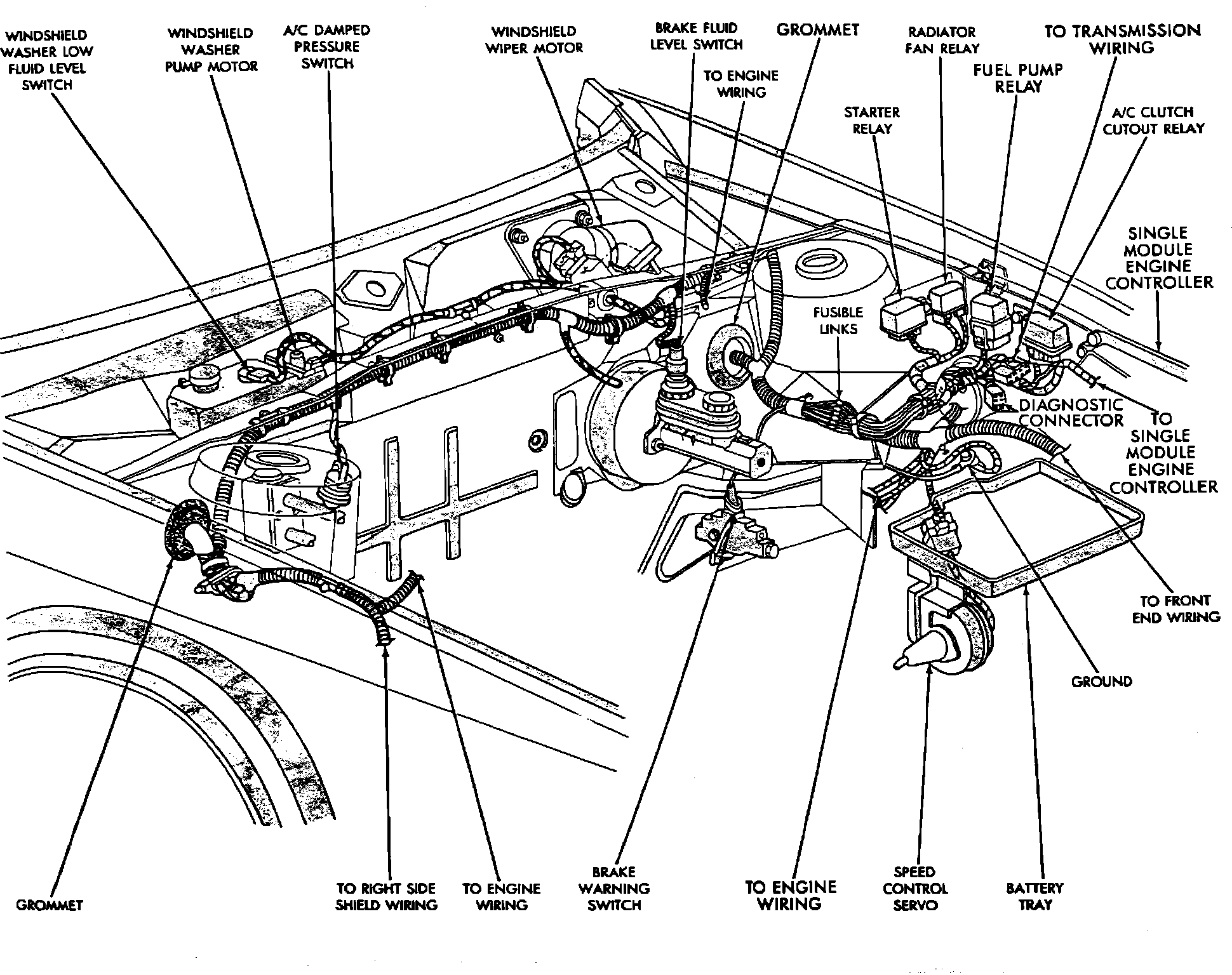

Engine Compartment & Transmission Components:

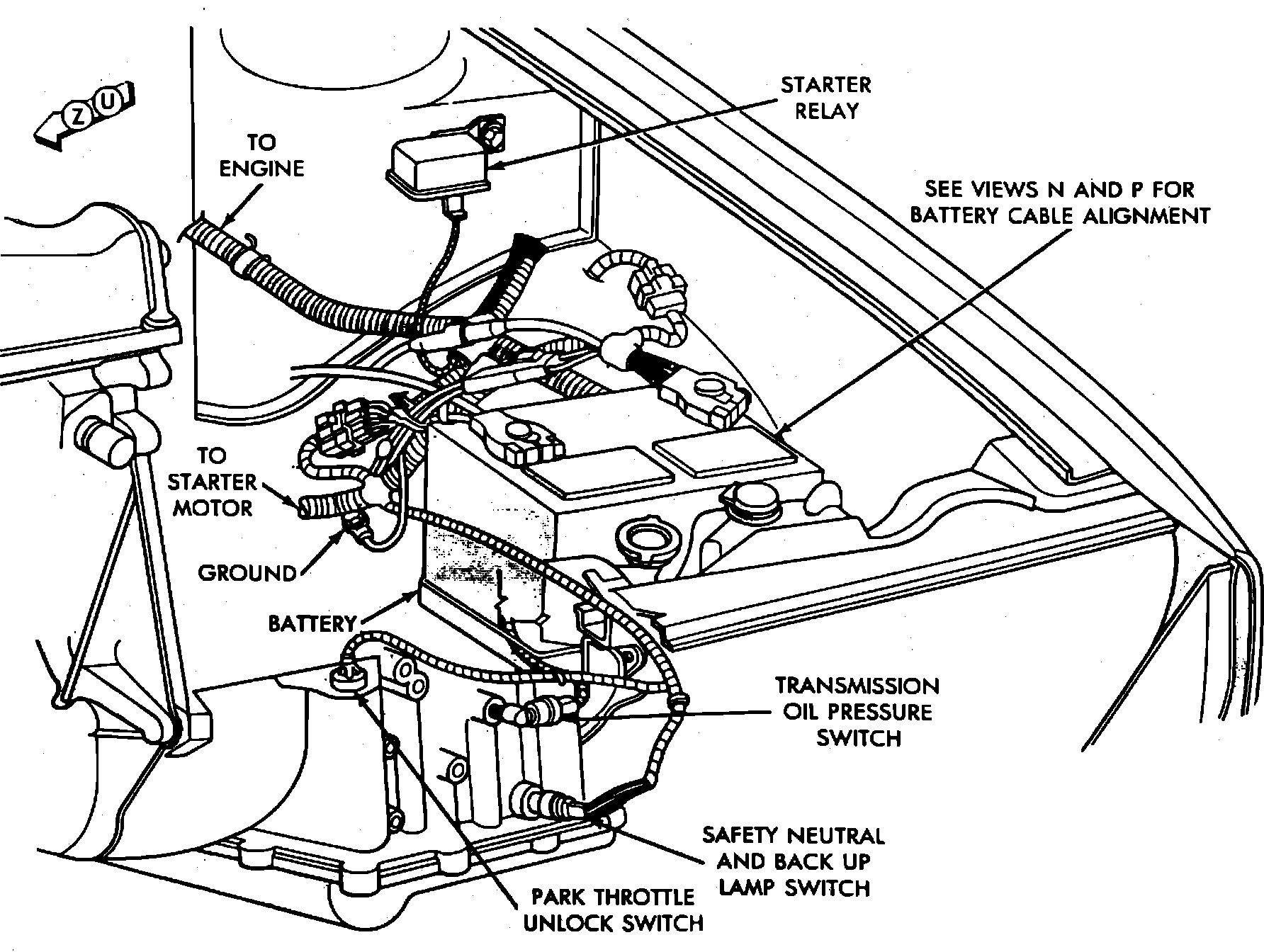

Engine Compartment & Transmission Components:




Front End & Engine Compartment Components:
