Timer/Control Unit, Accessory Control
Timer/Control Unit, Accessory Control

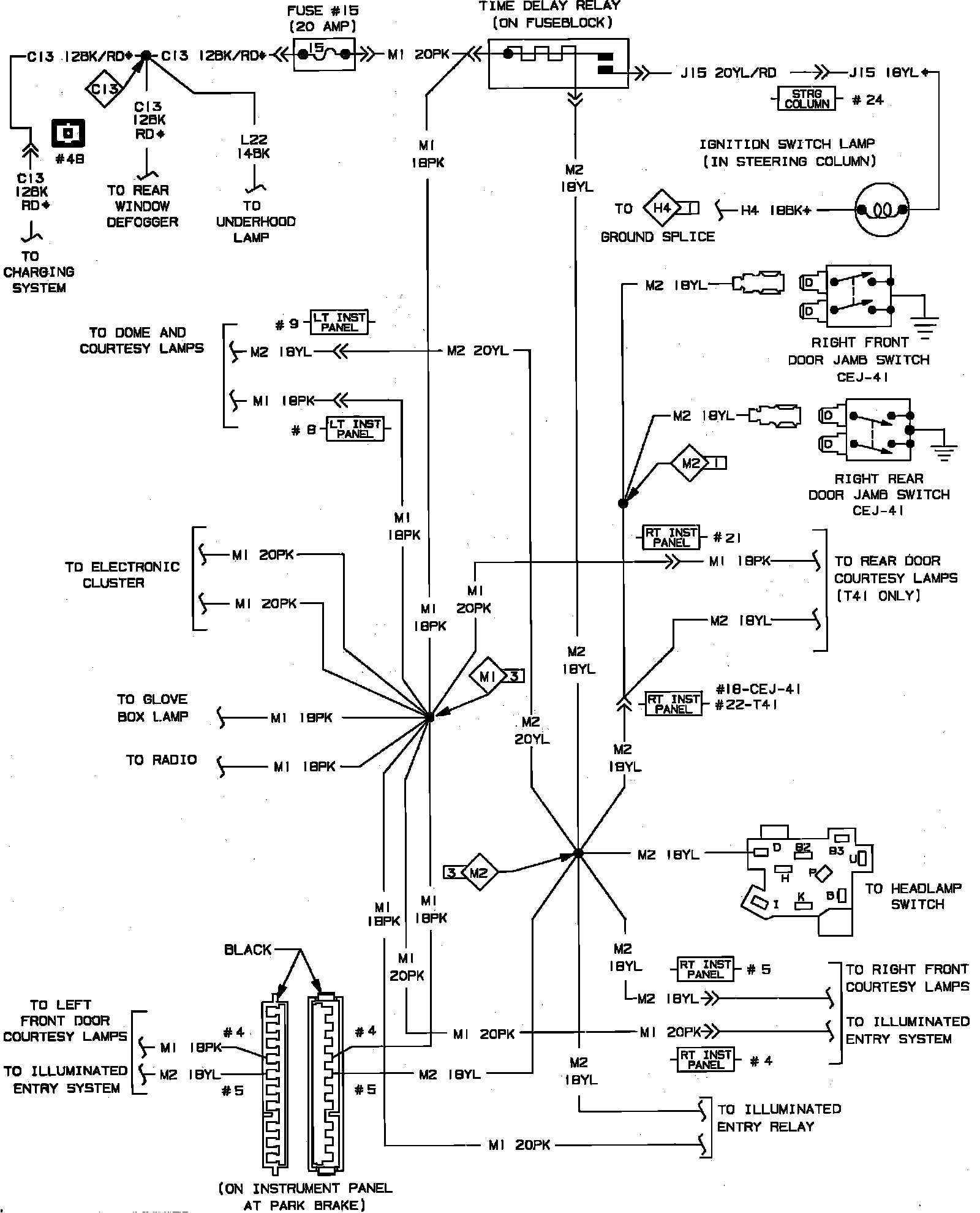

Time Delay Relay System Wiring Circuit:
