System Diagram

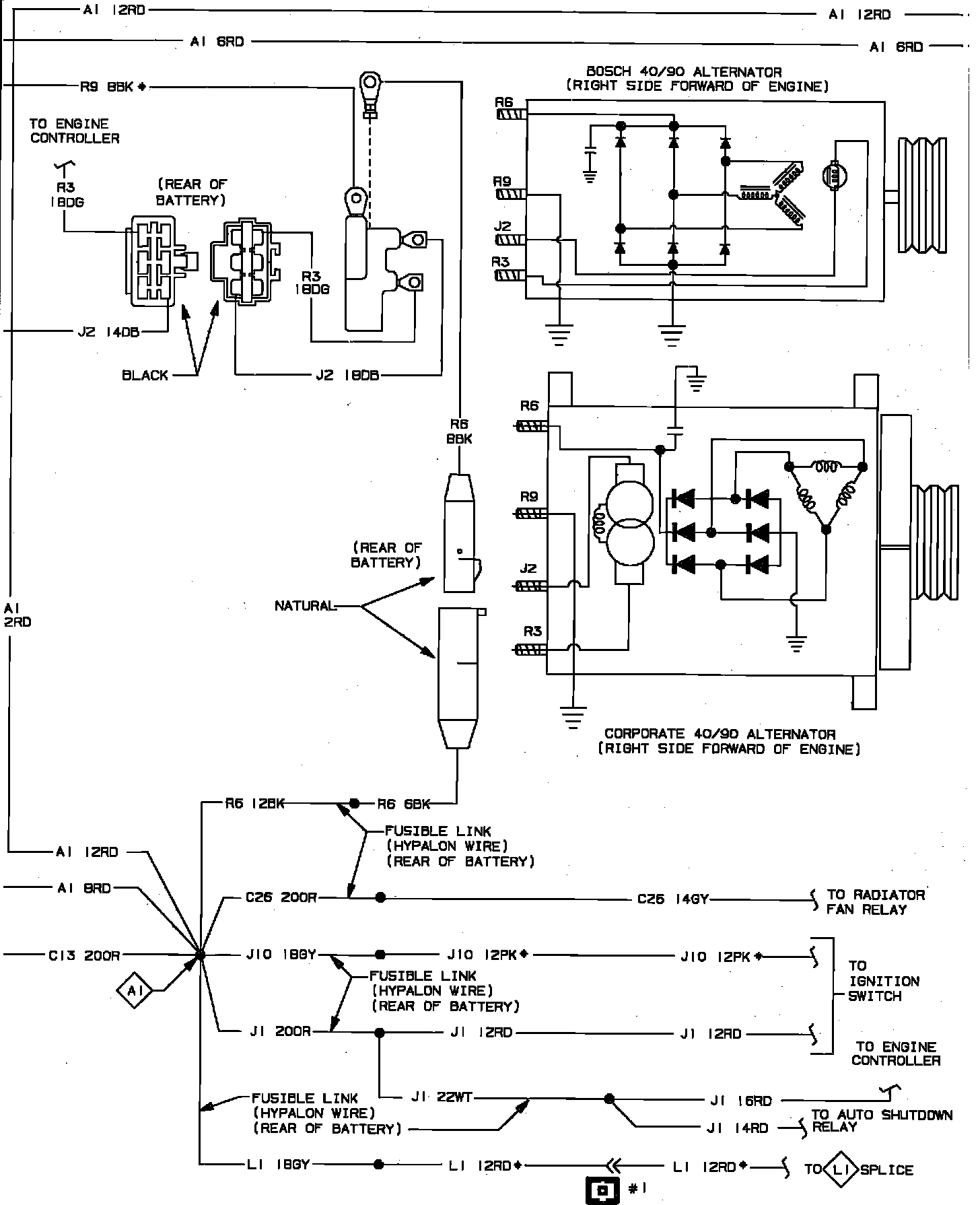

Charging System Wiring Circuit (Part 1 Of 2):

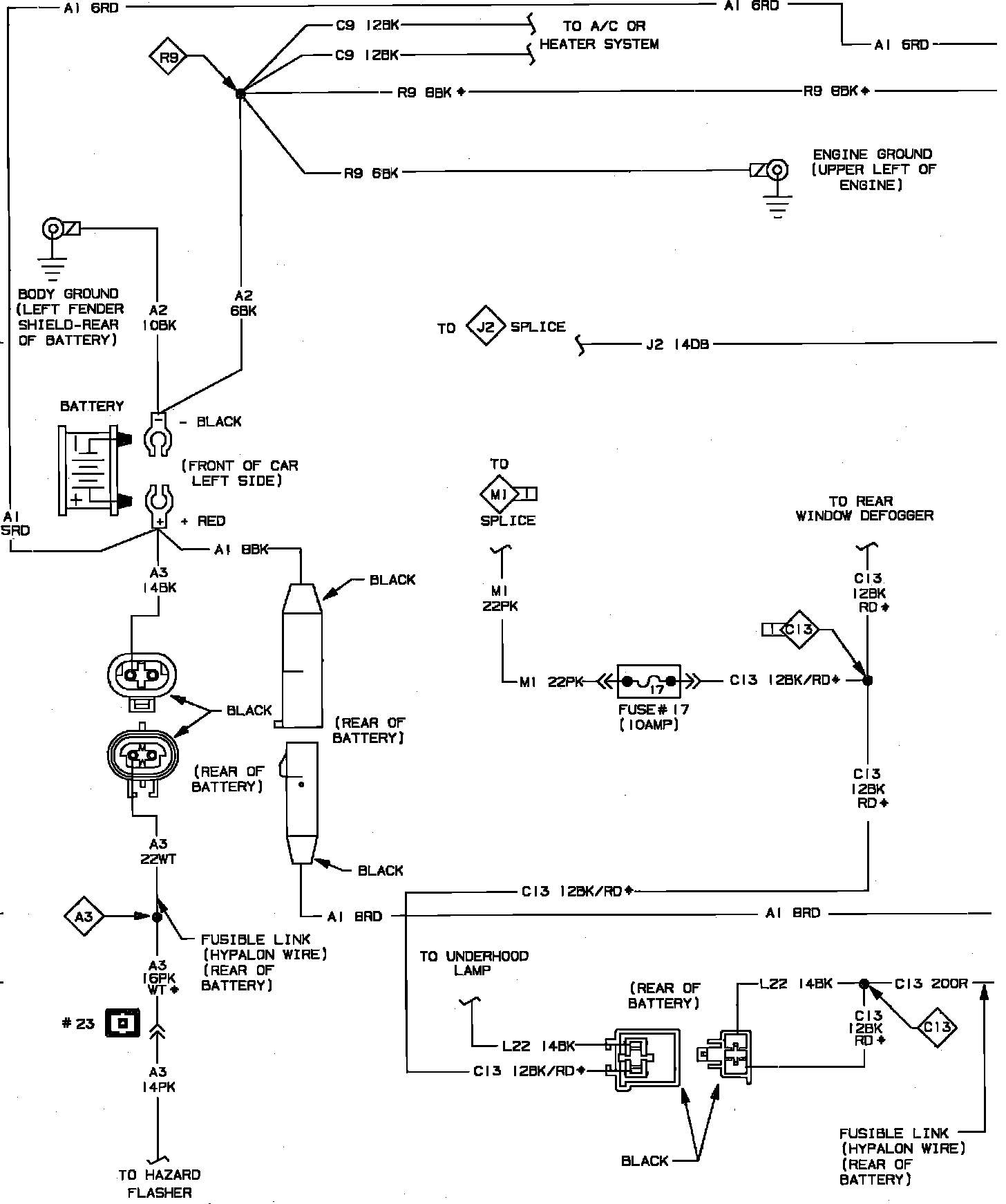

Charging System Wiring Circuit (Part 2 Of 2):

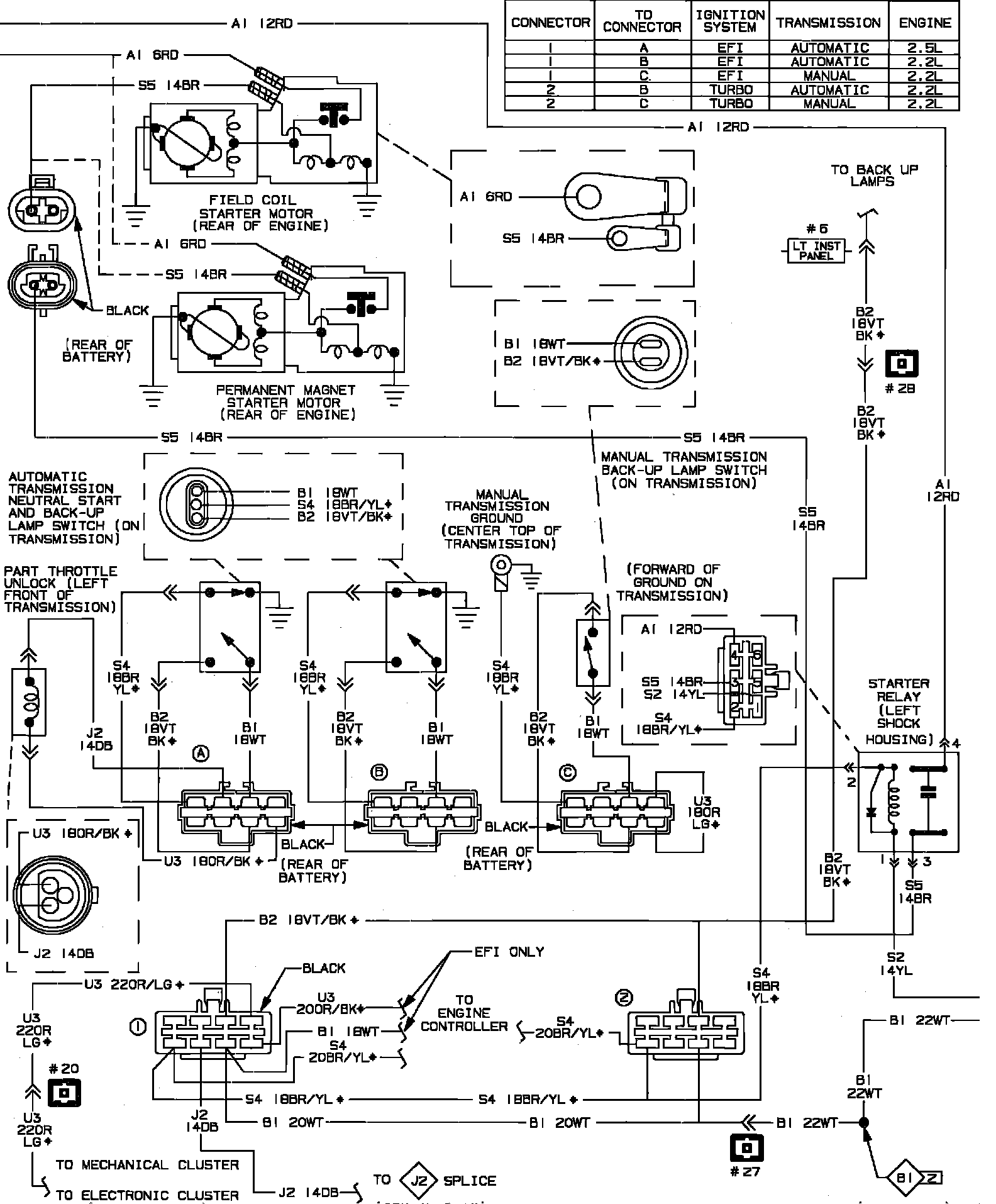

Starter System & Ignition Switch Wiring Circuit (Part 1 Of 2):

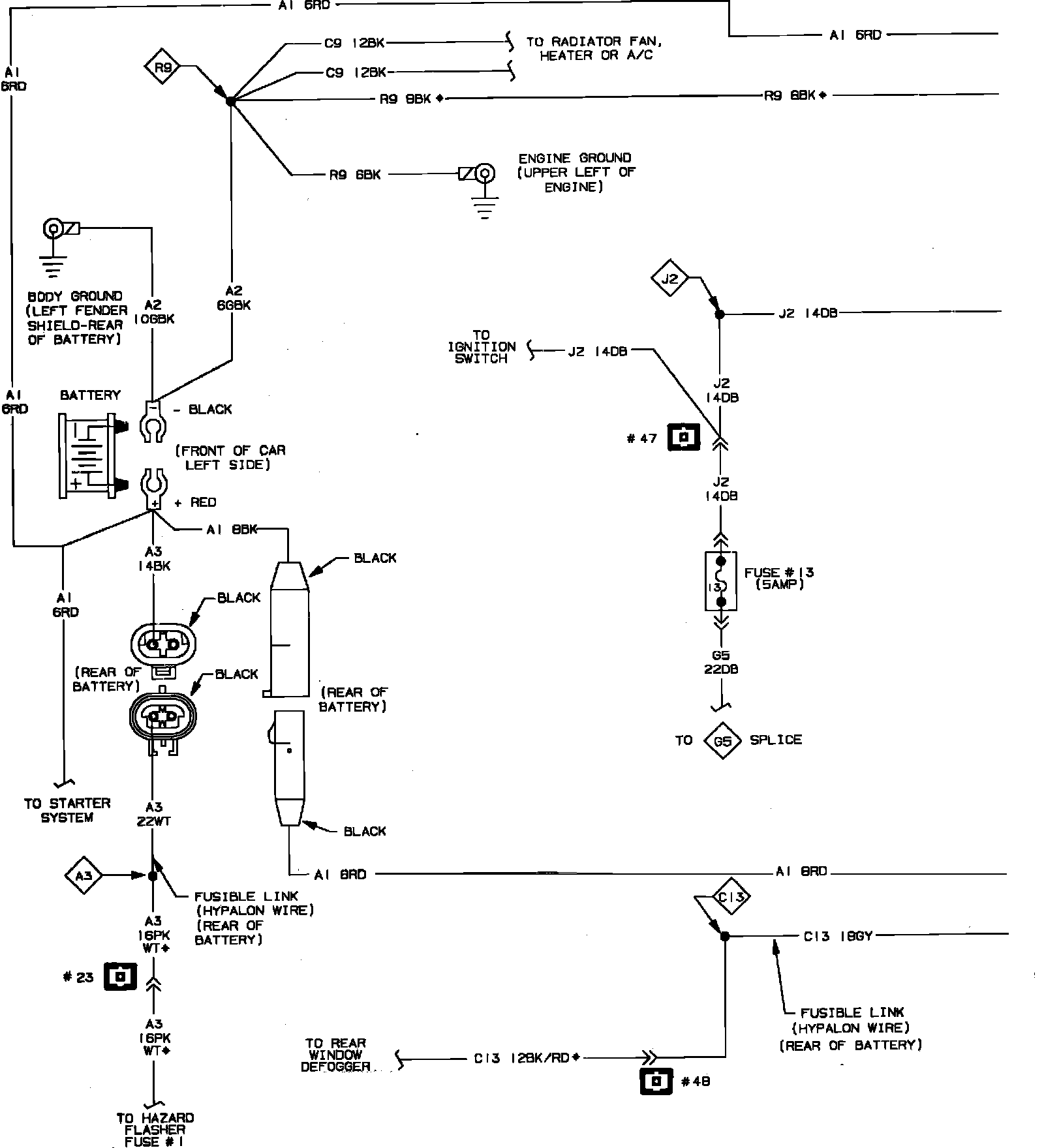

Starter System & Ignition Switch Wiring Circuit (Part 2 Of 2):

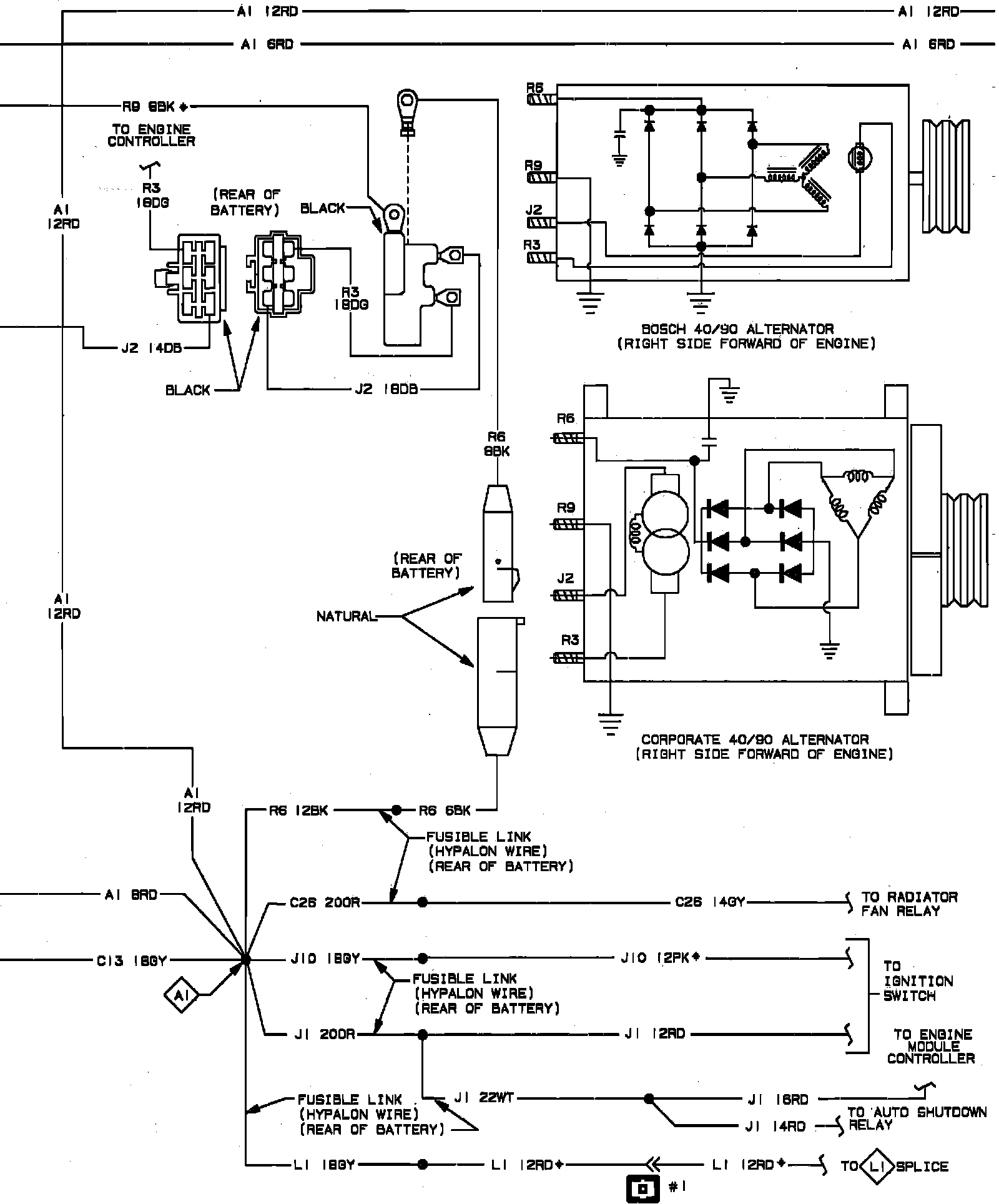

Charging System Wiring Circuit (Part 1 of 2):

Charging System Wiring Circuit (Part 2 of 2):

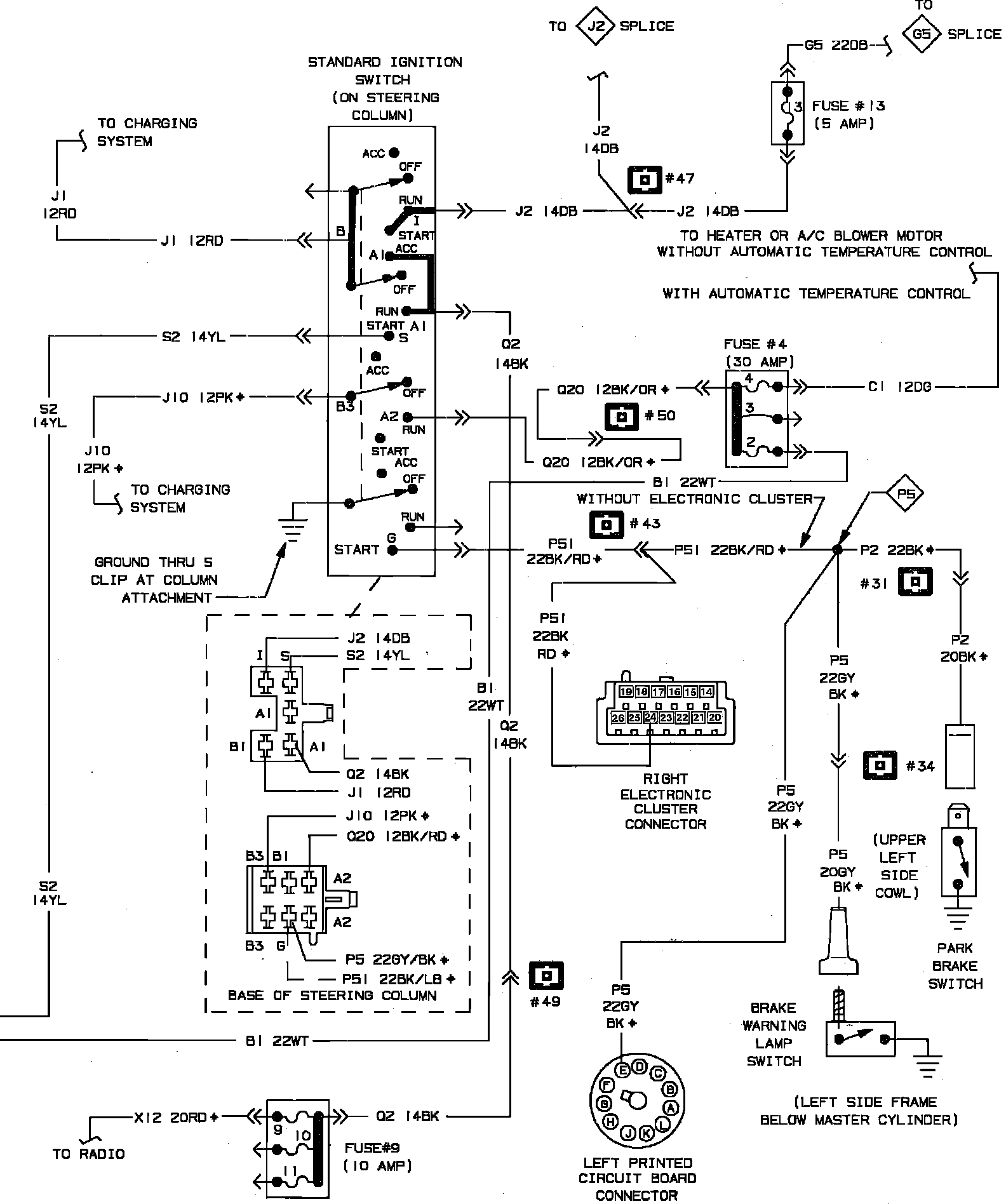

xy^0��^0��^0Charging System, Ignition Switch & Starter System Wiring Circuit:
