Rear Speakers

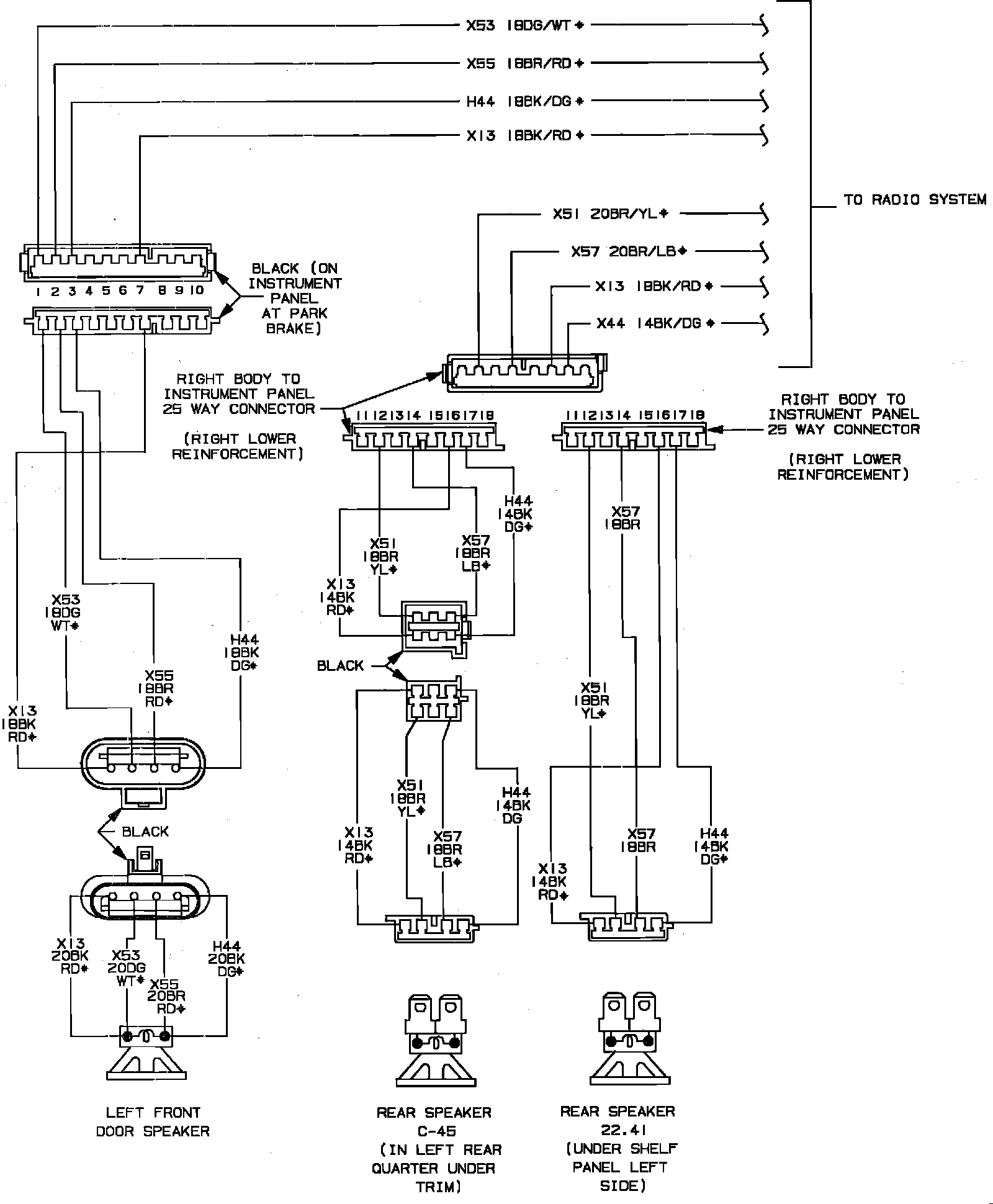

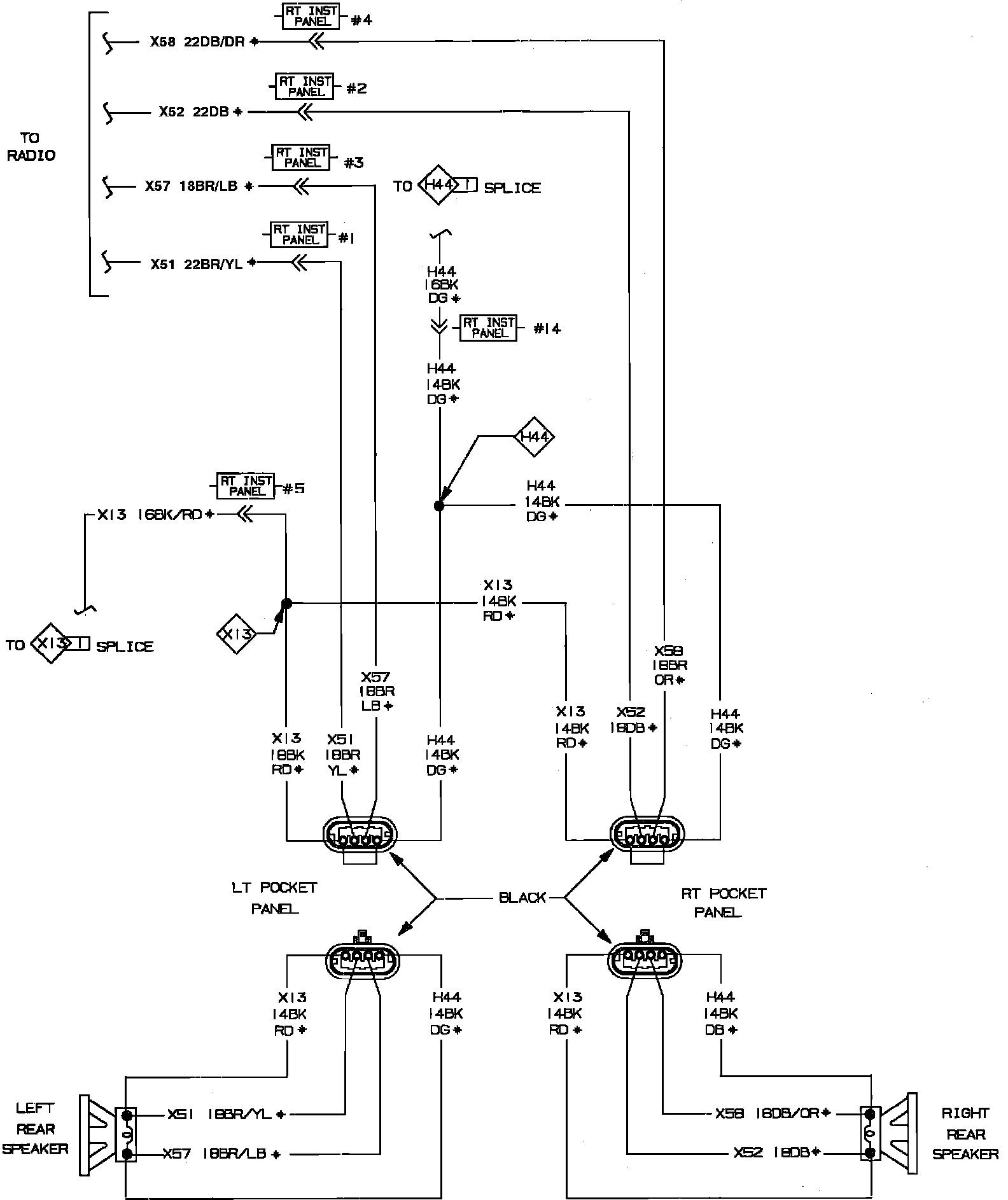

Radio Door & Rear Speaker System Wiring Circuit:

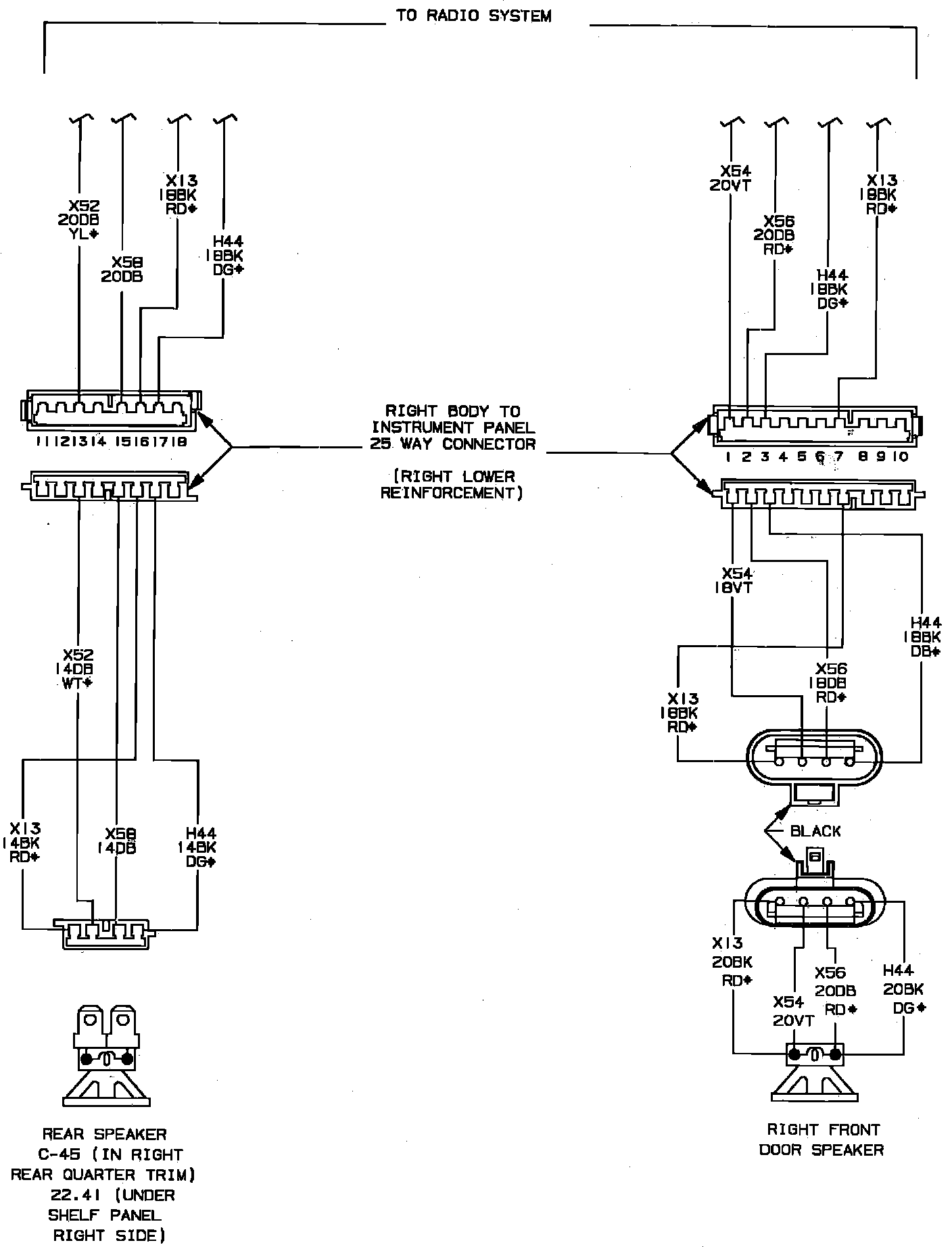

Radio Door & Rear Speaker System Wiring Circuit:
