Home >> Chrysler >> 1988 >> Lebaron Convertible L4-135 2.2L SOHC Turbo VIN E FI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Radio/Stereo >> With Brand Name Speakers

With Brand Name Speakers

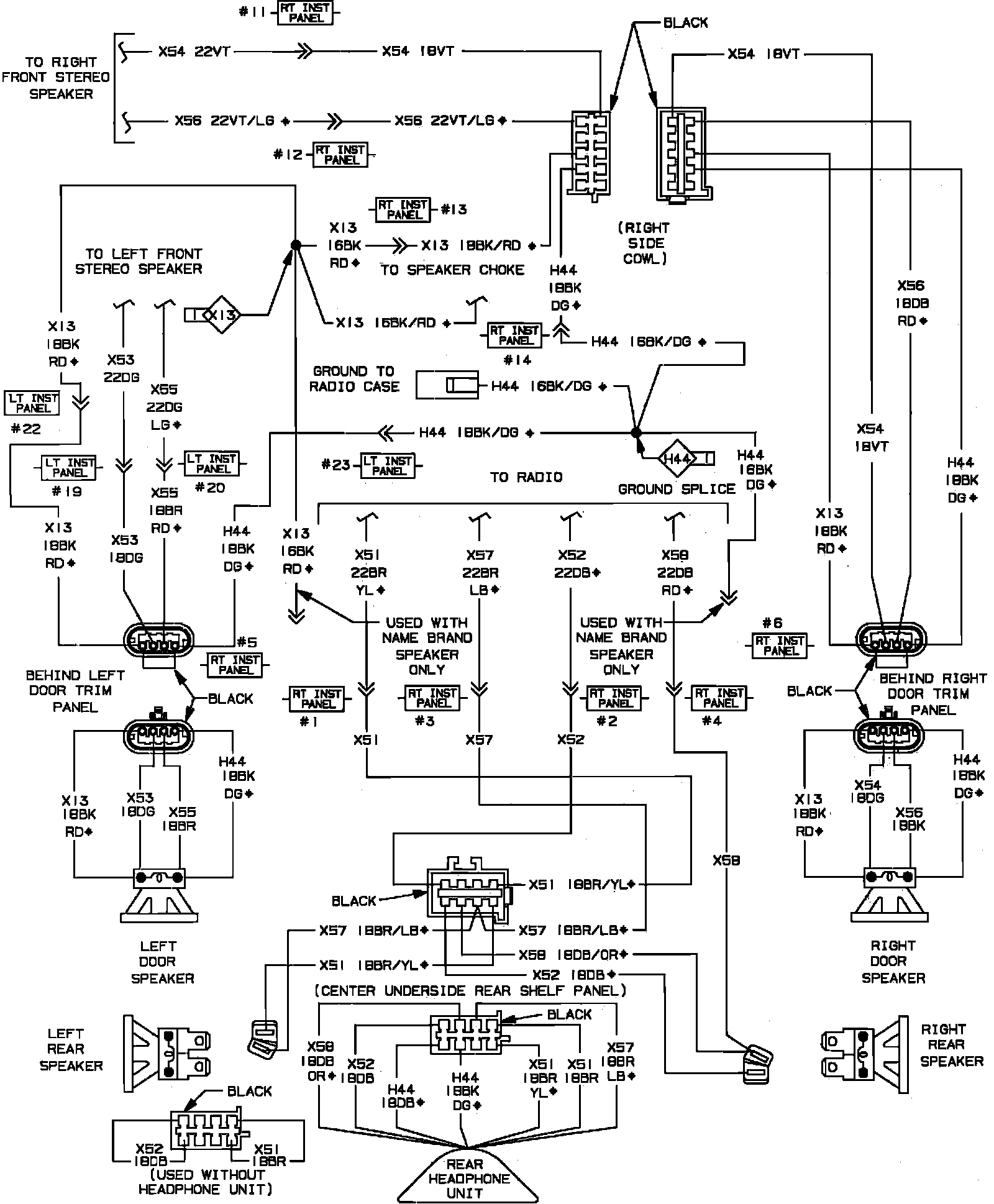

Front Door & Speakers Wiring Circuit. Less Name Brand Speakers:



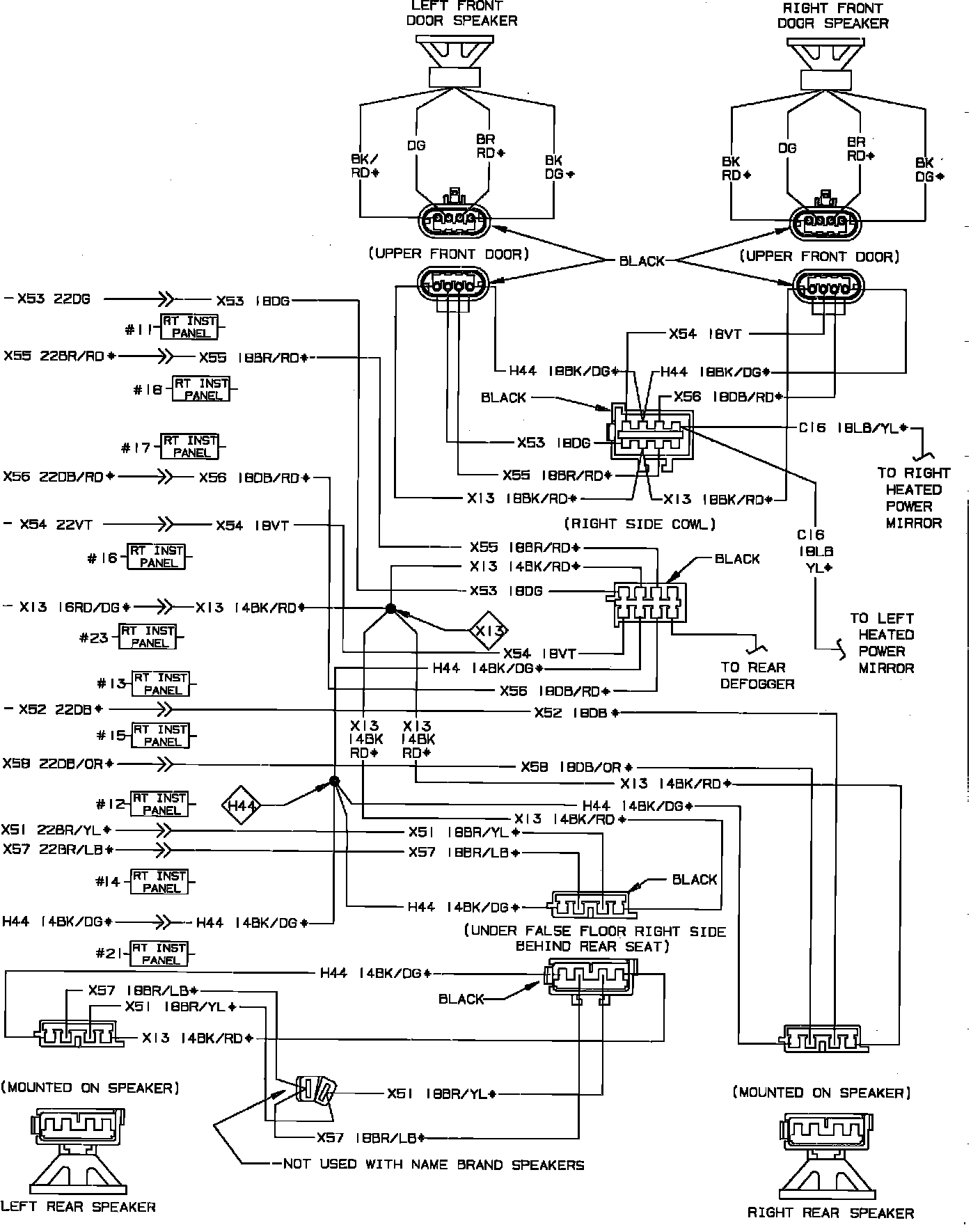

Radio Wiring Circuit, With Brand Name Speakers (Part 1 of 2):

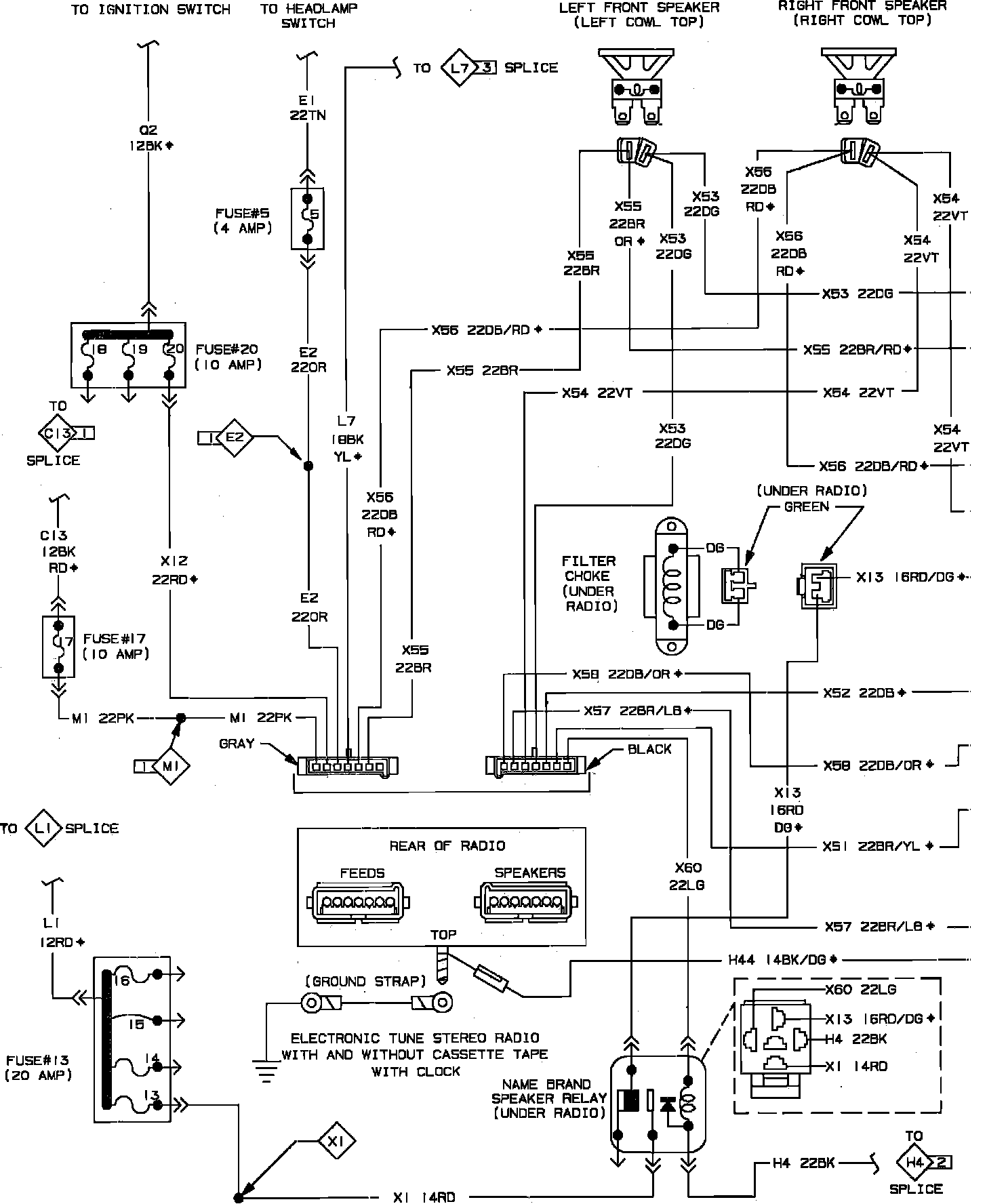

Radio Wiring Circuit, With Brand Name Speakers (Part 2 of 2):
