Interior Lighting

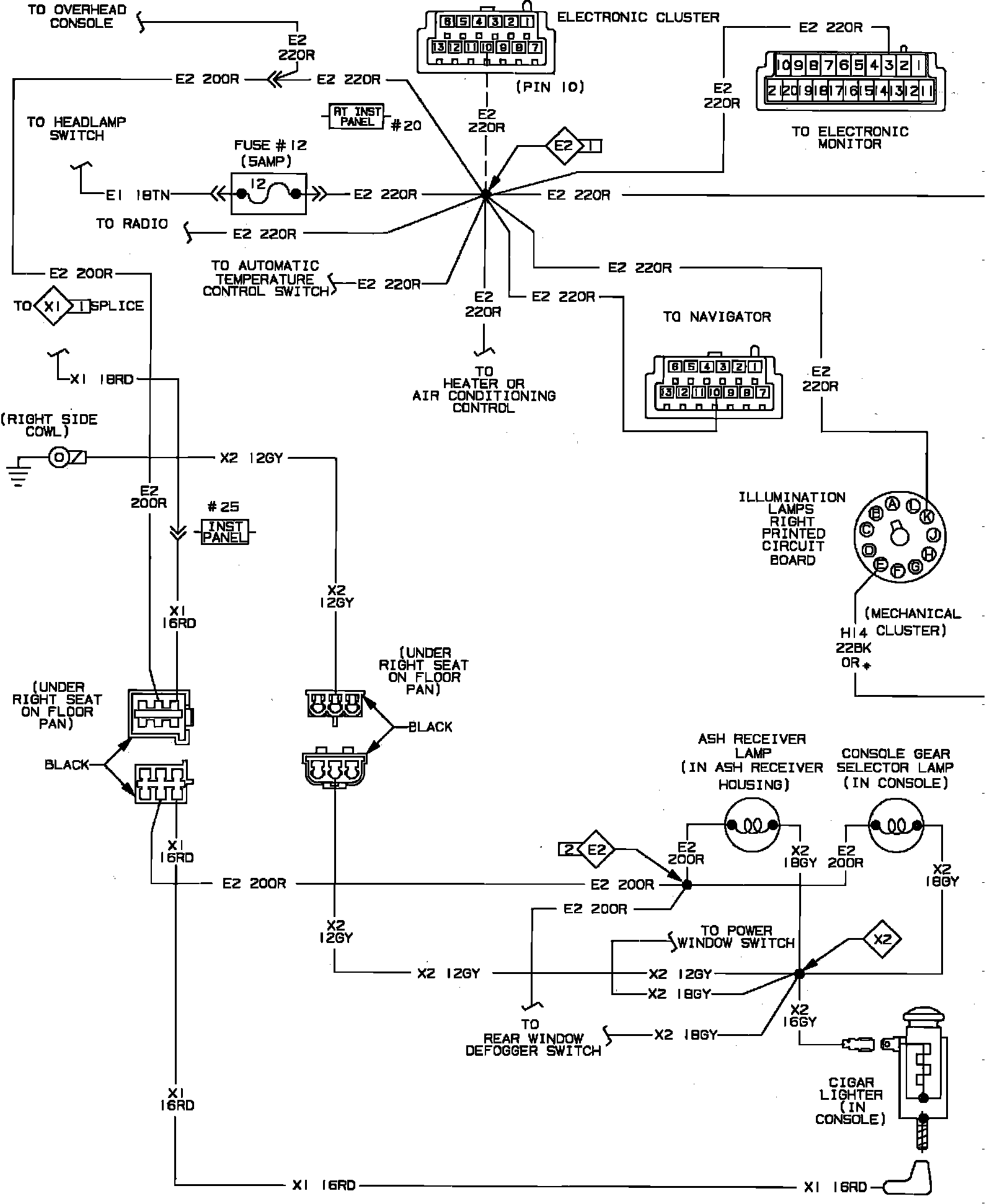

Interior Lighting & Cigar Lighter Wiring Circuit (Part 1 Of 2):

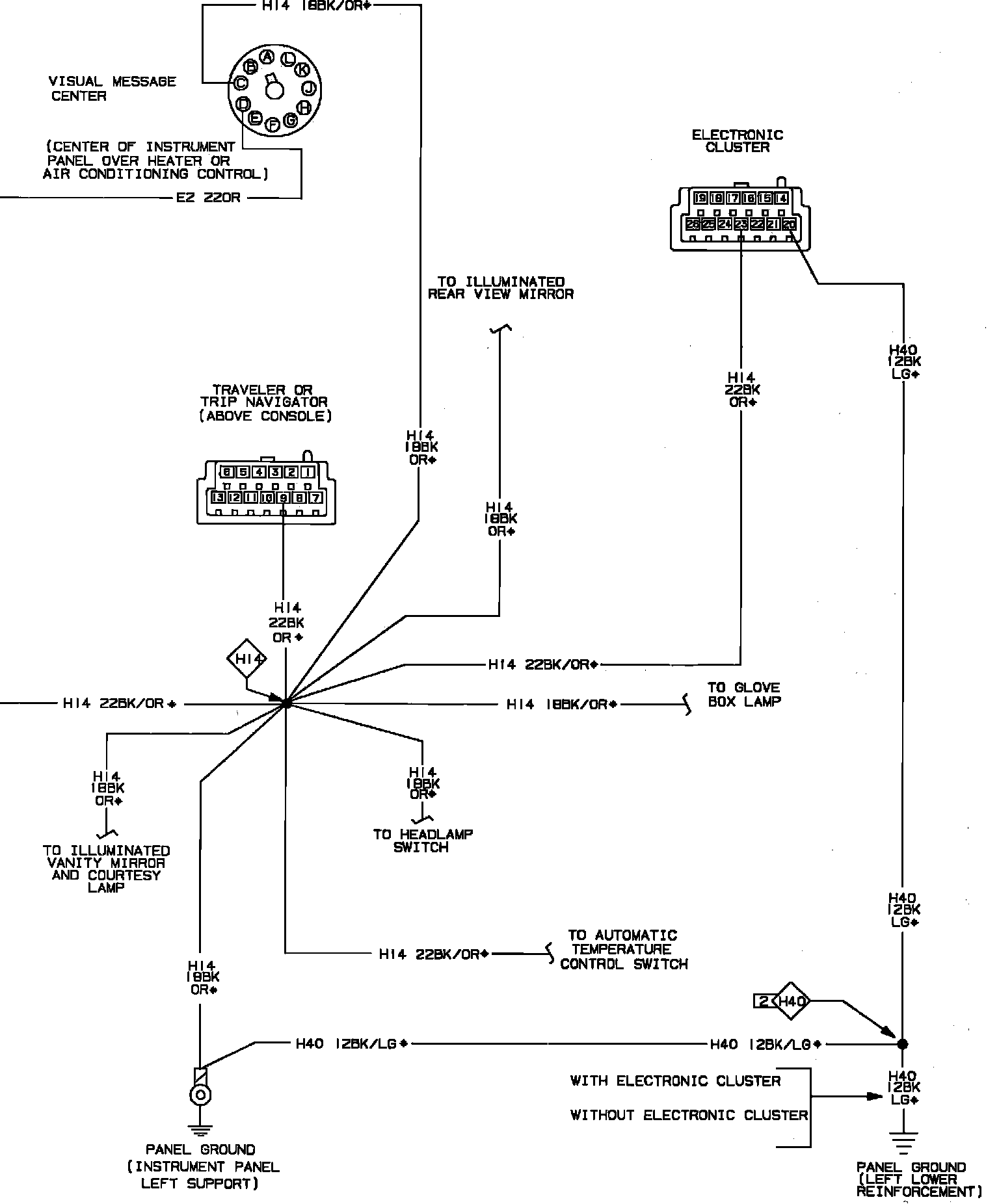

Interior Lighting & Cigar Lighter Wiring Circuit (Part 2 Of 2):
