Front End Lighting

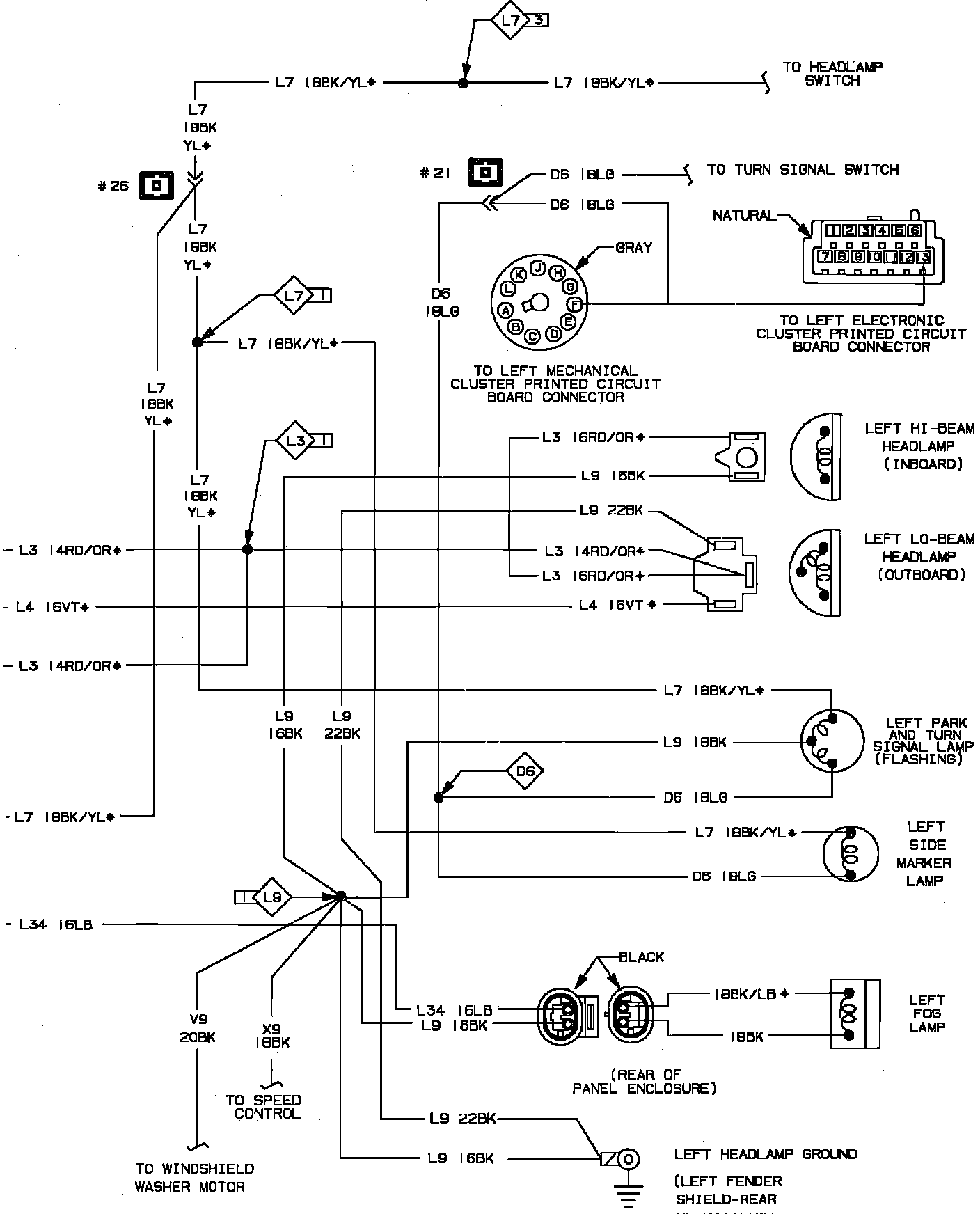

Fig. 30 Front End Lighting Wiring Circuit (Part 1 of 2):

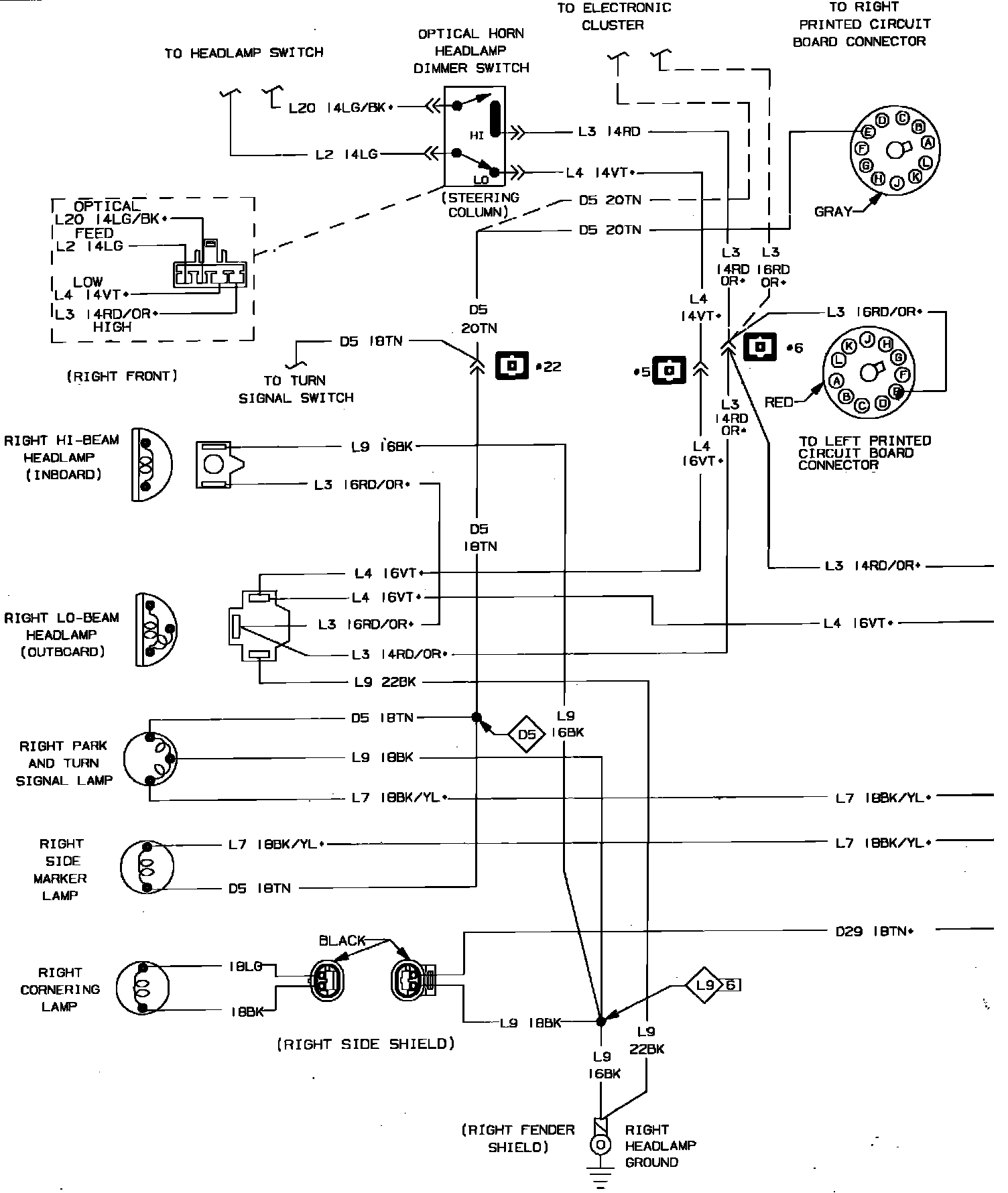

Fig. 30 Front End Lighting Wiring Circuit (Part 2 of 2):

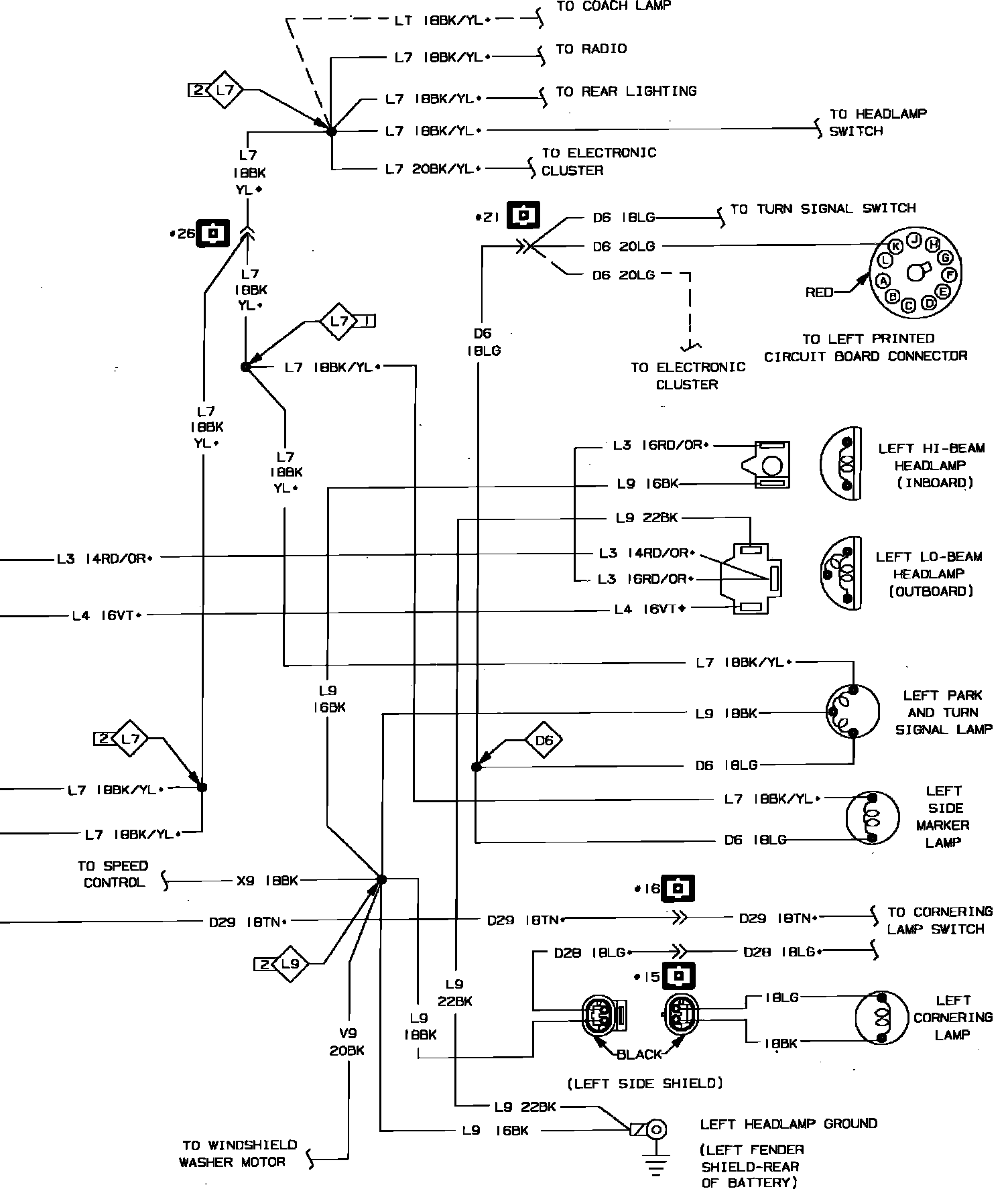

Front End Lighting Wiring Circuit (Part 1 of 2):

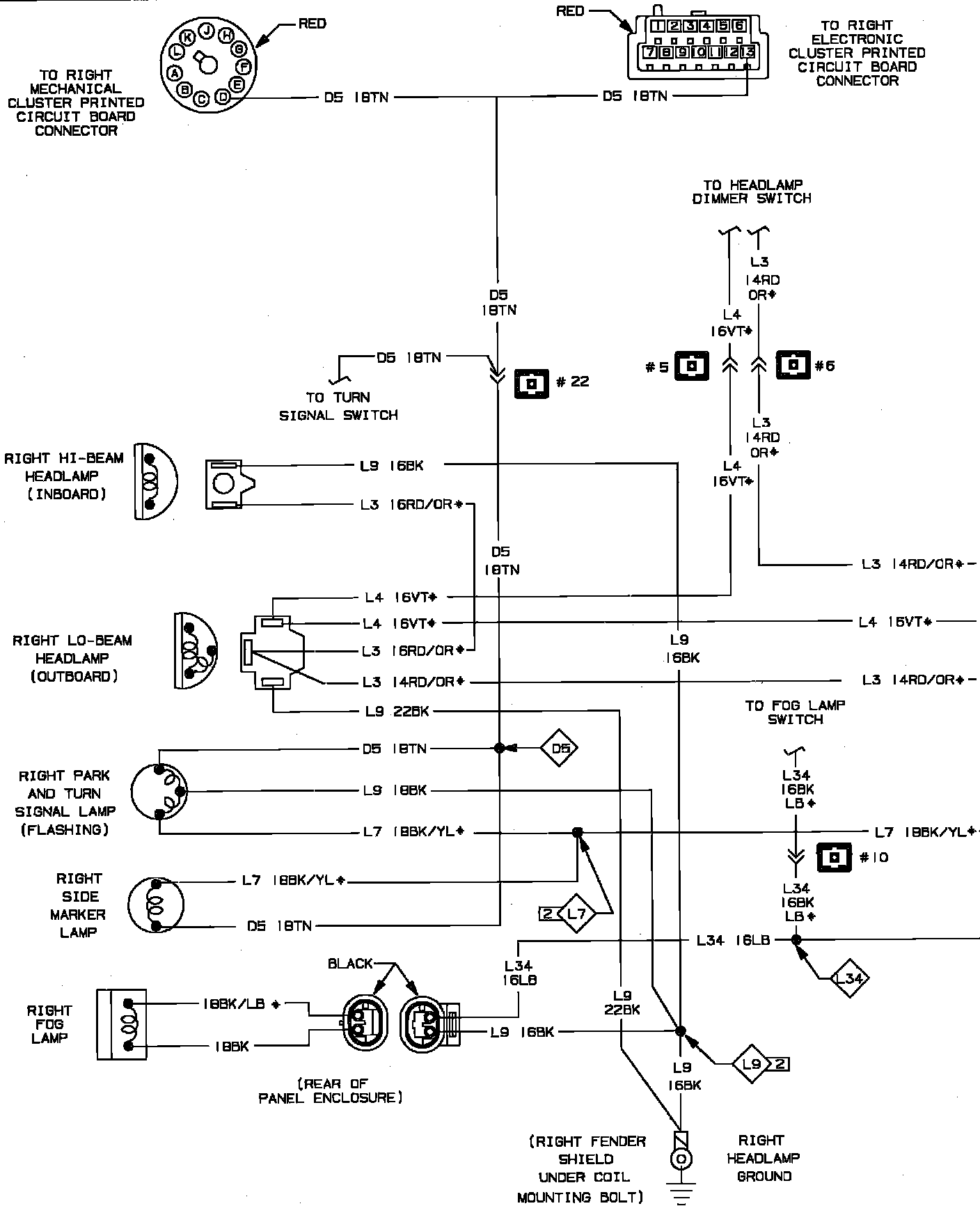

Front End Lighting Wiring Circuit (Part 2 of 2):

Front End Lighting Wiring Circuit:

Front End Lighting Wiring Circuit:
