Home >> Chrysler >> 1988 >> Lebaron Convertible L4-135 2.2L SOHC Turbo VIN E FI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> Headlamp >> Headlamp Switch >> Headlamp Switch Controlled Interior Lighting >> With Mech Cluster

With Mech Cluster

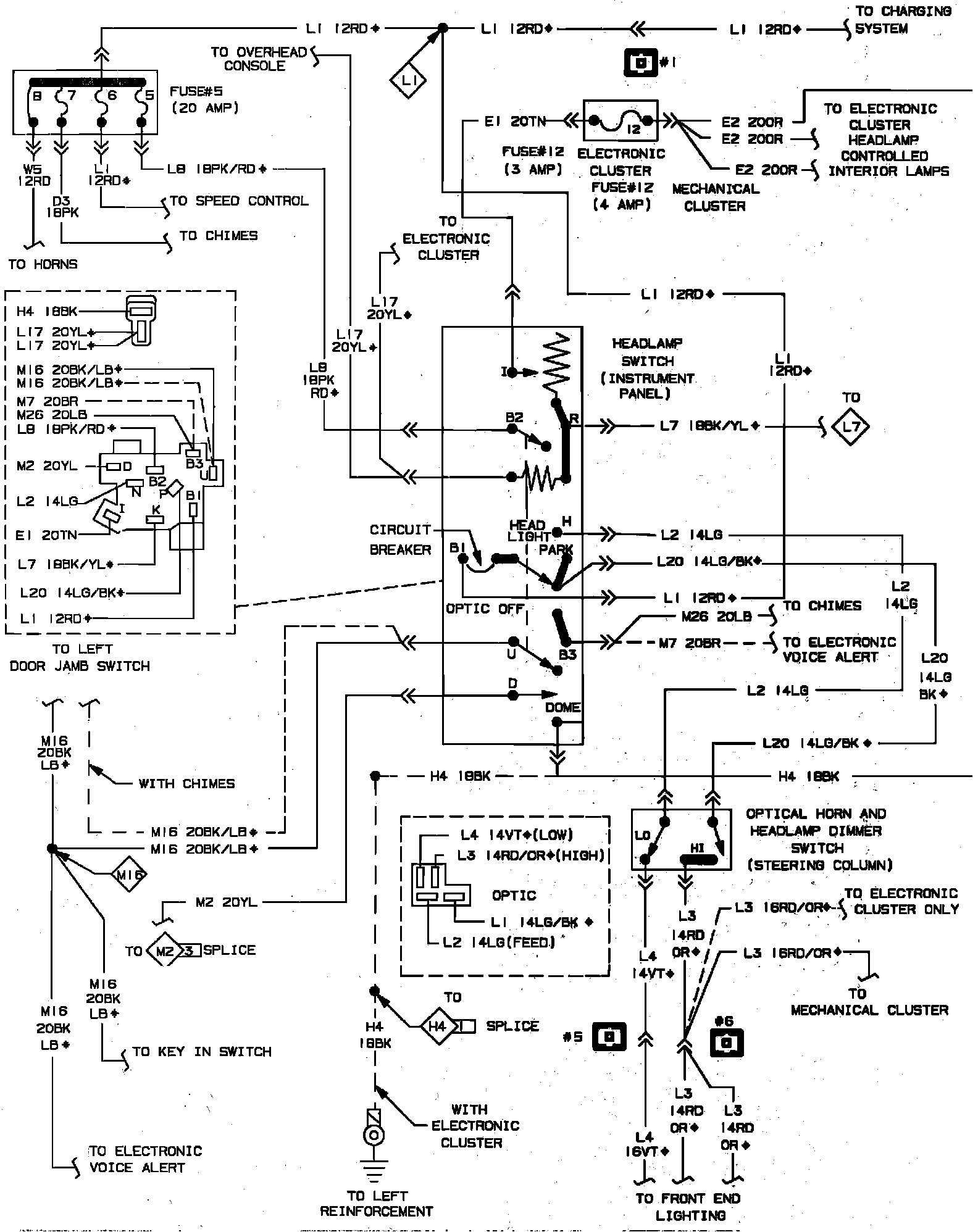

Headlamp Switch Controlled Interior Lighting System Wiring Circuit. Mechanical Cluster:

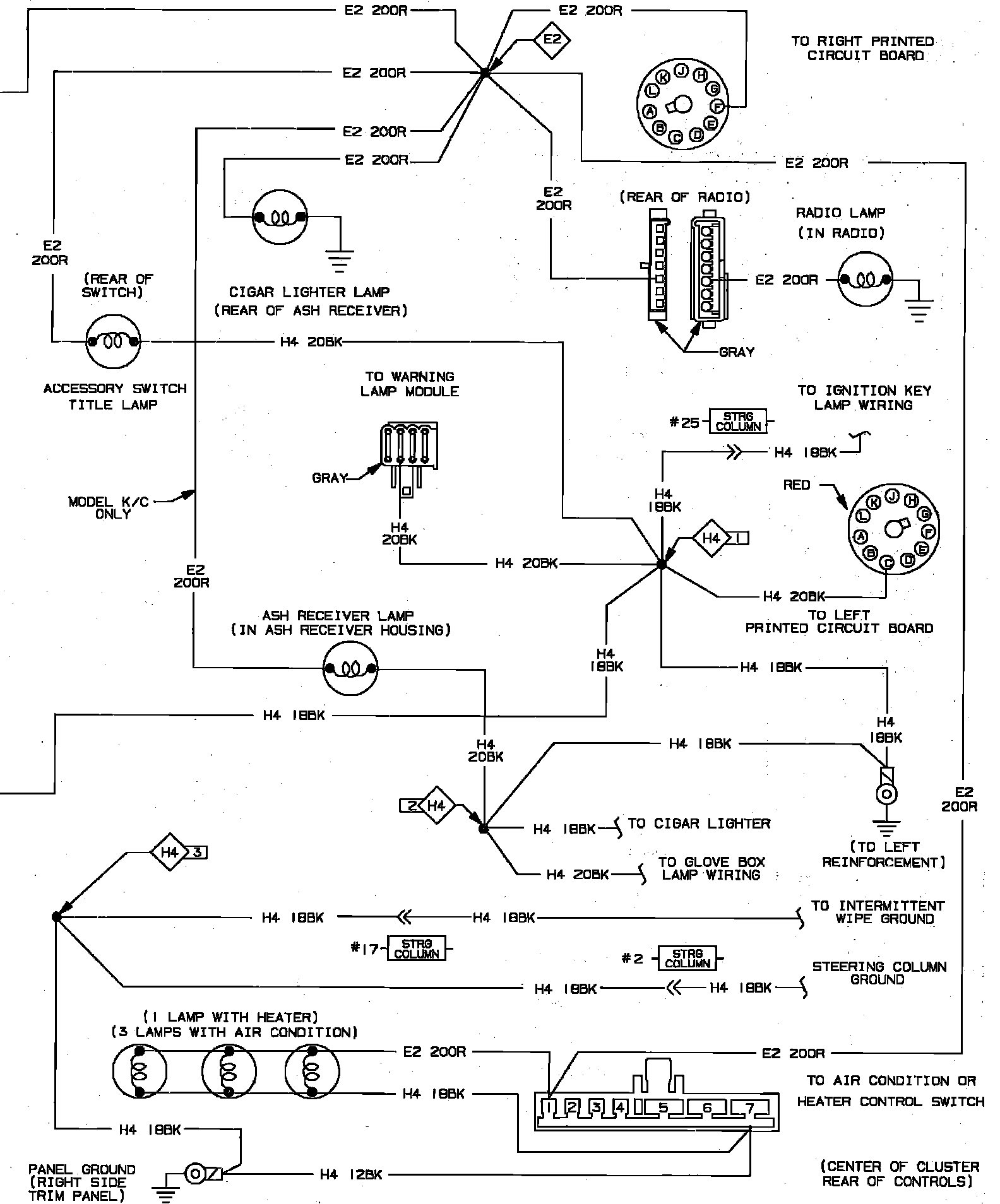

Headlamp Switch Controlled Interior Lighting System Wiring Circuit. Mechanical Cluster:
