1988
>>
Lebaron Convertible L4-135 2.2L SOHC Turbo VIN E FI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Instrument Panel, Gauges and Warning Indicators
>>
Instrument Cluster / Carrier
>>
Instrument Panel Circuit Board
>>
Message Center
Message Center

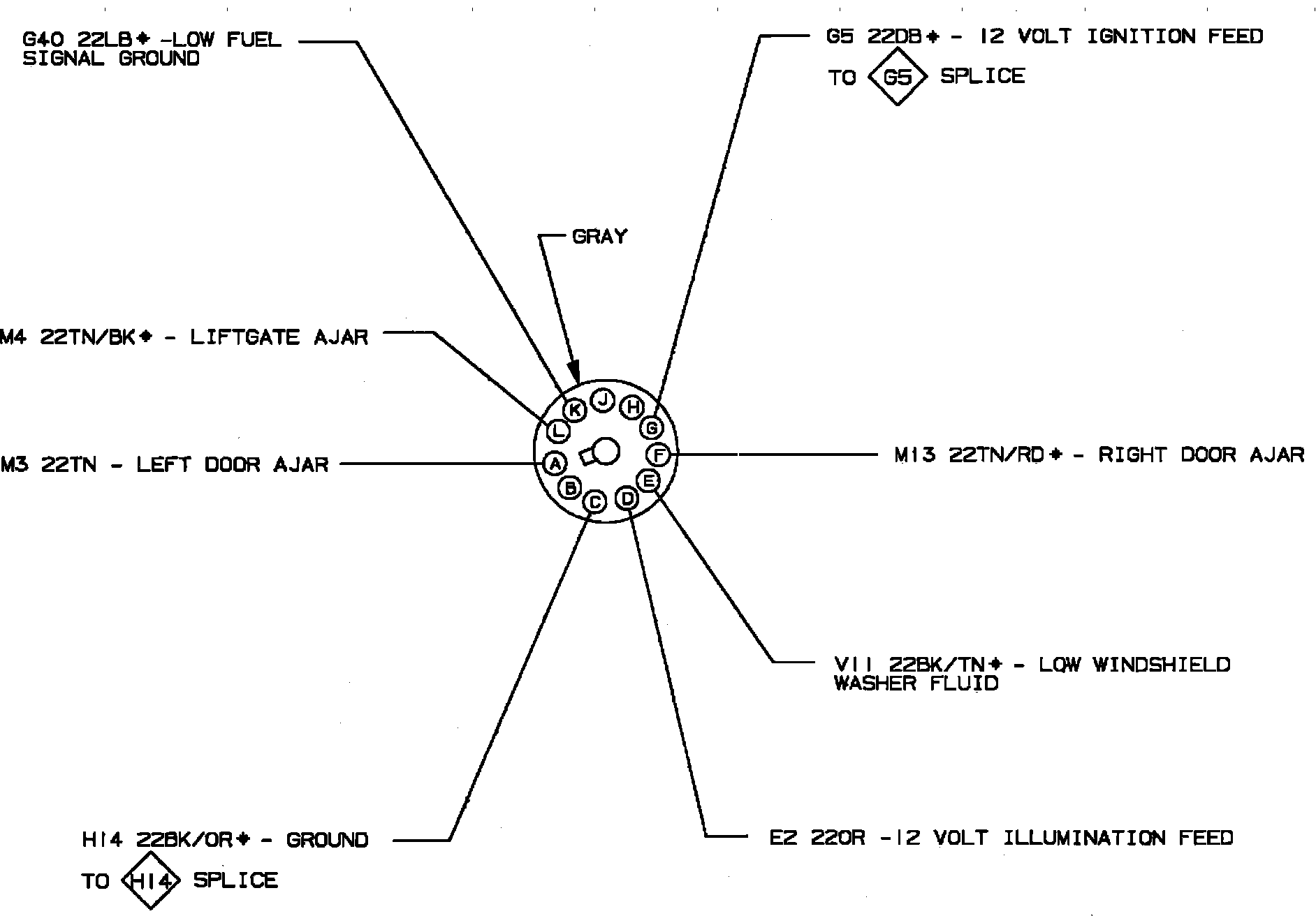

Printed Circuit Board, Message Center (Part 1 Of 2):
Printed Circuit Board, Message Center (Part 2 Of 2):
