Mechanical Cluster

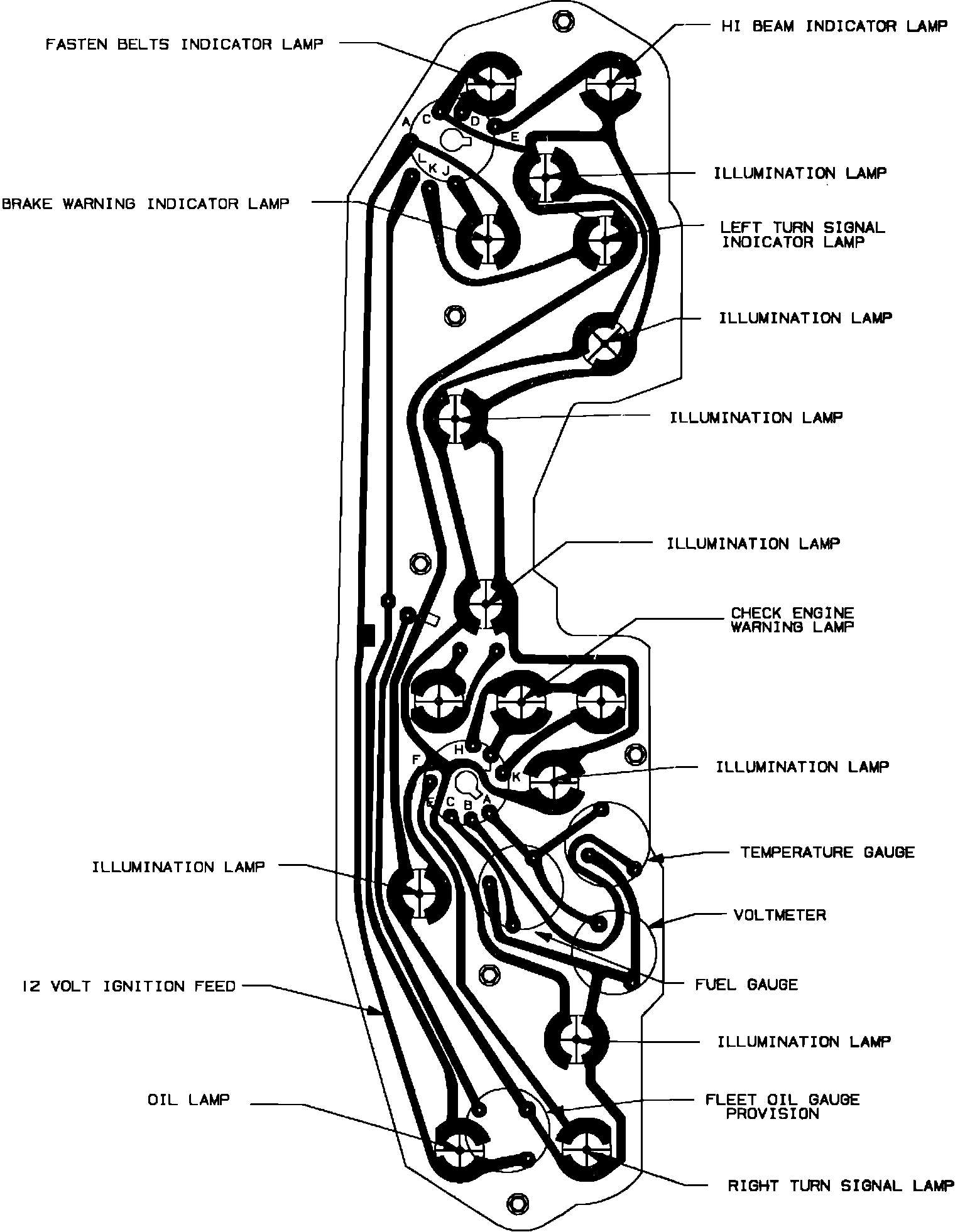

Printed Circuit Board, Mechanical Instrument Cluster (Part 1 Of 2):



Printed Circuit Board, Mechanical Instrument Cluster:

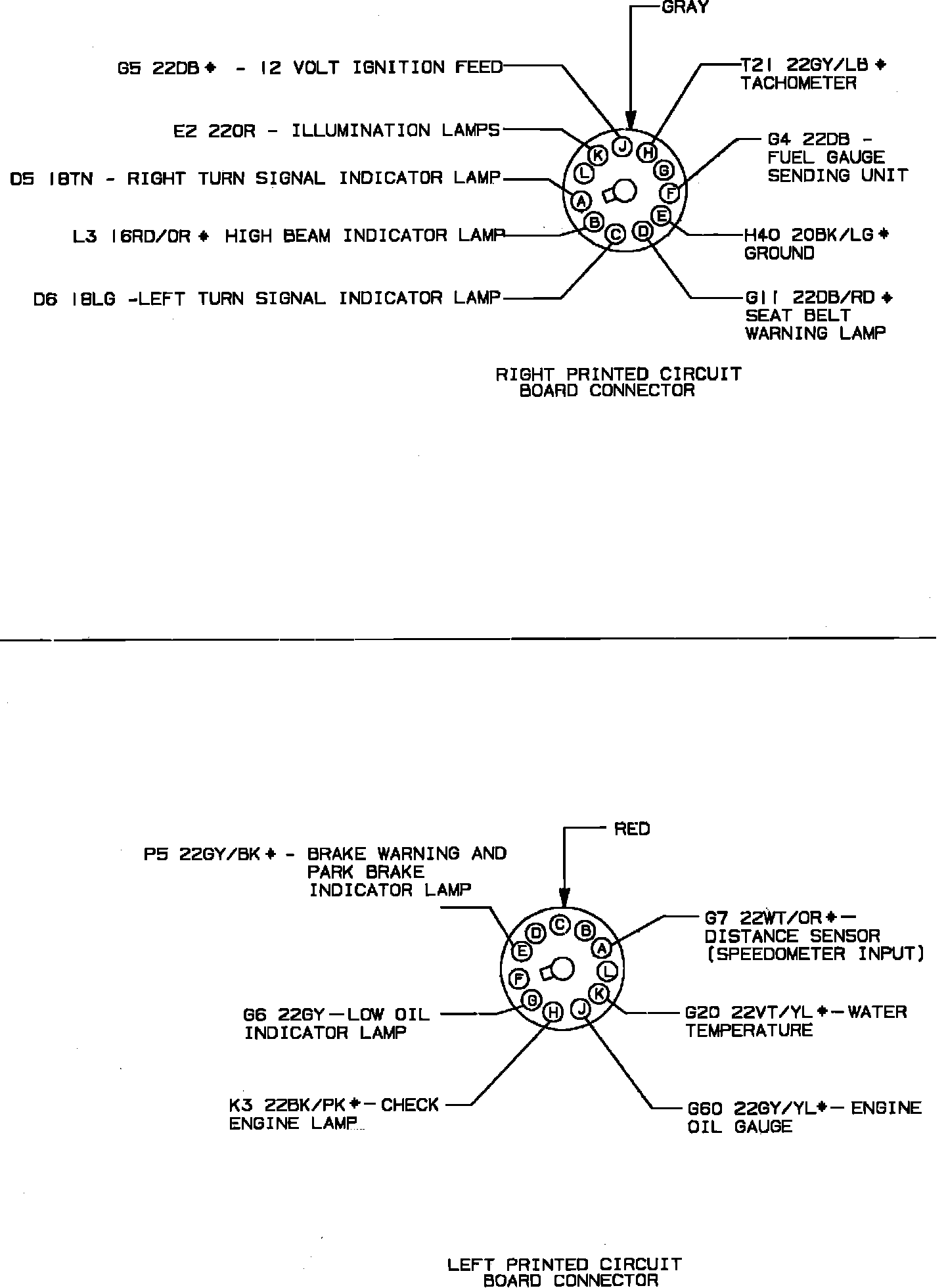

Fig. 3 Printed Circuit Board & Connectors. Mechanical Instrument Cluster (Part 1 of 2):
