Active Check Module
Active Check Module

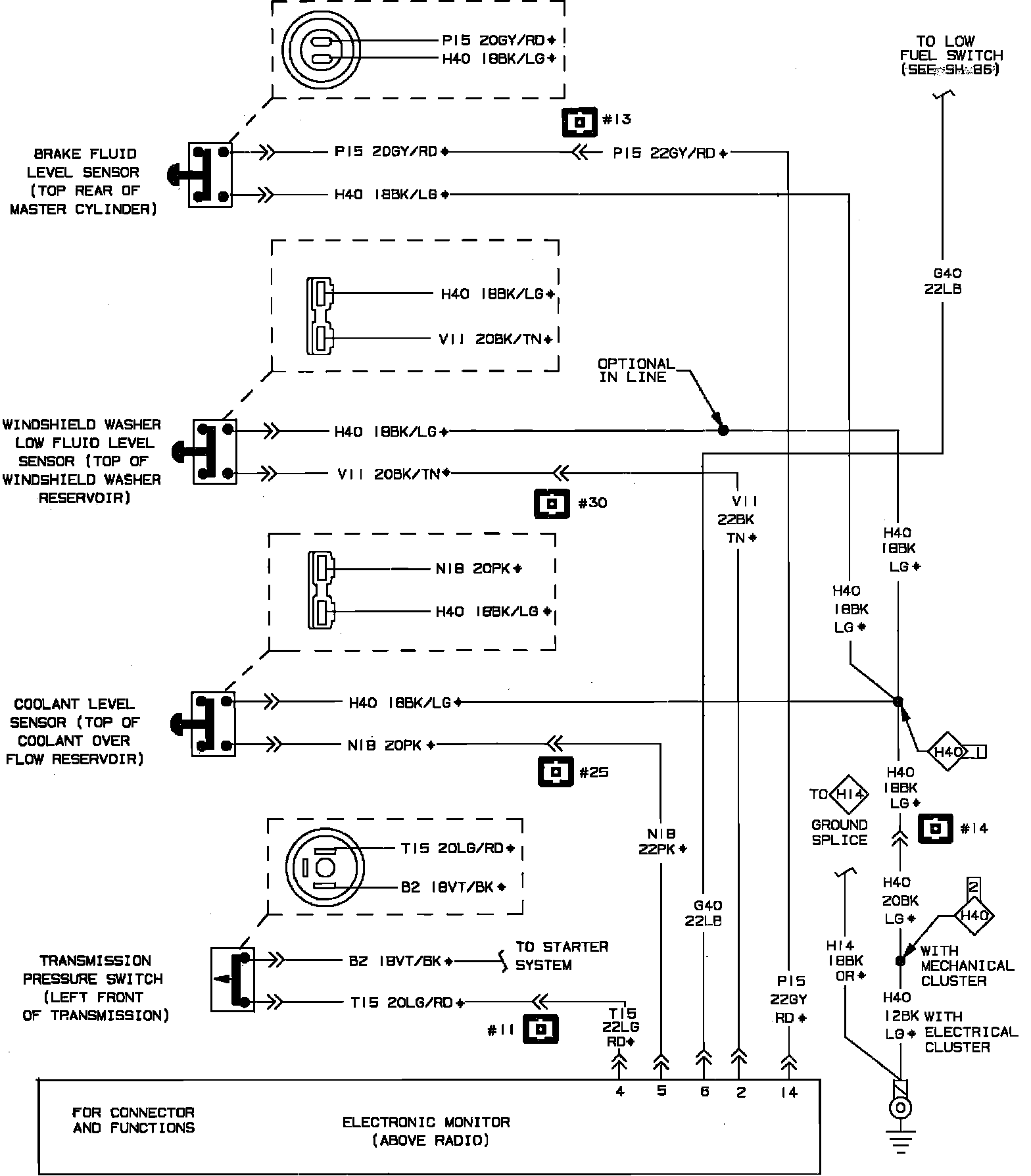

Electronic Monitor Wiring Circuit (Part 1 Of 2):
Fig. 29 Electronic Monitoring Wiring Circuit (Part 2 of 2):
