Home >> Chrysler >> 1988 >> Lebaron Convertible L4-135 2.2L SOHC Turbo VIN E FI >> Repair and Diagnosis >> Diagrams >> Connector Views >> Powertrain Management >> Engine Control Module >> Electronic Monitor Connectors

Electronic Monitor Connectors

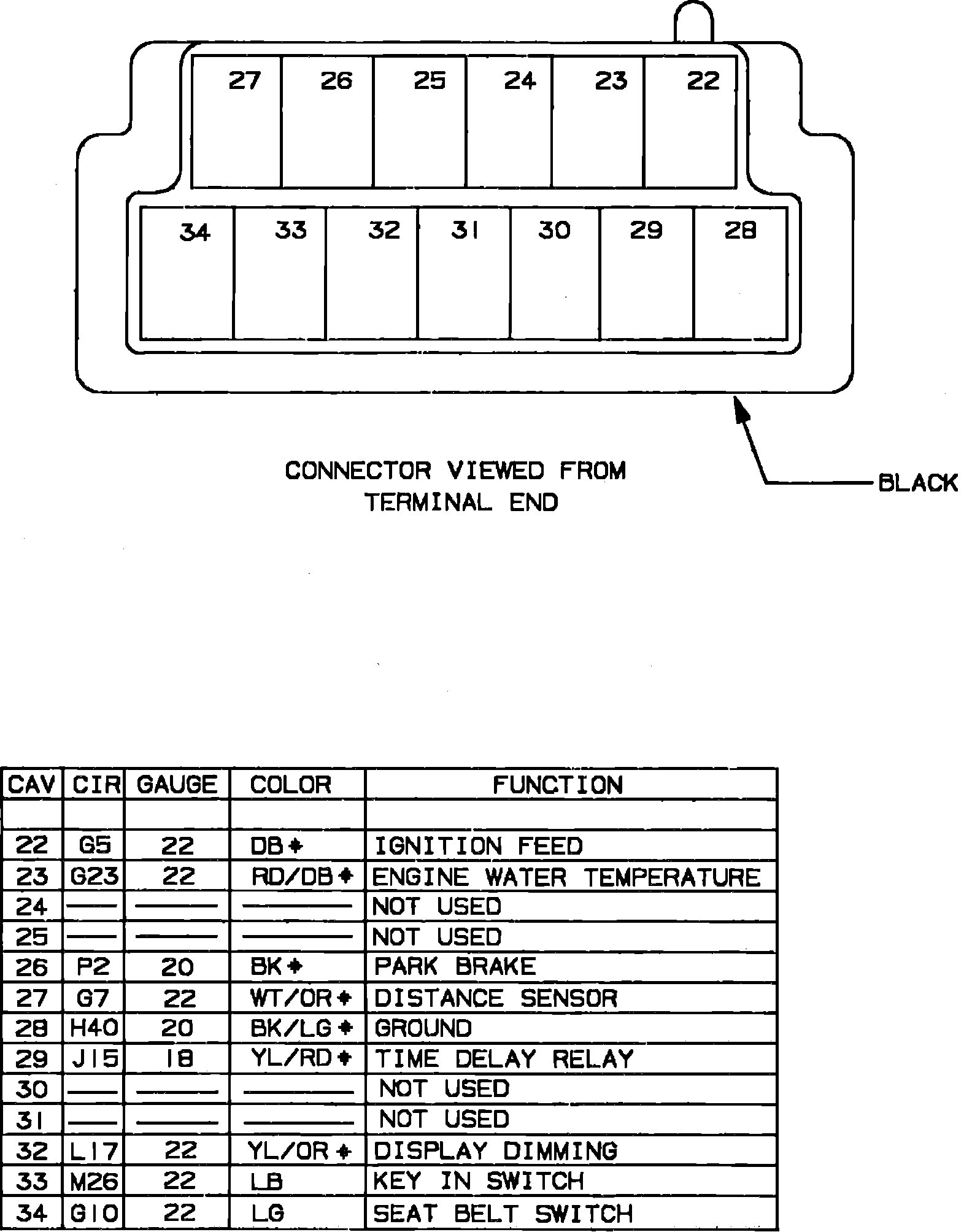

Electronic Monitor Connector (Part 1 Of 2):

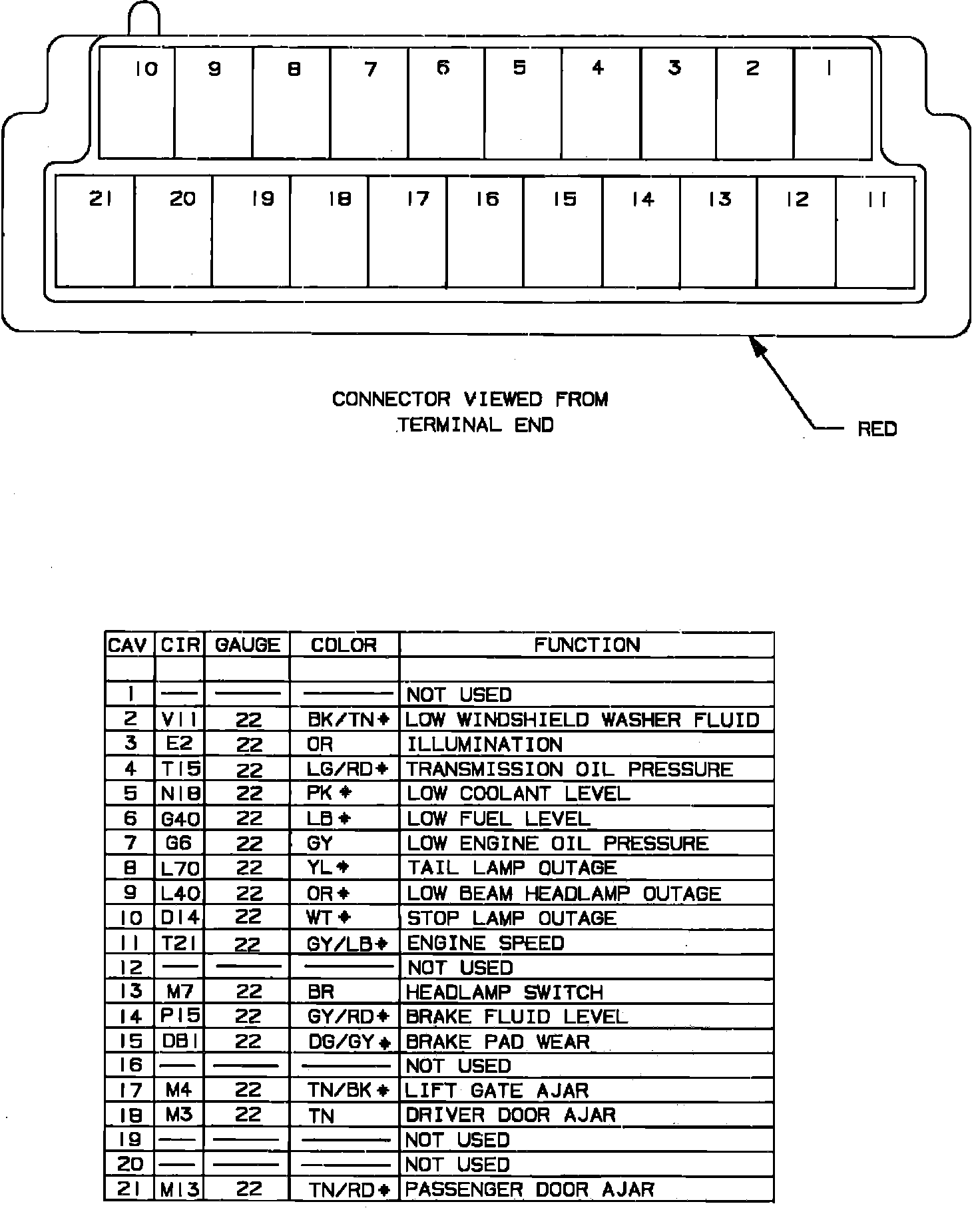

Electronic Monitor Connector (Part 2 Of 2):
