Right Side

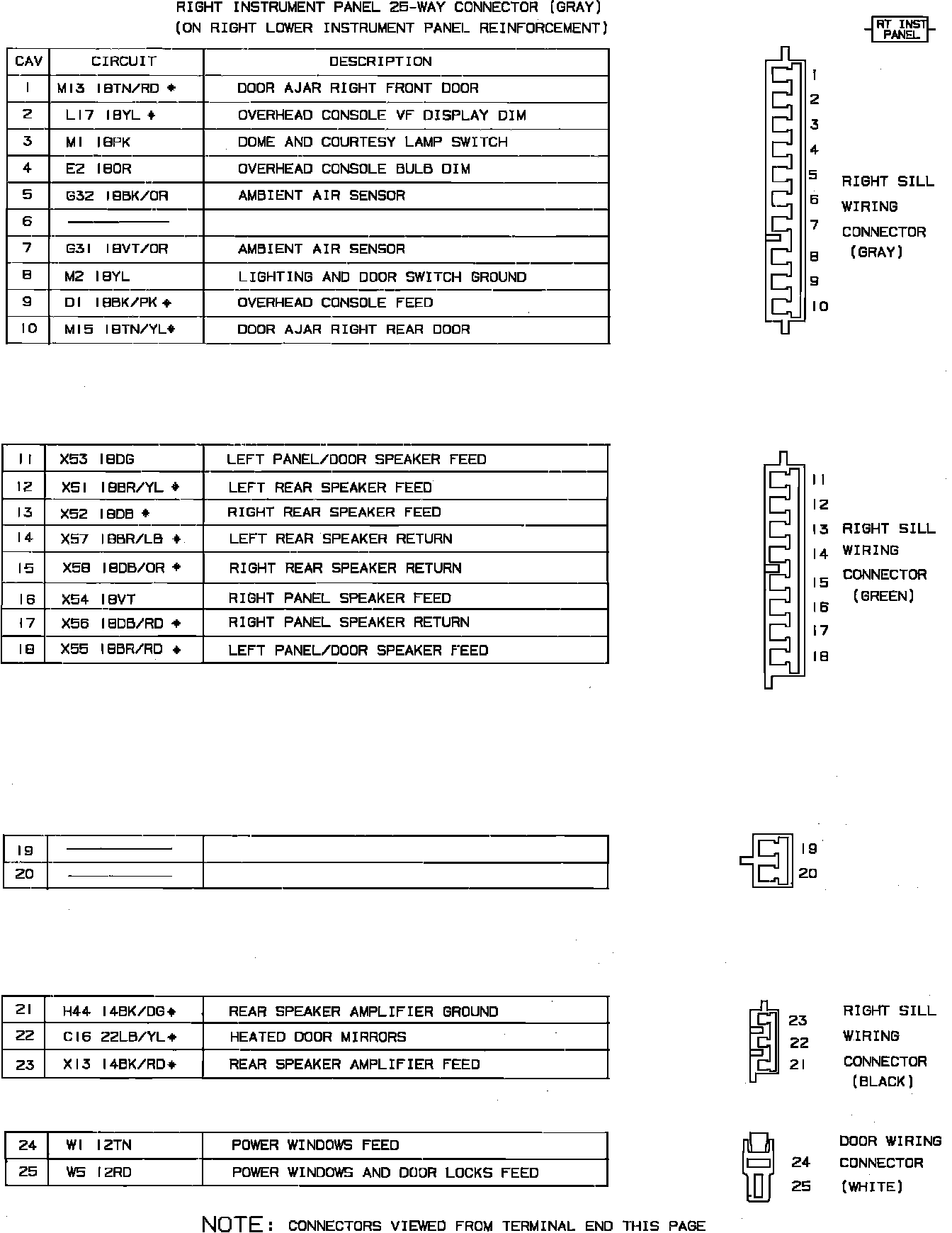

Body To Instrument Panel Connectors. Right Side:

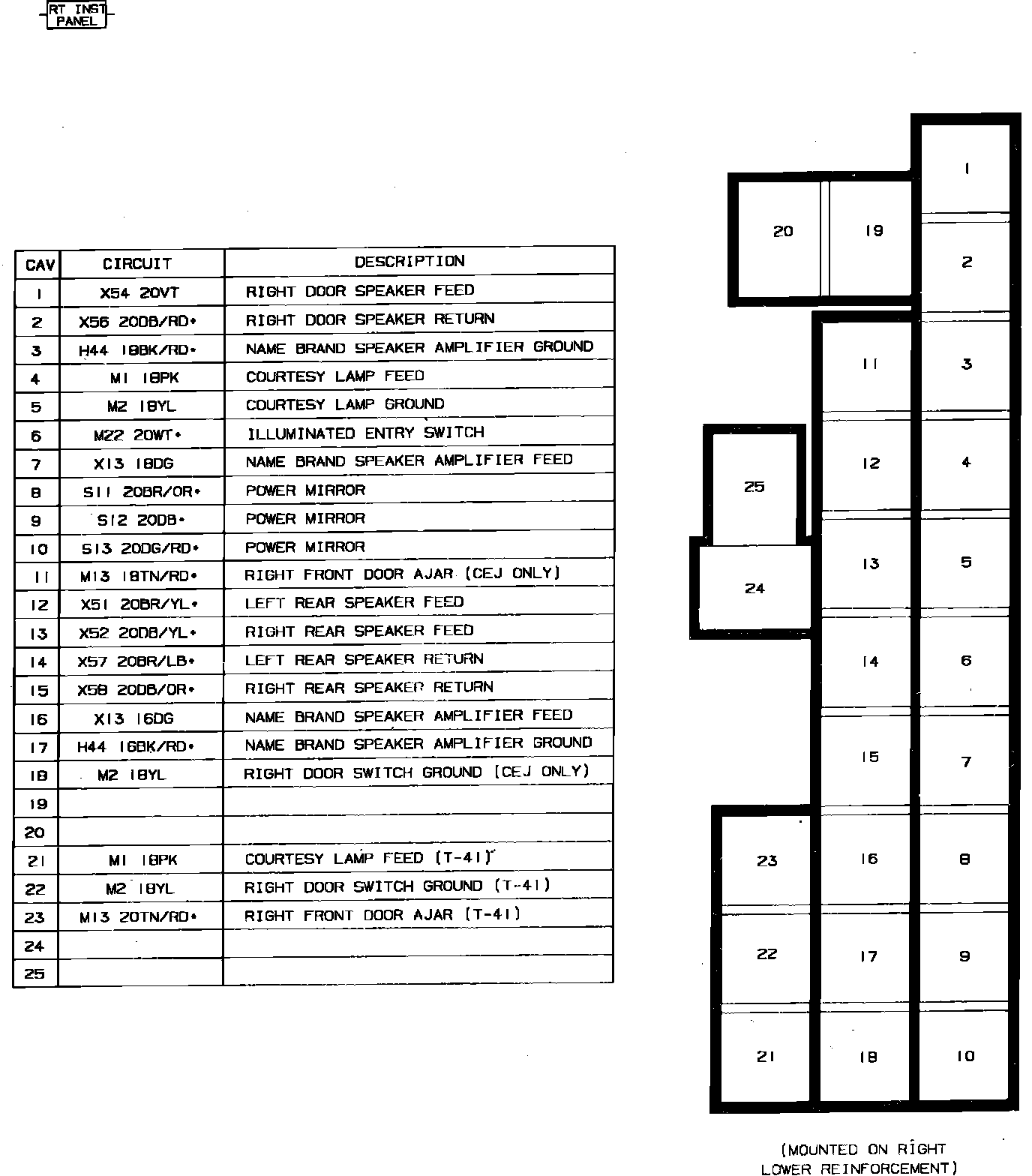

Body To Instrument Panel Connector, Right Side (Part 1 Of 2):

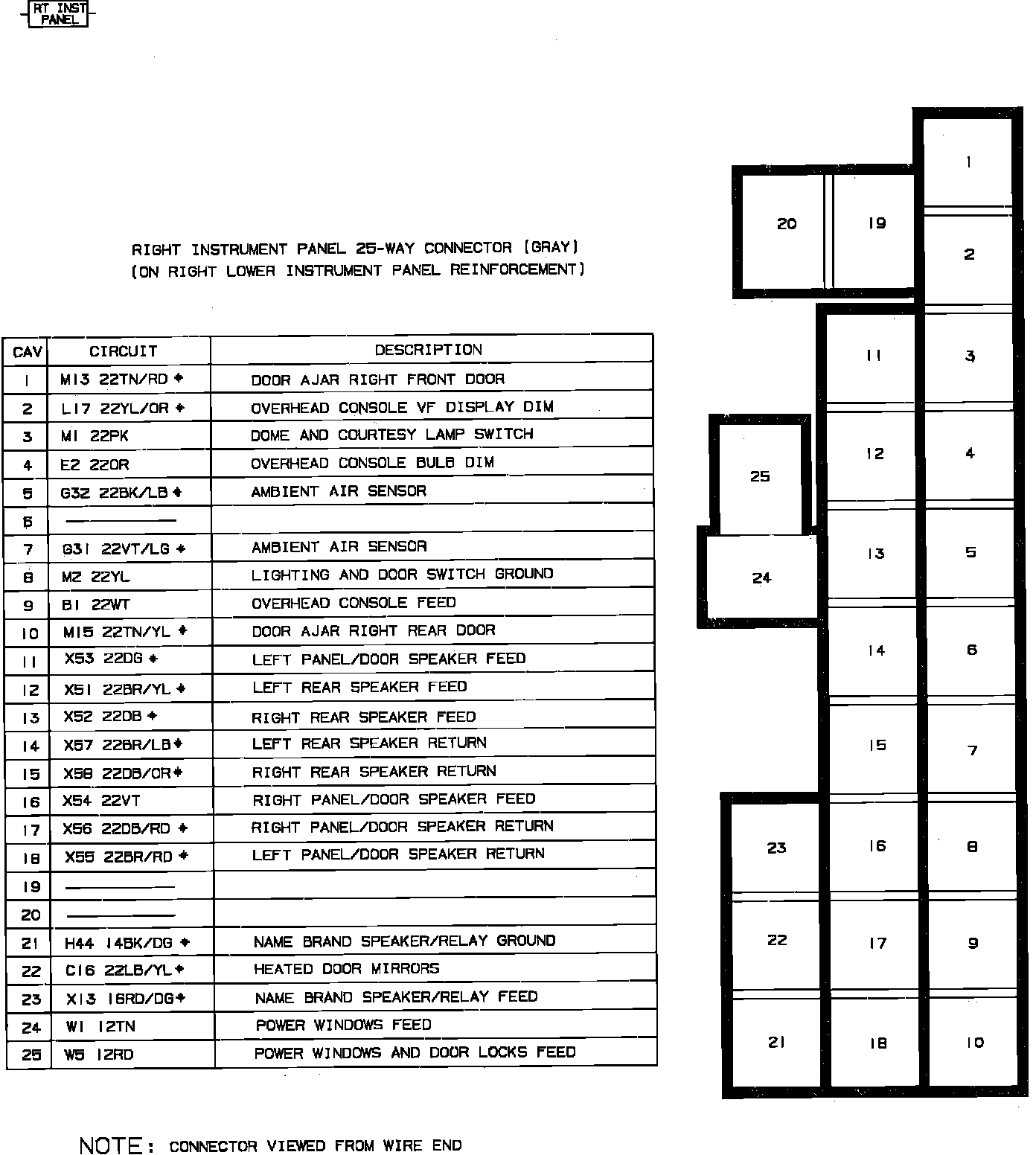

Body To Instrument Panel Connector, Right Side (Part 2 Of 2):

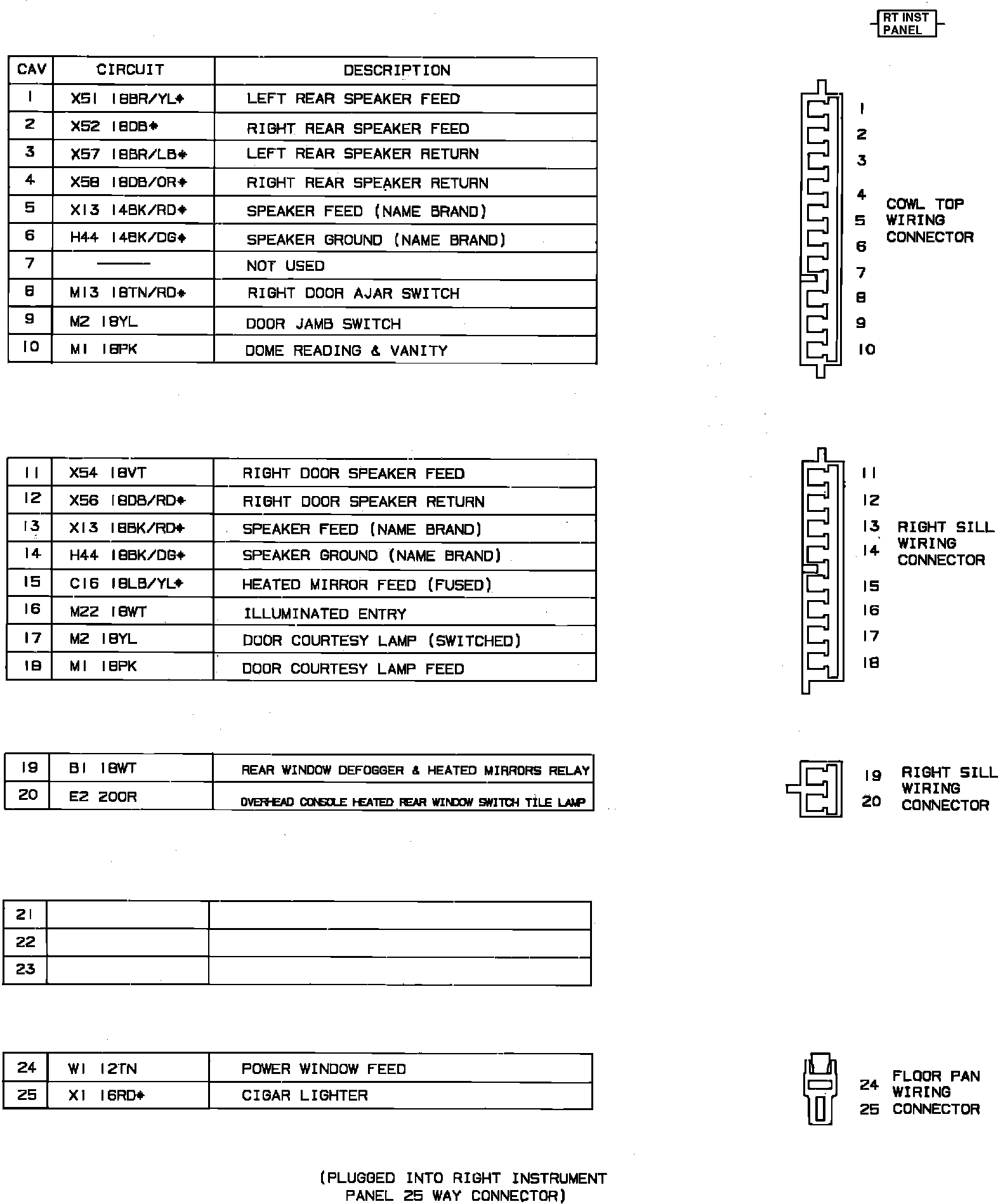

Body To Instrument Panel Connectors, Right Side (Part 1 of 2):

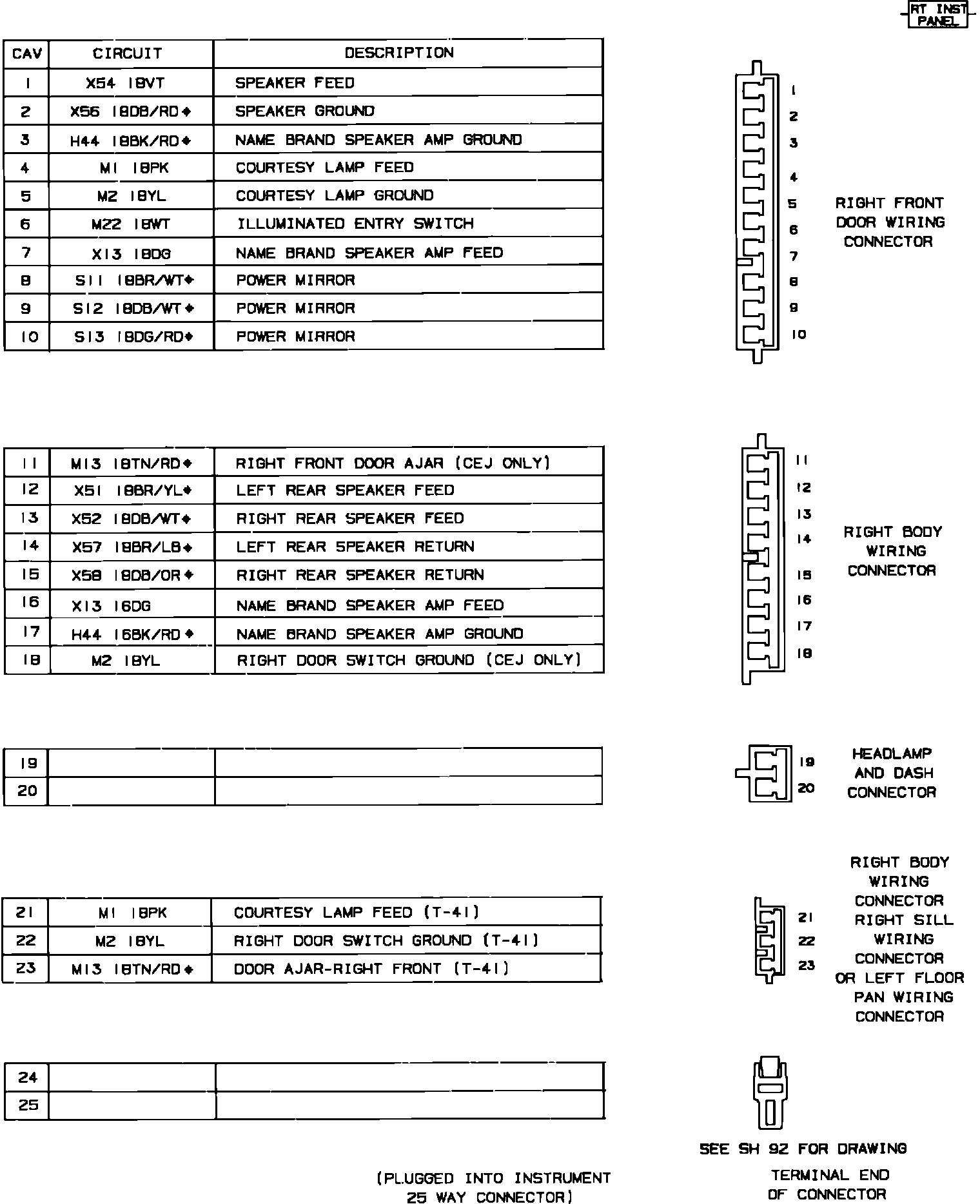

Body To Instrument Panel Connectors, Right Side (Part 2 of 2):

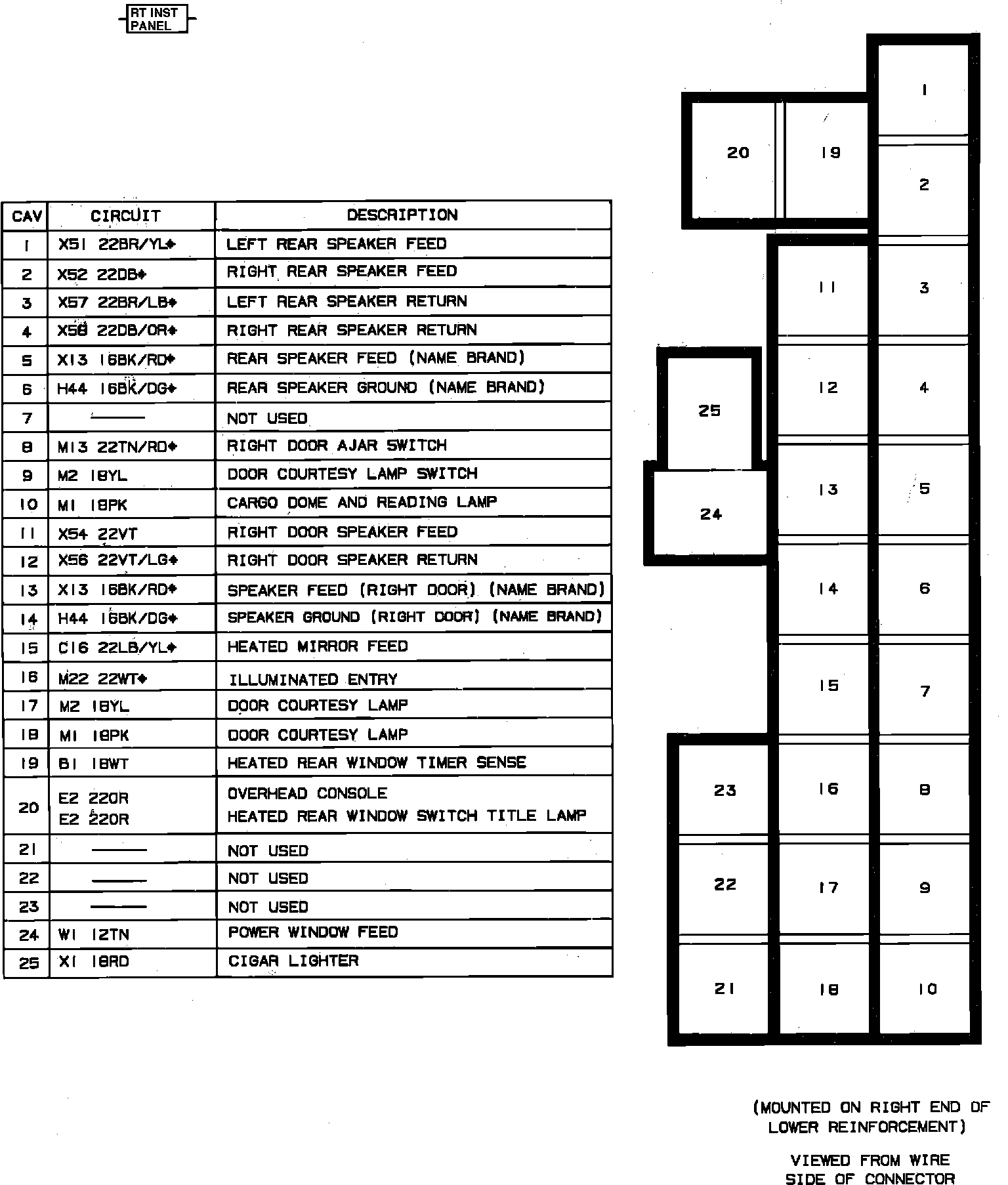

Body To Instrument Panel Connectors. Right Side:
