Compact Disc Player - Diagnostic Chart Revision

87chrysler16 Models


All 1988 "G" & "J" Body With Compact Disc Player


Subject


Service Manual Revision


Index -


ELECTRICAL


Date

November 2, 1987

No..


08-22-87 (C26-08)

P-3977



The 1988 Front Wheel Drive Car Electrical Fuel and Emissions Service Manual, publication #81-270-8003, contains an error in the compact disc player diagnostic chart. Pin 5, not pin 8, of the interface wire should be checked for voltage as part of the diagnosis.

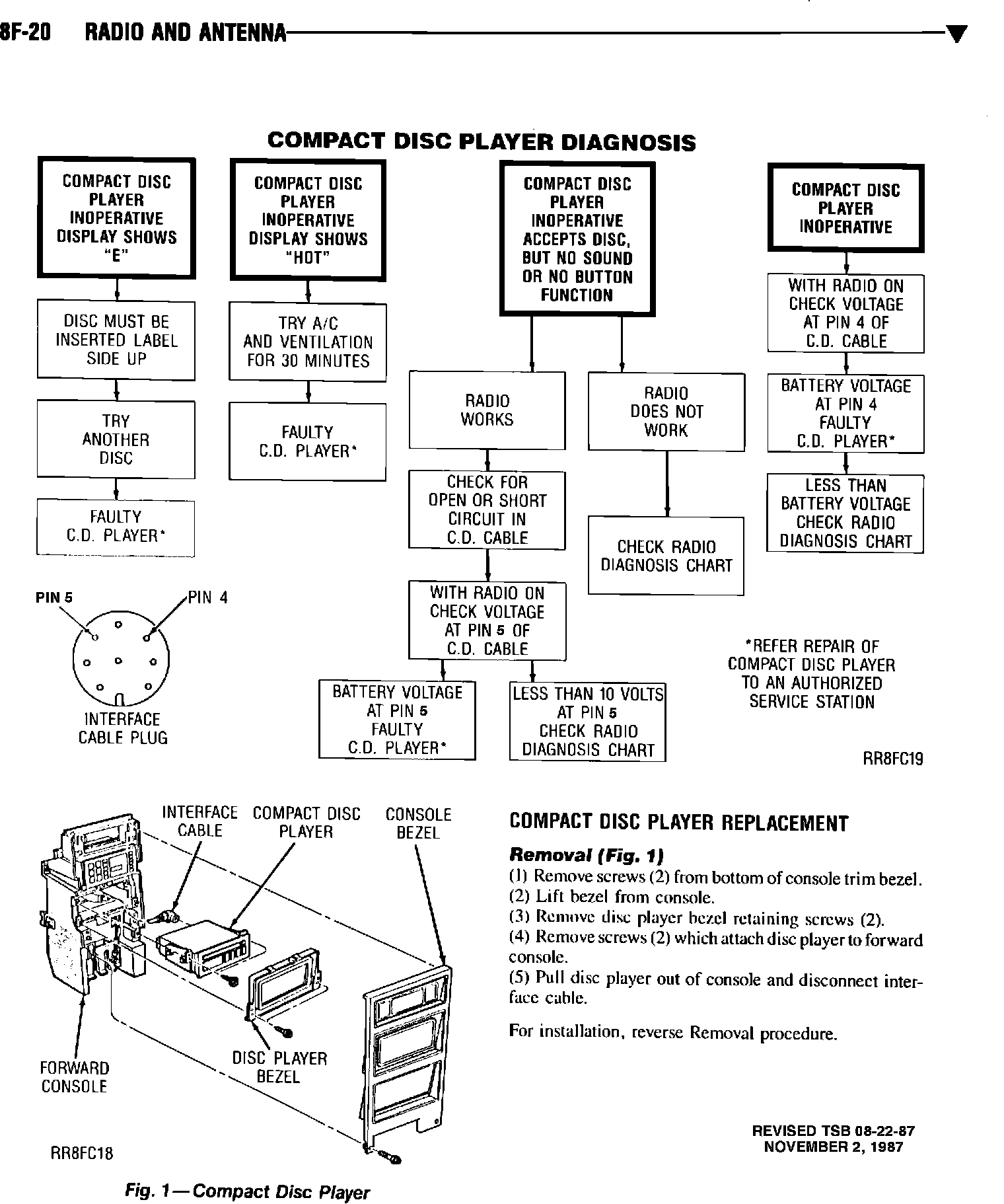

The enclosed page with the corrections highlighted in red should be attached to page 8F-20 in publication #81-270-8003.
POLICY: Information only
