SC-4A System Power Supply Circuit
SC-4A System Power Supply Circuit

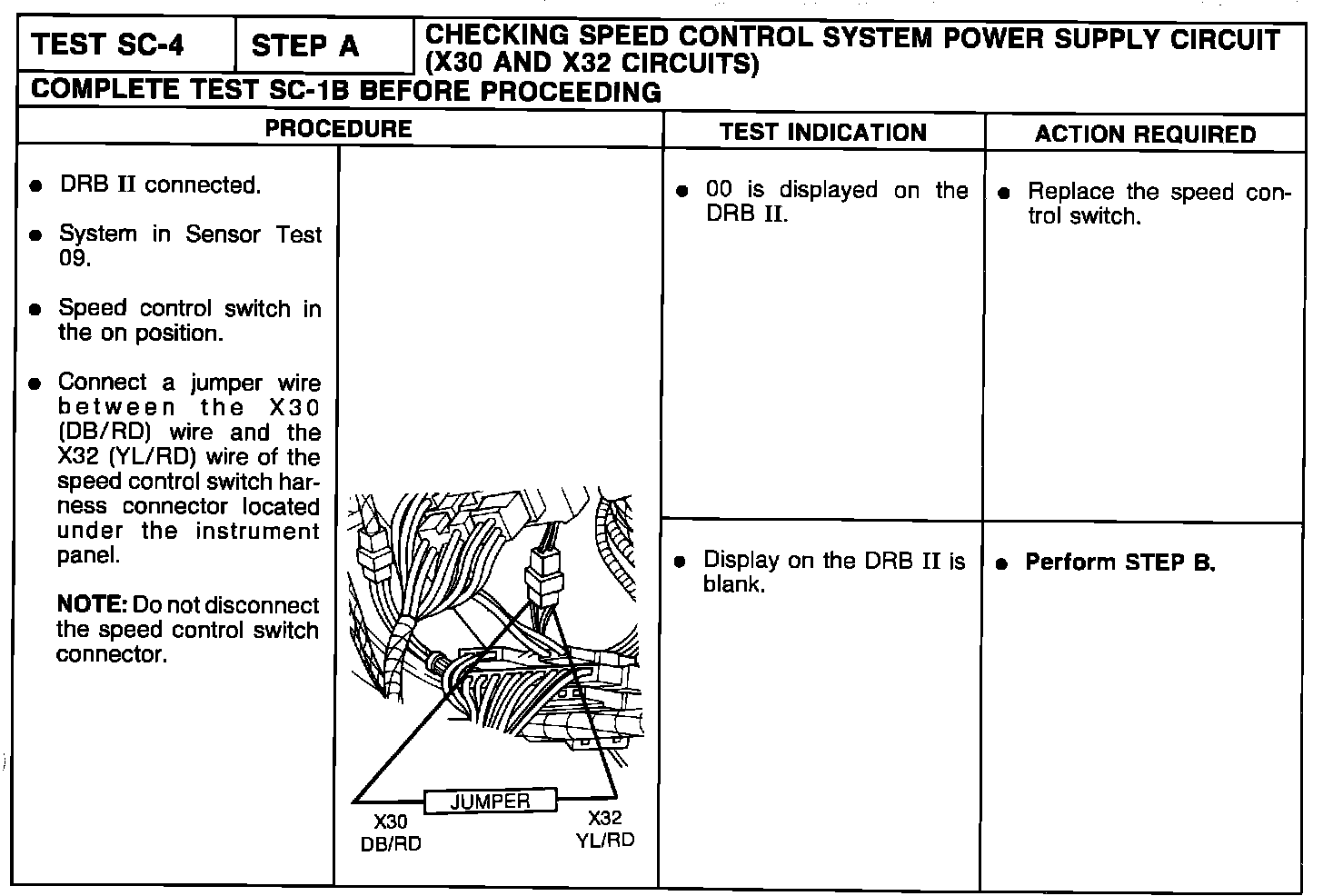

Test 4-Step A, System Power Supply Circuit:
