SC-3F Checking the Speed Control Servo Operation
SC-3F Checking the Speed Control Servo Operation

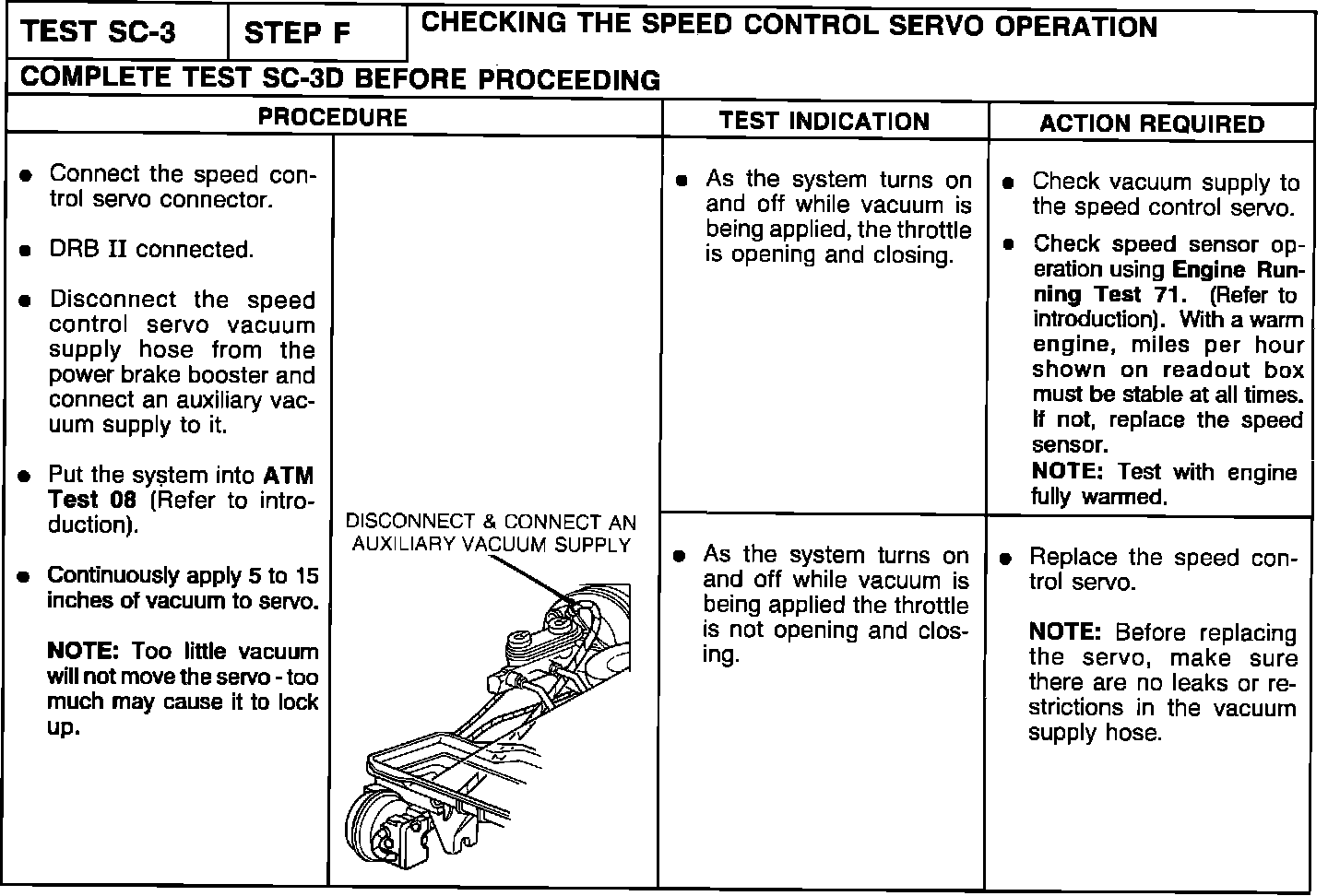

Test 3-Step F, Checking The Speed Control Servo Operation:
