Lebaron Convertible L4-135 2.2L SOHC Turbo VIN E FI
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Speed Control (SC) Tests
>>
SC-3C Brake Switch Input Circuit to the SMEC
SC-3C Brake Switch Input Circuit to the SMEC

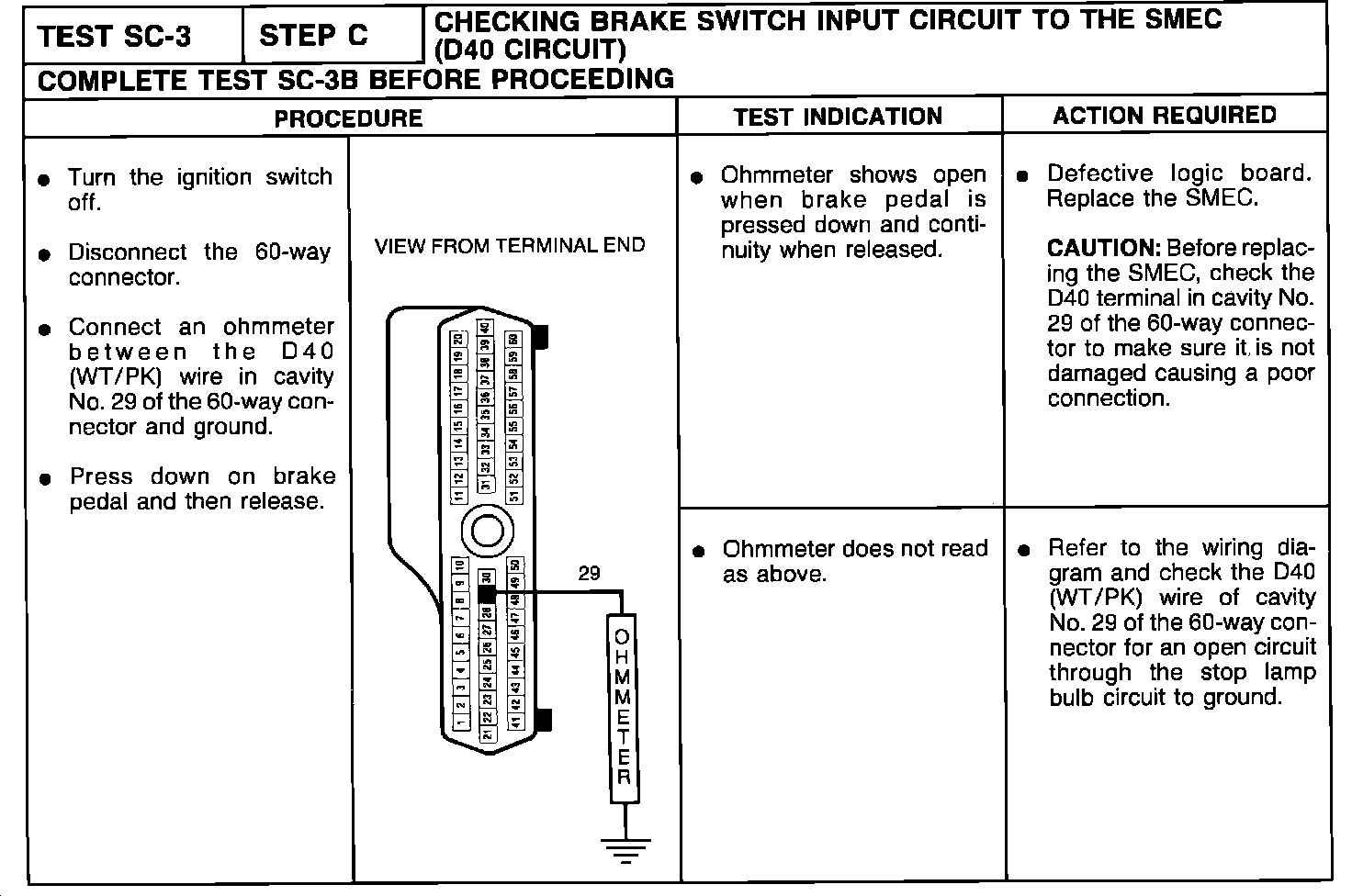

Test 3-Step C, Brake Switch Input Circuit To The SMEC:
