SC-3A Speed Control Servo Ground Circuit
SC-3A Speed Control Servo Ground Circuit

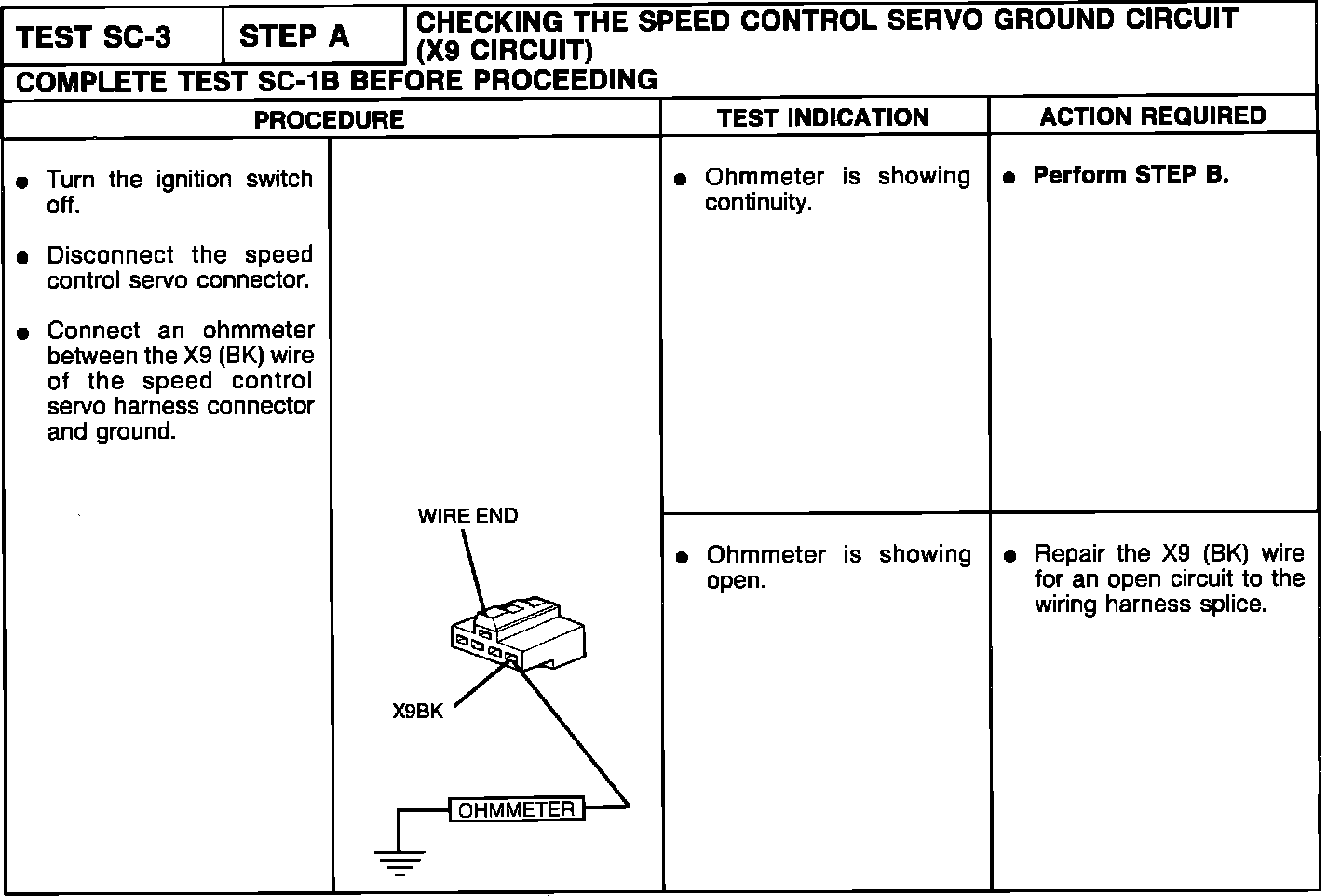

Test 3-Step A, Speed Control Servo Ground Circuit:
