Lebaron Convertible L4-135 2.2L SOHC Turbo VIN E FI
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Speed Control (SC) Tests
>>
SC-2H Power Supply Through the Brake Switch
SC-2H Power Supply Through the Brake Switch

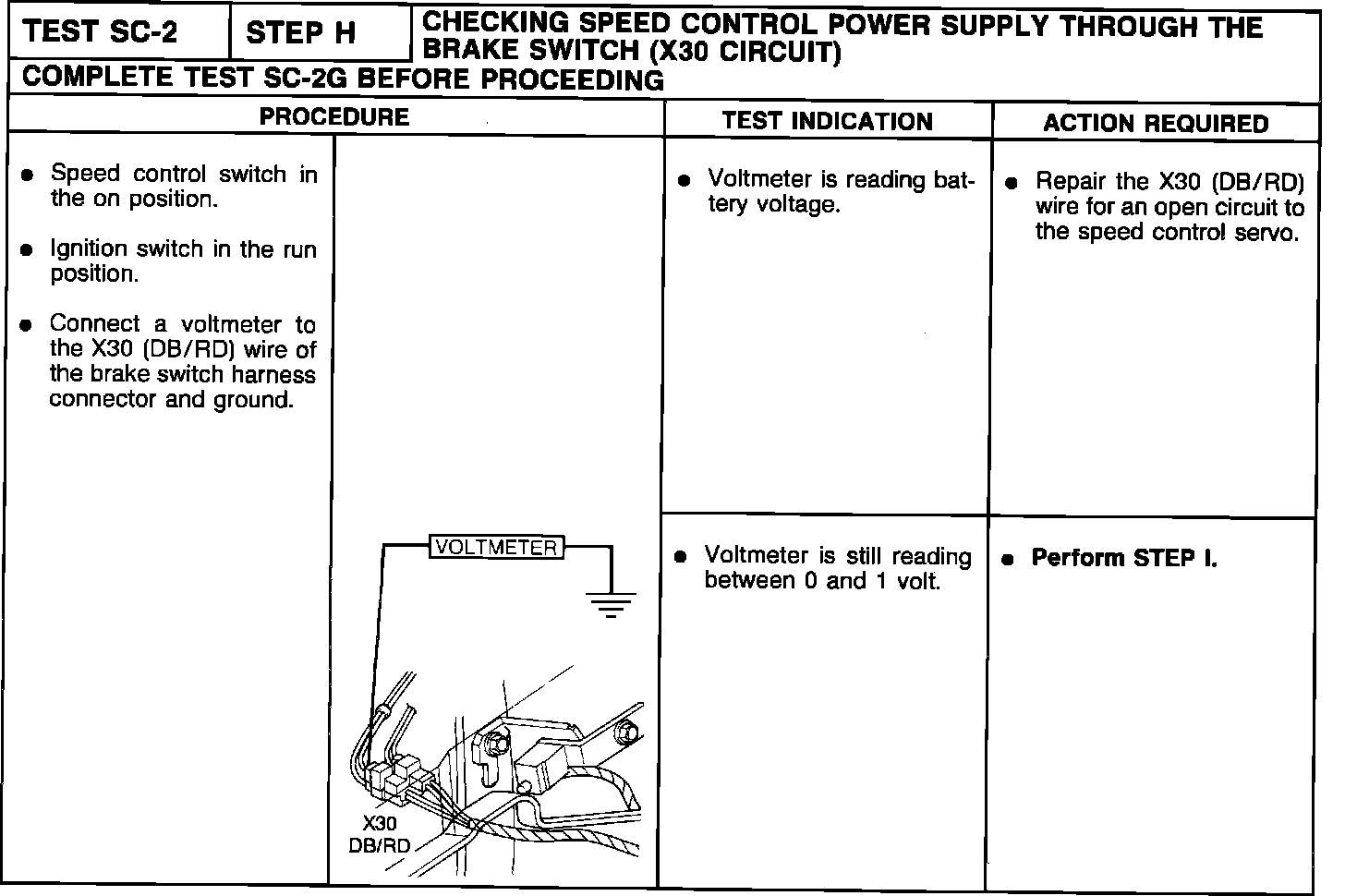

Test 2-Step H, Power Supply Through The Brake Switch:
