Home >> Chrysler >> 1988 >> Lebaron Convertible L4-135 2.2L SOHC Turbo VIN E FI >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Speed Control (SC) Tests >> SC-2D Vent Solenoid Circuit In the SMEC

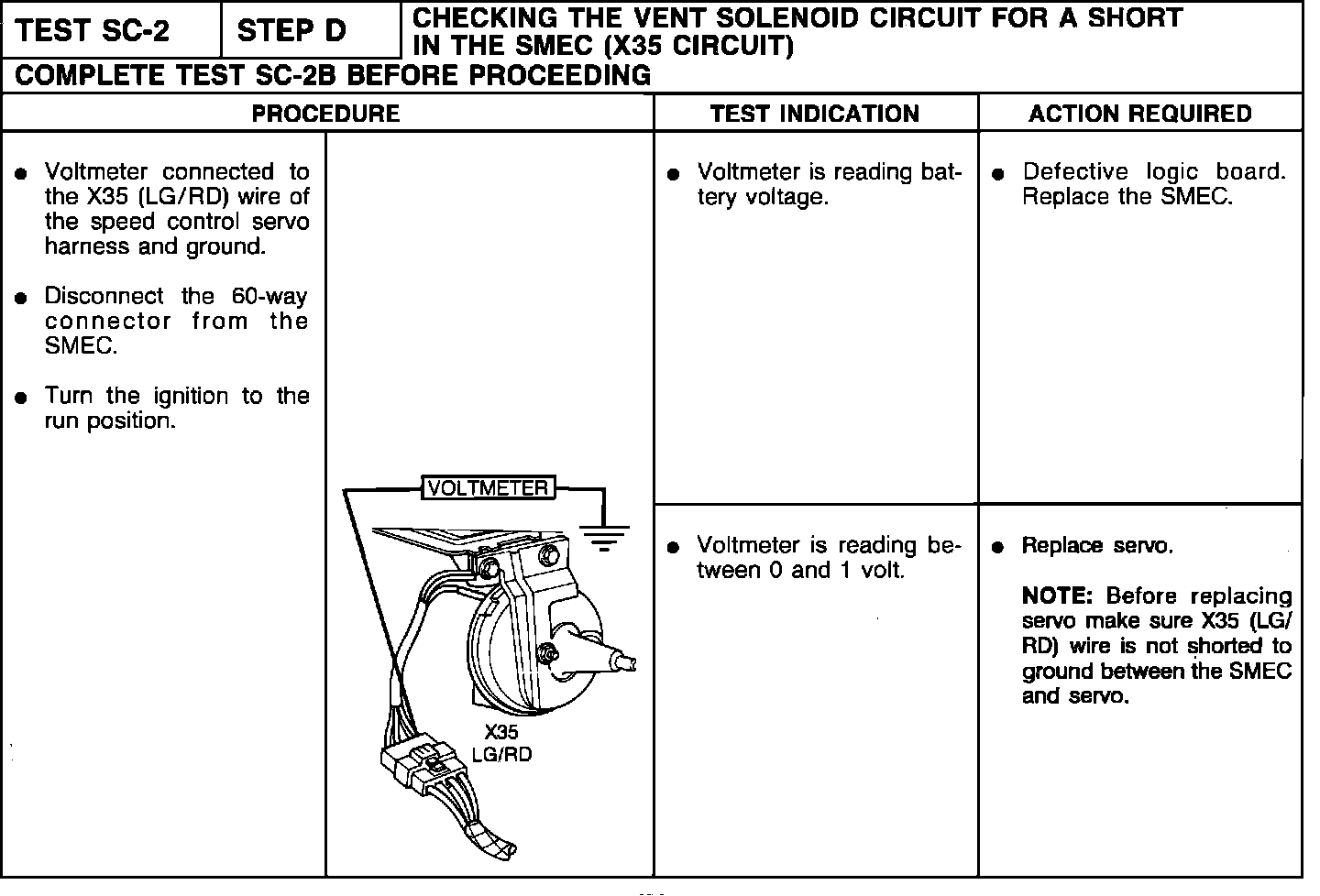

SC-2D Vent Solenoid Circuit In the SMEC

Test 2-Step D, Vent Solenoid Circuit In The SMEC:
