Home >> Chrysler >> 1988 >> Lebaron Convertible L4-135 2.2L SOHC Turbo VIN E FI >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Speed Control (SC) Tests >> SC-2C Vent Solenoid Wire to the SMEC

SC-2C Vent Solenoid Wire to the SMEC

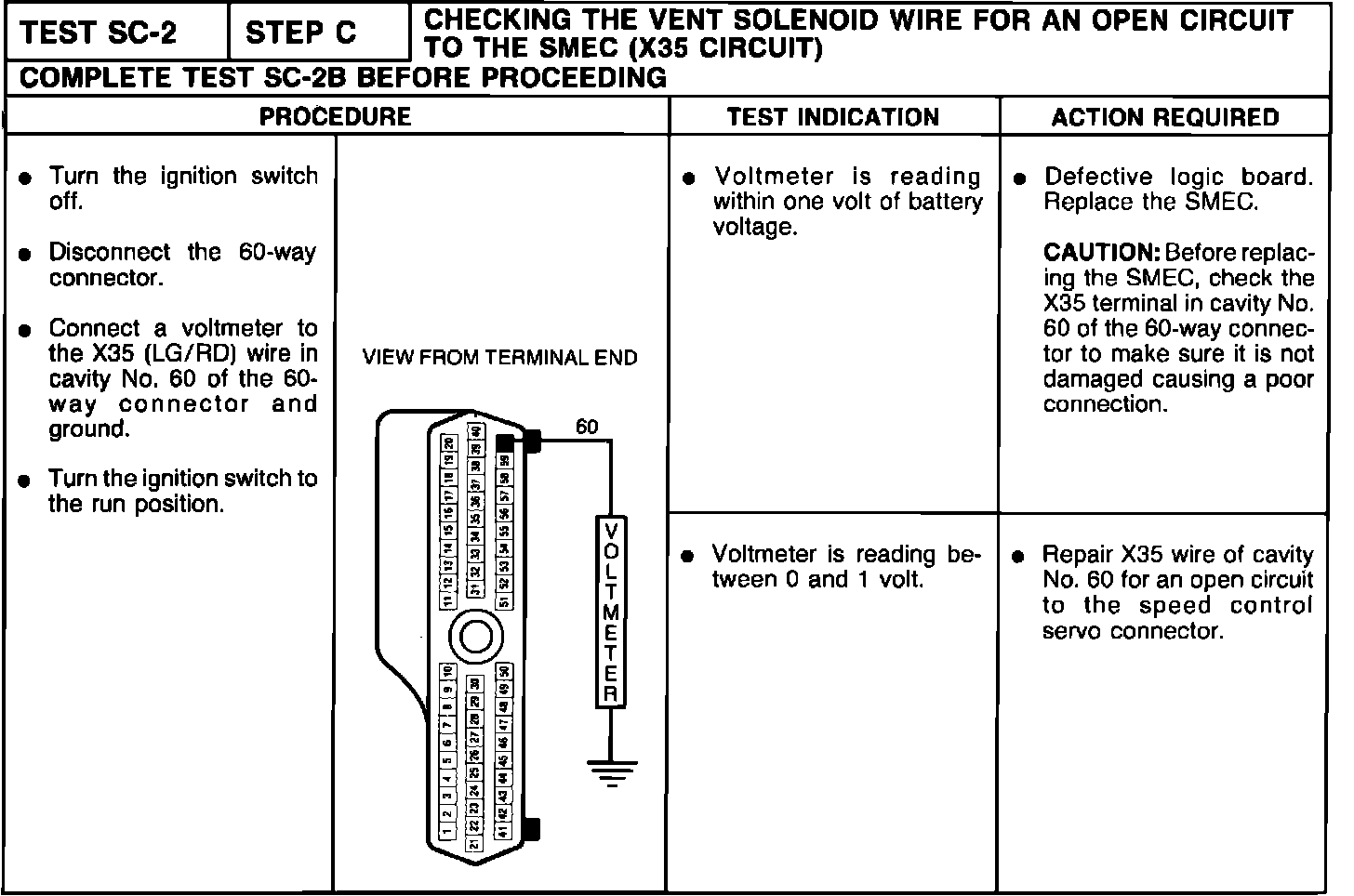

Test 2-Step C, Vent Solenoid Wire To The SMEC:
