SC-2A Fault Code 34-Speed Control Servo (Vacuum)

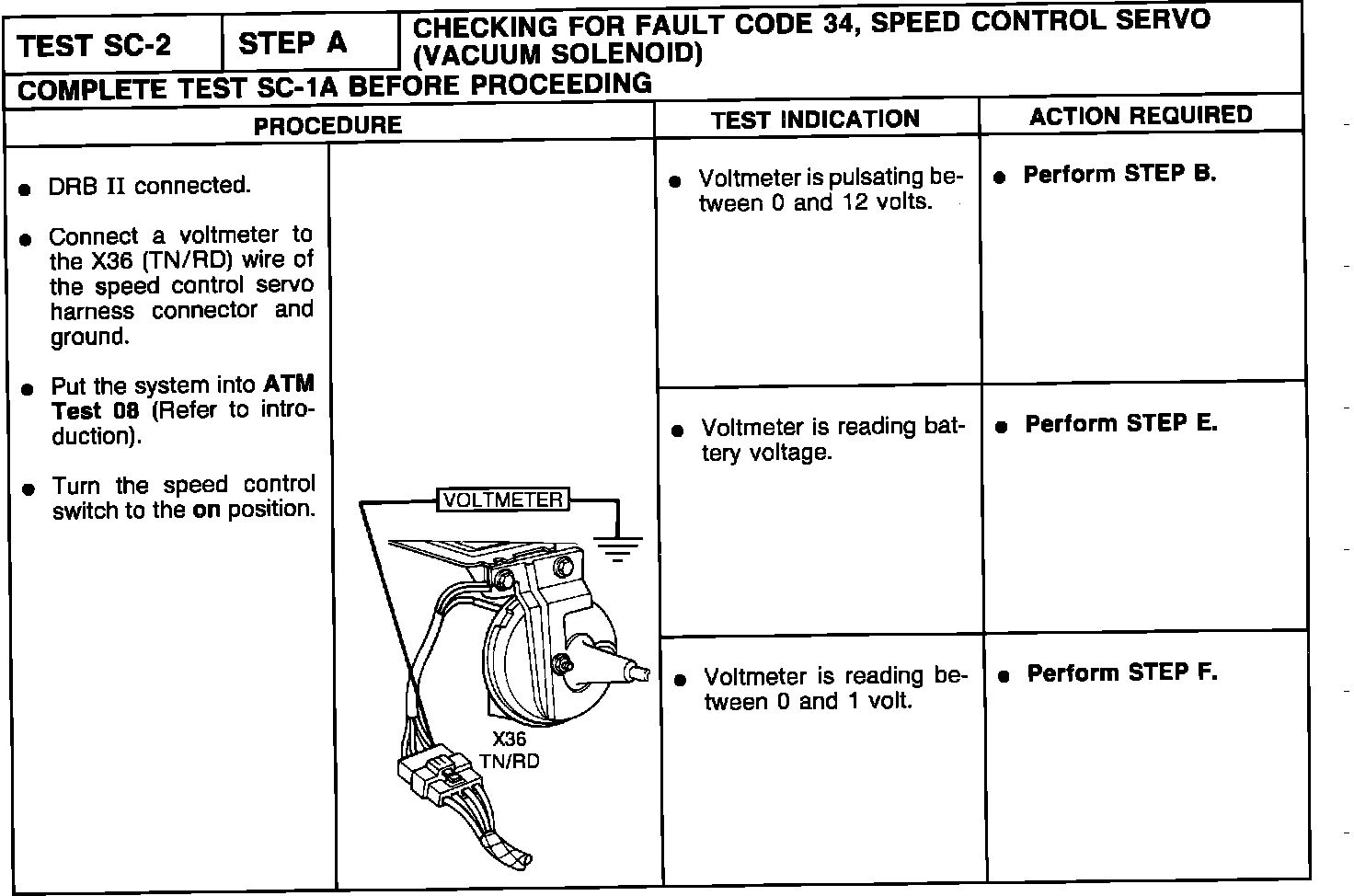

Test 2-Step A, Fault Code 34 - Speed Control Servo:
