Home >> Chrysler >> 1988 >> Lebaron Convertible L4-135 2.2L SOHC Turbo VIN E FI >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Speed Control (SC) Tests >> SC-1B Switch Inputs to the SMEC

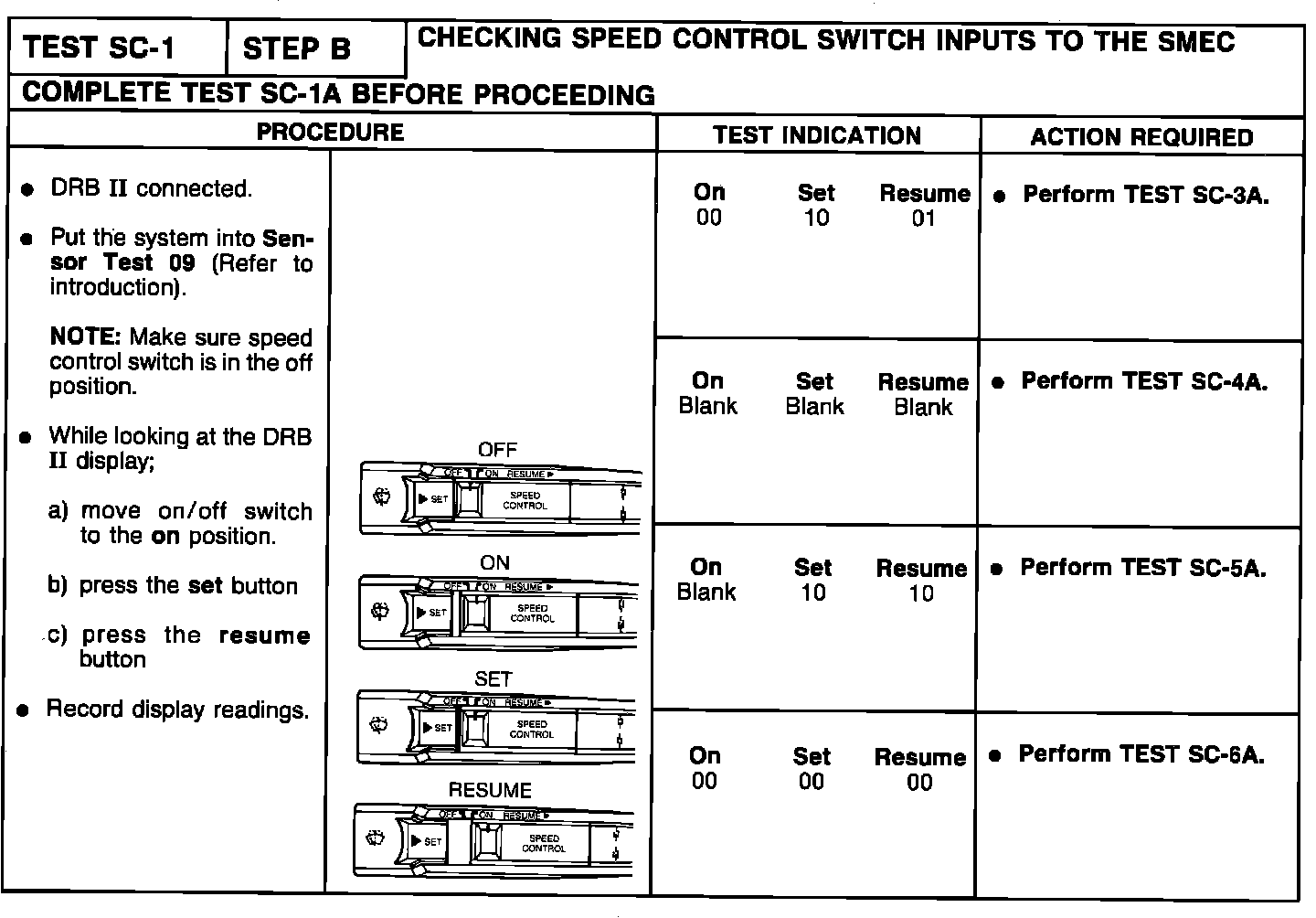

SC-1B Switch Inputs to the SMEC

Test 1-Step B, Speed Control Switch Inputs To The SMEC:
