Lebaron Convertible L4-135 2.2L SOHC Turbo VIN E FI
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Speed Control (SC) Tests
>>
SC-1A Check Speed Control System For Fault Codes
SC-1A Check Speed Control System For Fault Codes

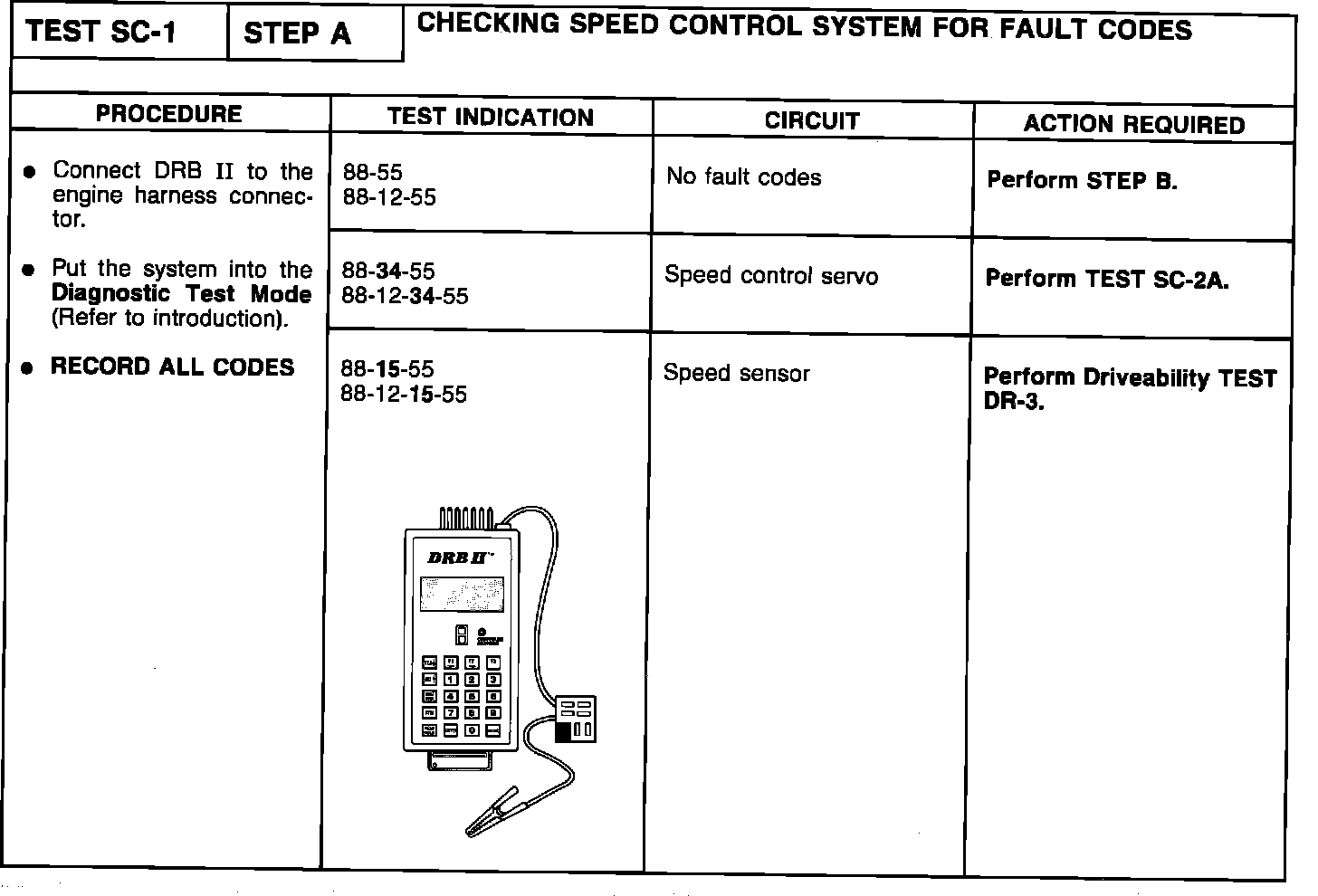

Test 1-Step A, Checking Speed Control System For Fault Codes:
