CH-5C Charging System Control Circuit
CH-5C Charging System Control Circuit

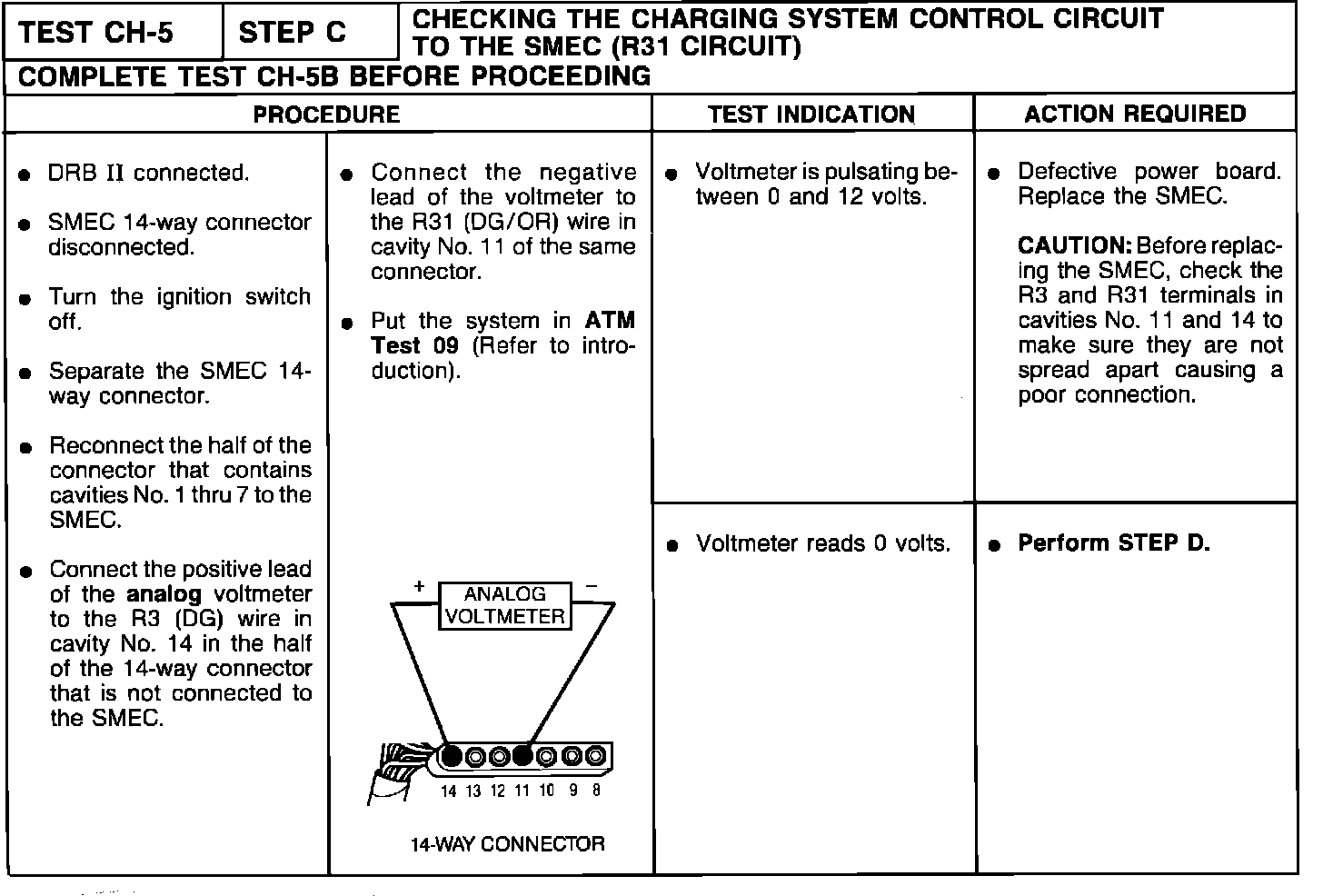

Test 5-Step C, Charging System Control Circuit:
