CH-5B Alternator Field Control Wire
CH-5B Alternator Field Control Wire

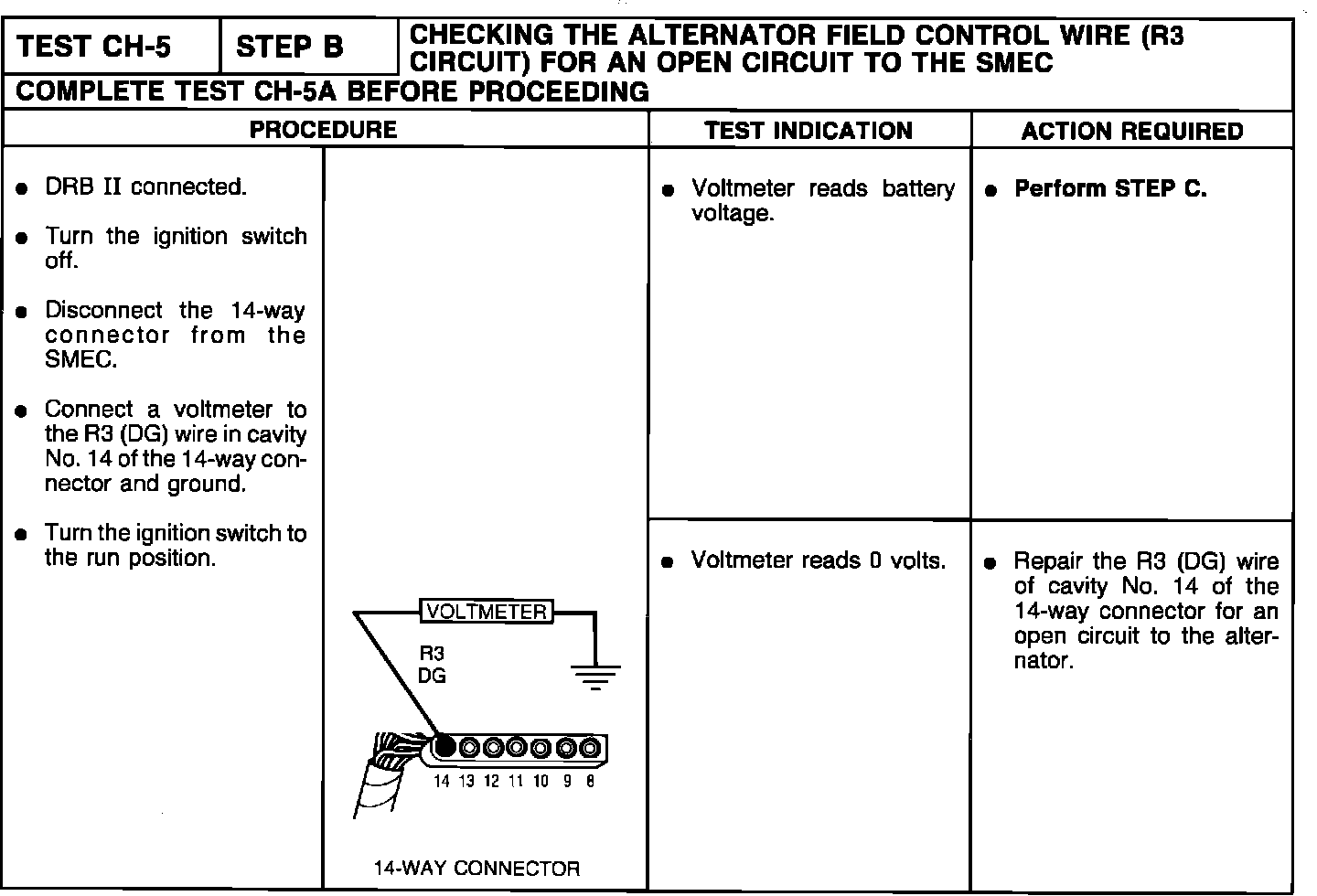

Test 5-Step B, Alternator Field Control Wire:
