Lebaron Convertible L4-135 2.2L SOHC Turbo VIN E FI
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Charging System (CH) Tests
>>
CH-5A Fault Code 41 or 41-47 or 47 Alternator Field
CH-5A Fault Code 41 or 41-47 or 47 Alternator Field

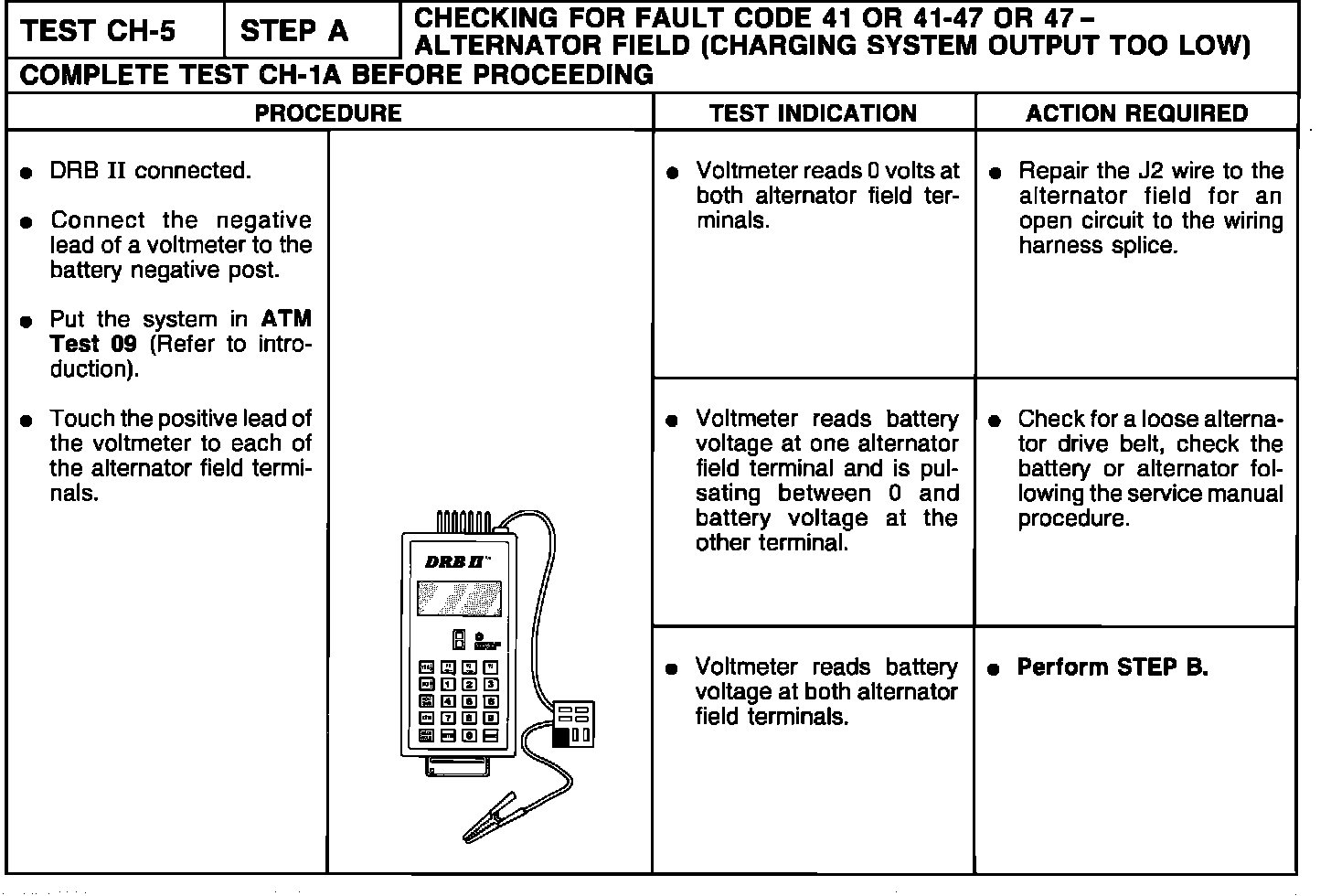

Test 5-Step A, Fault Code 41 or 41-47 or 47 - Alternator Field:
