Home >> Chrysler >> 1988 >> Lebaron Convertible L4-135 2.2L SOHC Turbo VIN E FI >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Charging System (CH) Tests >> CH-4C Charging System Control of the SMEC

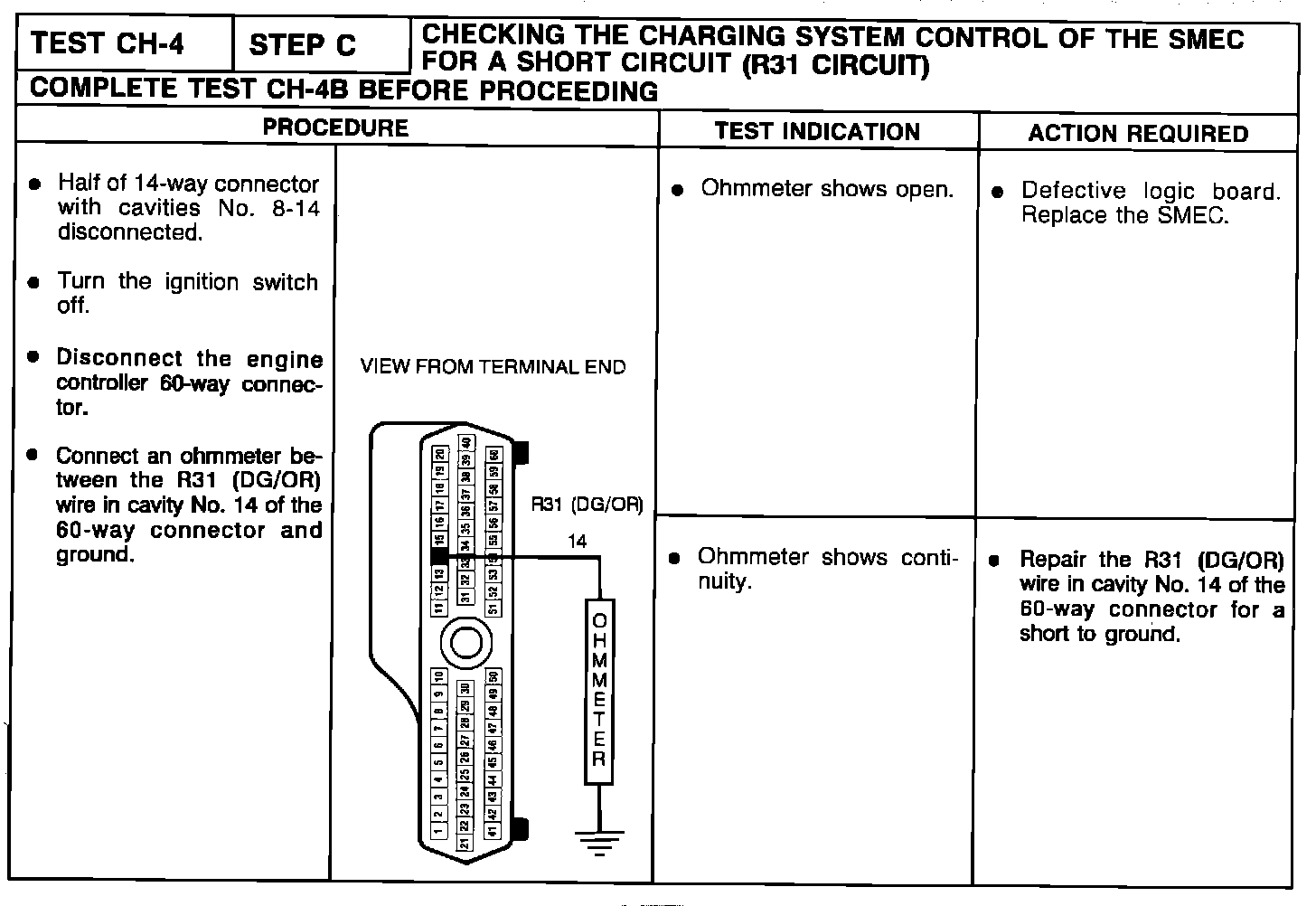

CH-4C Charging System Control of the SMEC

Test 4-Step C, Charging System Control Of The SMEC:
