Lebaron Convertible L4-135 2.2L SOHC Turbo VIN E FI
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Charging System (CH) Tests
>>
CH-4A Fault Code 46 or 41-46 Alternator Field
CH-4A Fault Code 46 or 41-46 Alternator Field

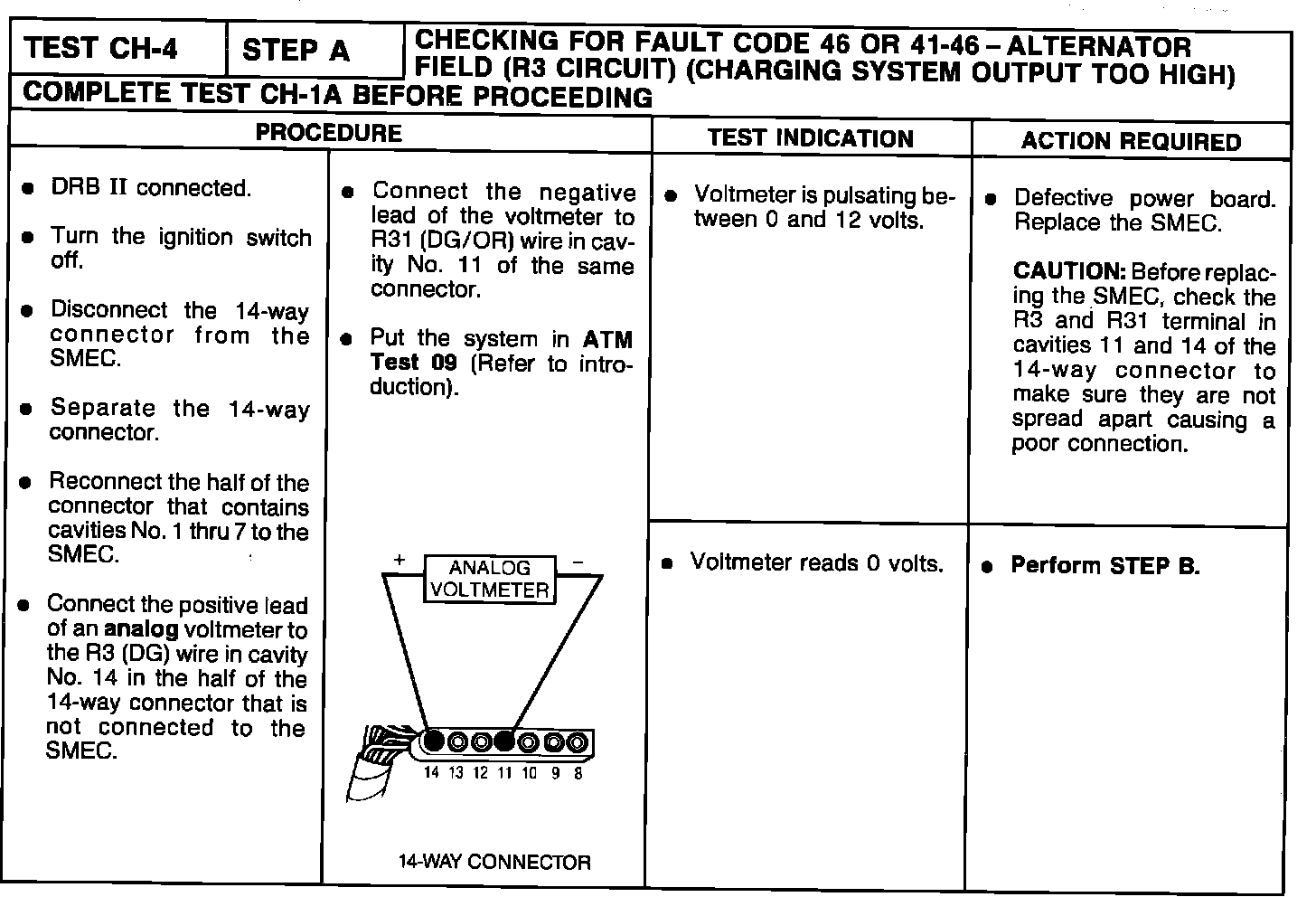

Test 4-Step A, Fault Code 46 or 41-46 - Alternator Field:
