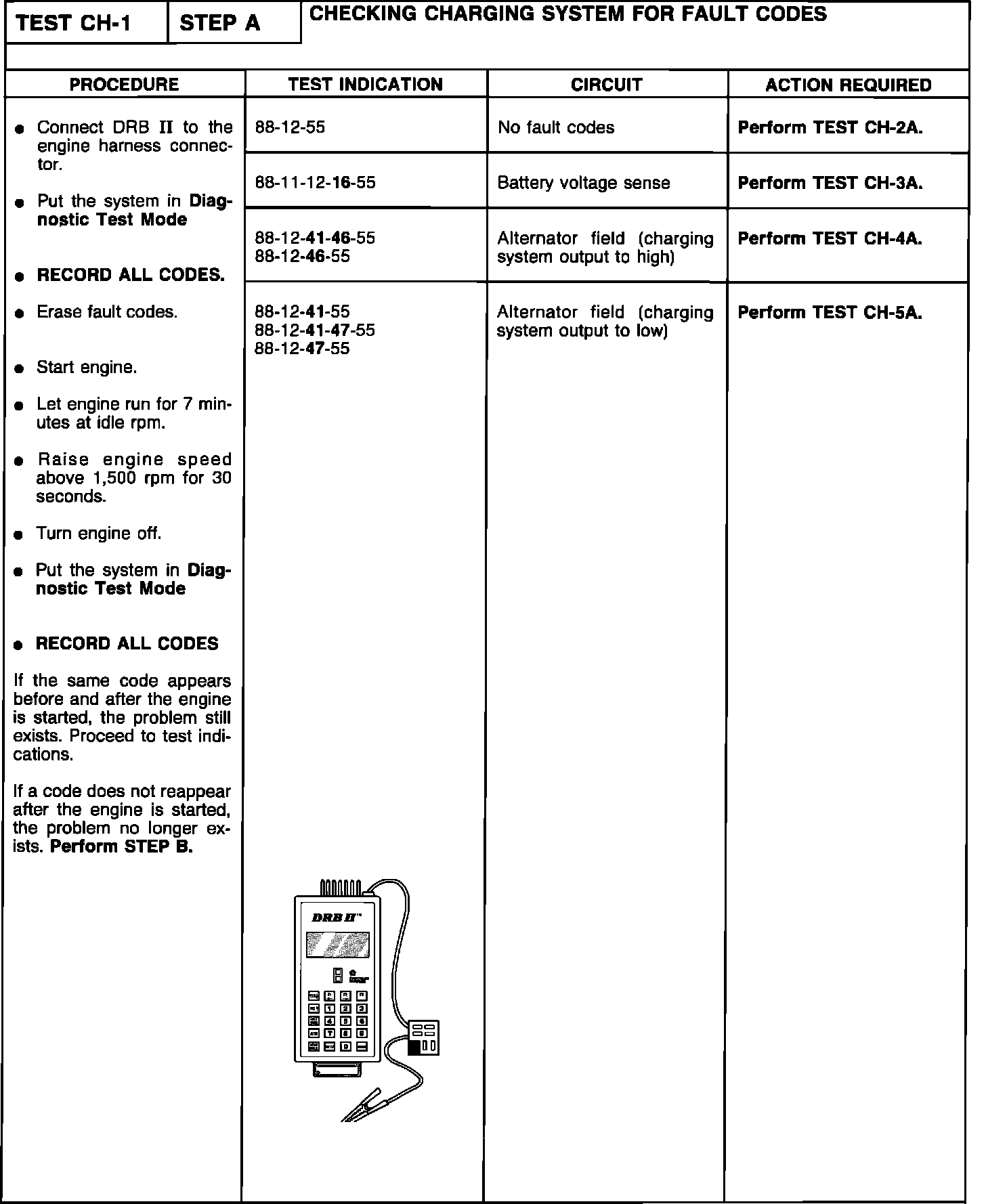

CH-1A Checking Charging System For Fault Codes

Test 1-Step A, Checking Charging System For Fault Codes:
