Home >> Chrysler >> 1987 >> Lebaron Convertible L4-153 2.5L SOHC VIN K TBI >> Repair and Diagnosis >> Diagrams >> Vacuum and Vapor Hose Diagrams >> Emission Control Systems >> California

California

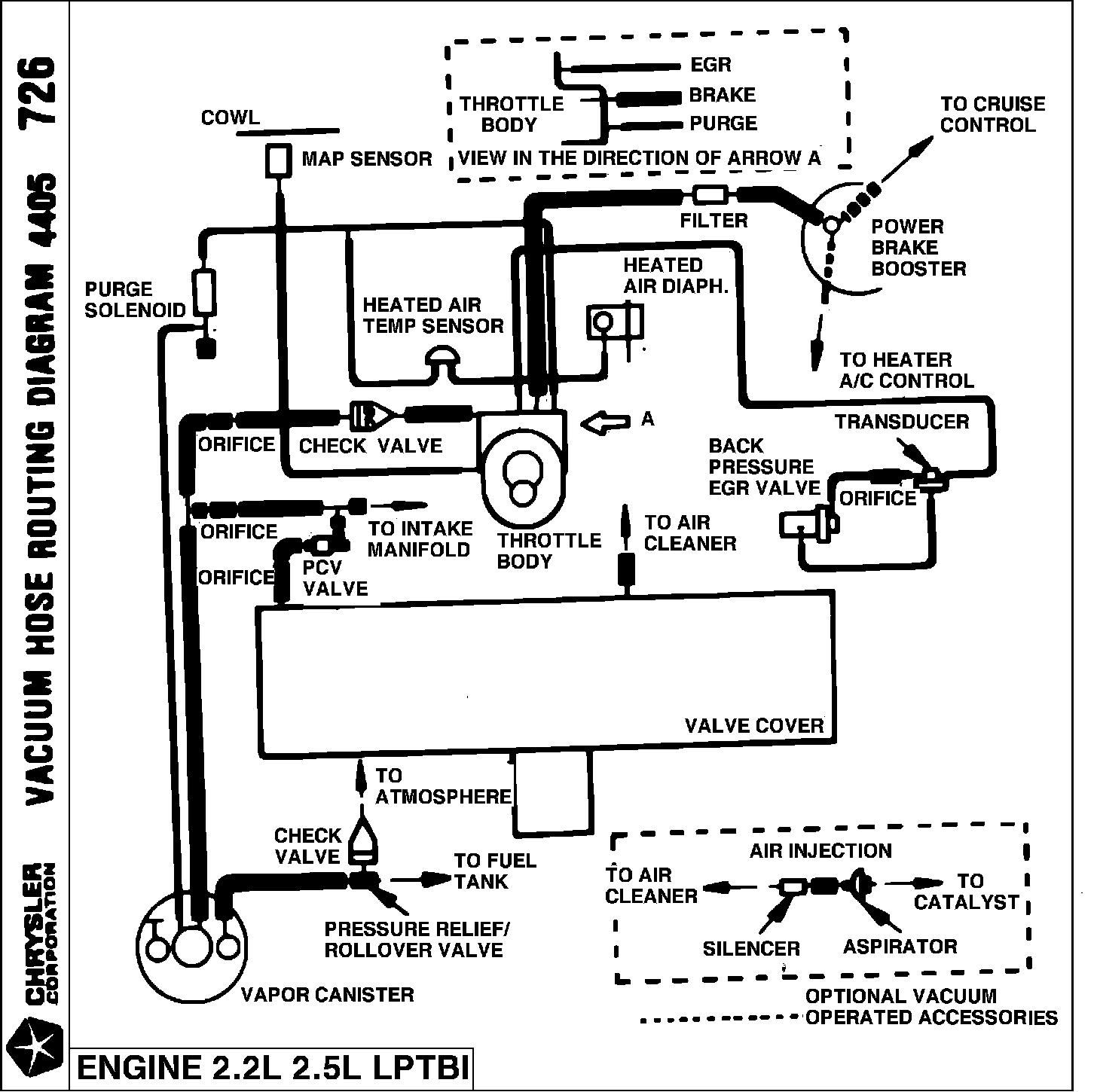

Fig. 3 Vacuum Hose Routing. 1987 4-135/2.2L & 4-153/2.5L, TBI:
