Ignition Timing: Specifications

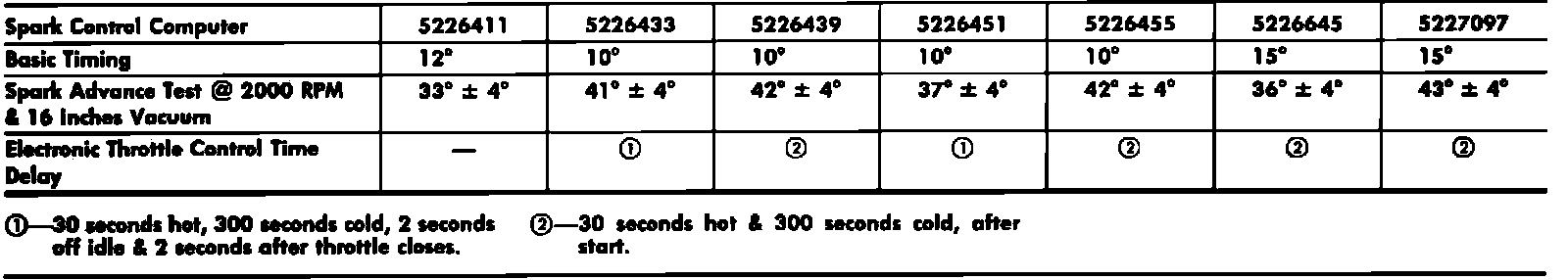

Electronic Spark Control Specs (1986-87 FWD):



TIMING SPECS. 2.0L, 2.2L, 2.5L & 2.6L:
