No Continuous Wiping With Washer Operating

Intermittent wipe and standard two-speed motors are identical. Refer to TWO SPEED WIPER SYSTEM in this section for diagnosis of system problems not involving the delay function.

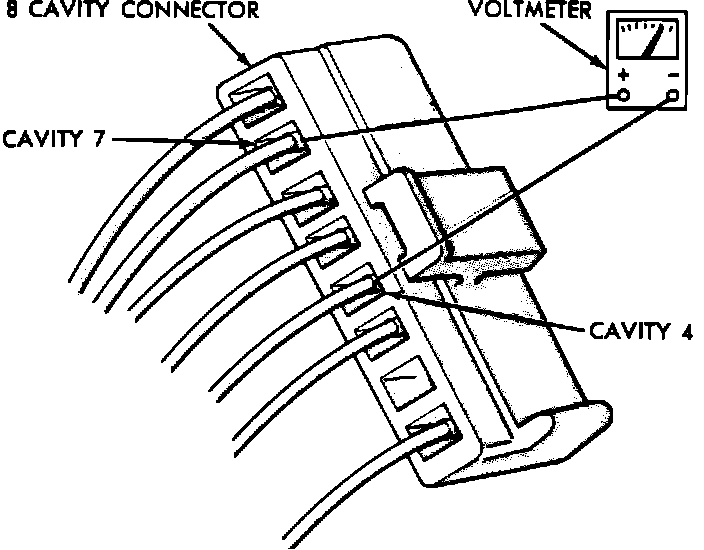

Voltmeter Between Cavities 4 And 7:

1. Unplug connector from intermittent wipe control unit.
2. Connect voltmeter between cavities "4" and "7."
3. Depress wash switch.
4. If voltage reads 0V, check switch and wiring.
5. If reading is 10 - 15V, control unit is faulty and should be replaced.
