Infinity Speaker System - Introduction
87chrysler7Models
1987 "E" & "H" Body Vehicles
Subject
Infinity Speaker System
Index
ELECTRICAL
Date
August 10, 1987
No..
08-19-87 (C24-08)
P-2820
The Chrysler Infinity Speaker System is a late 1987 introduction option on "E" and "H" body vehicles. Included in this bulletin is a brief background of the system, as well as pertinent service and parts information.
Background
Chrysler, in conjunction with Infinity Systems, Inc., has created a high performance automotive audio system optimized for the 1987 Chrysler New Yorker, Chrysler LeBaron GTS, and Dodge Lancer. Using advanced audio measurement techniques, special electronic circuitry compensates for vehicle acoustic parameters, and has been incorporated into every Chrysler-Infinity Sound System. The radio/cassette player, amplifiers, and speakers have all been designed to provide the best possible overall performance in each individual vehicle.
The Chrysler-Infinity Sound System utilizes eight speakers in six locations; two IP 3/4" dome tweeters, two 5-1/4" round front door woofers, and two 5-1/2" x 7-1/2" oval coax speakers (tweeter and woofer) in the rear. All woofers in this system have individual amplifiers attached to the back of the speaker baskets, specially adjusted for each vehicle's acoustics. The tweeters (both IP and rear coax) are individually driven by the four amplifiers in the radio. There are 32 watts powering the tweeters and an additional 56 watts driving the woofers.
The Chrysler-Infinity Speaker System is only compatible with the proper Chrysler-Infinity radio (indicated on the radio face plate). Aftermarket and non-Chrysler-Infinity corporate radios will not operate with the Chrysler-Infinity Speaker System.
FIGURE 1:

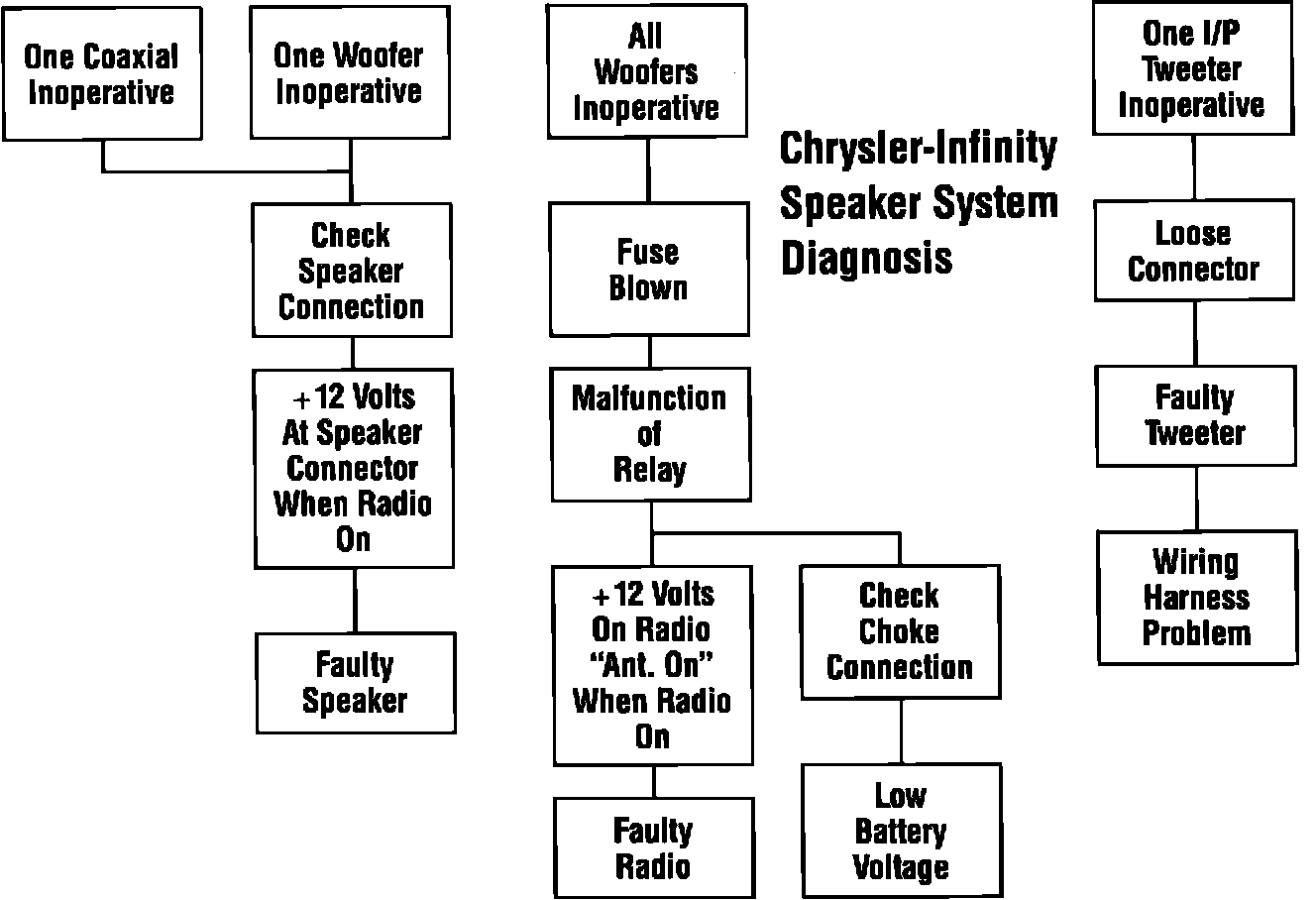

System Diagnosis (Figure 1)
Speaker Replacement
Instrument Panel Speakers
Refer to "Instrument Panel and Gauges" Group of the service manuals for instrument panel component service. After the trim cover panel or bezel is removed, speaker replacement is accomplished by removing the speaker attaching screws and disconnecting the wiring.
Door and Rear Speakers
Refer to "Body" Group of the service manual for trim panel removal and installation. After the trim panel is removed, speaker replacement is accomplished by removing the speaker attaching screws and disconnecting the wiring.
Wiring Diagram
Refer to the 1987 Front Wheel Drive Service Manual for wiring diagrams.
Service Part Numbers
Part Number Description Vehicle
4372151 1" Diameter Instrument Panel Tweeter New Yorker
4372154 5.25" Door Woofer New Yorker
4372157 5.5" x 7.5" Rear Coaxial Speaker New Yorker
4430171 Choke Assembly New Yorker,
Lancer,
LeBaron GTS
4372445 1987 Chrysler/Infinity Radio New Yorker
4372152 1" Diameter Instrument Panel Tweeter Lancer,
LeBaron GTS
4372156 5.25" Door Woofer Lancer,
LeBaron GTS
4372411 5.5" x 7.5" Rear Coaxial Speaker Lancer,
LeBaron GTS
4373109 Relay Lancer,
LeBaron GTS
4372444 1987 Chrysler/Infinity Radio Lancer,
LeBaron GTS
POLICY: Information only
