Refrigerant Pressure Sensor / Switch: Locations

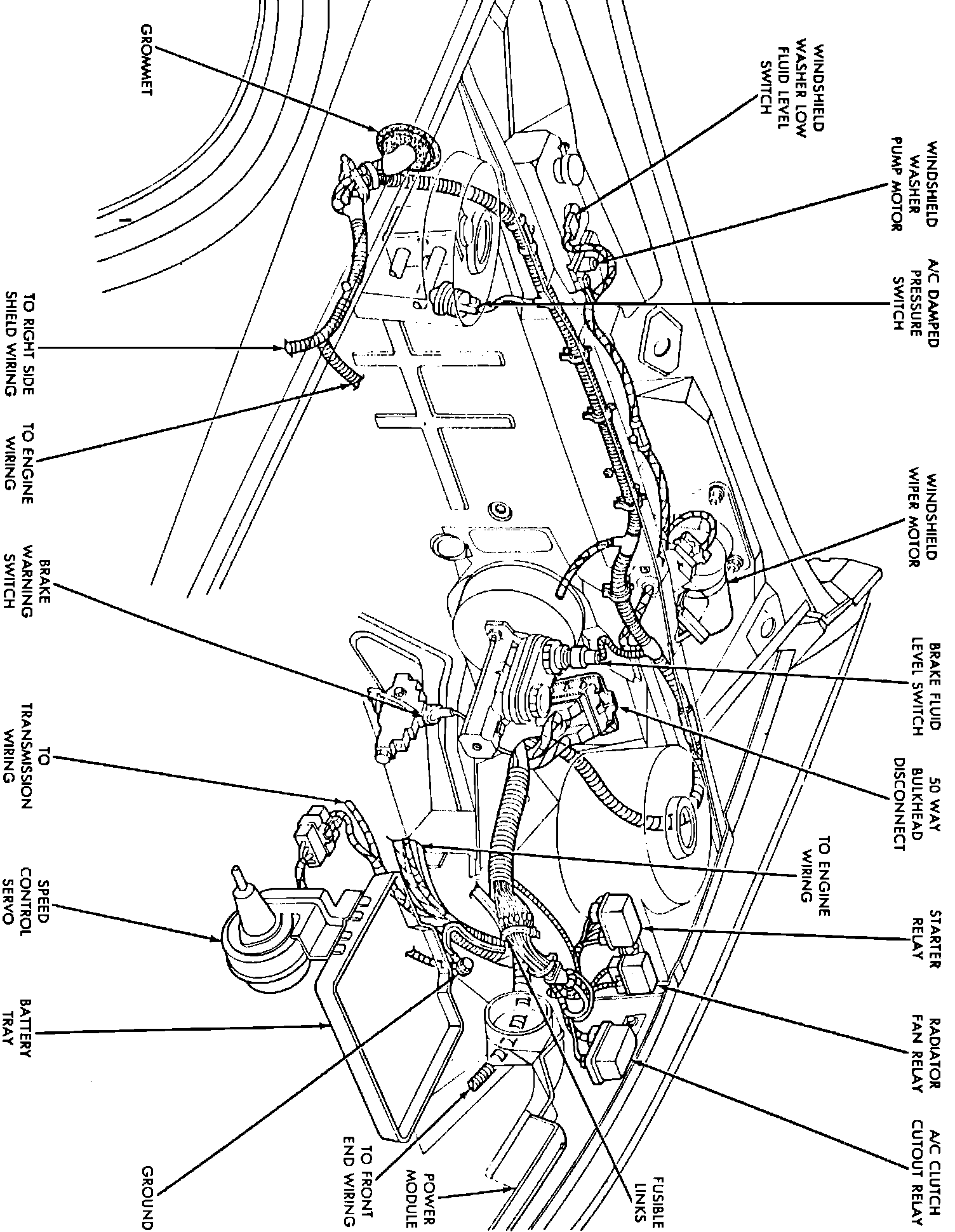

Front end & engine compartment components.:




On LH Strut Tower

Applicable to: 1987 LeBaron Coupe & LeBaron Convertible
