E-Body 4-Door & M-Body 4-Door Information
E-Body 4-Door (Plymouth Caravelle, Dodge 600, and Chrysler New Yorker)CAUTION: THIS PACKAGE IS ONLY FOR DEALER INSTALLATION IN 1982 AND LATER MODELS LISTED ABOVE. DO NOT ATTEMPT INSTALLATION IN ANY OTHER VEHICLE. FOLLOW THESE INSTRUCTIONS CAREFULLY AND USE ONLY THE SPECIFIED PARTS.

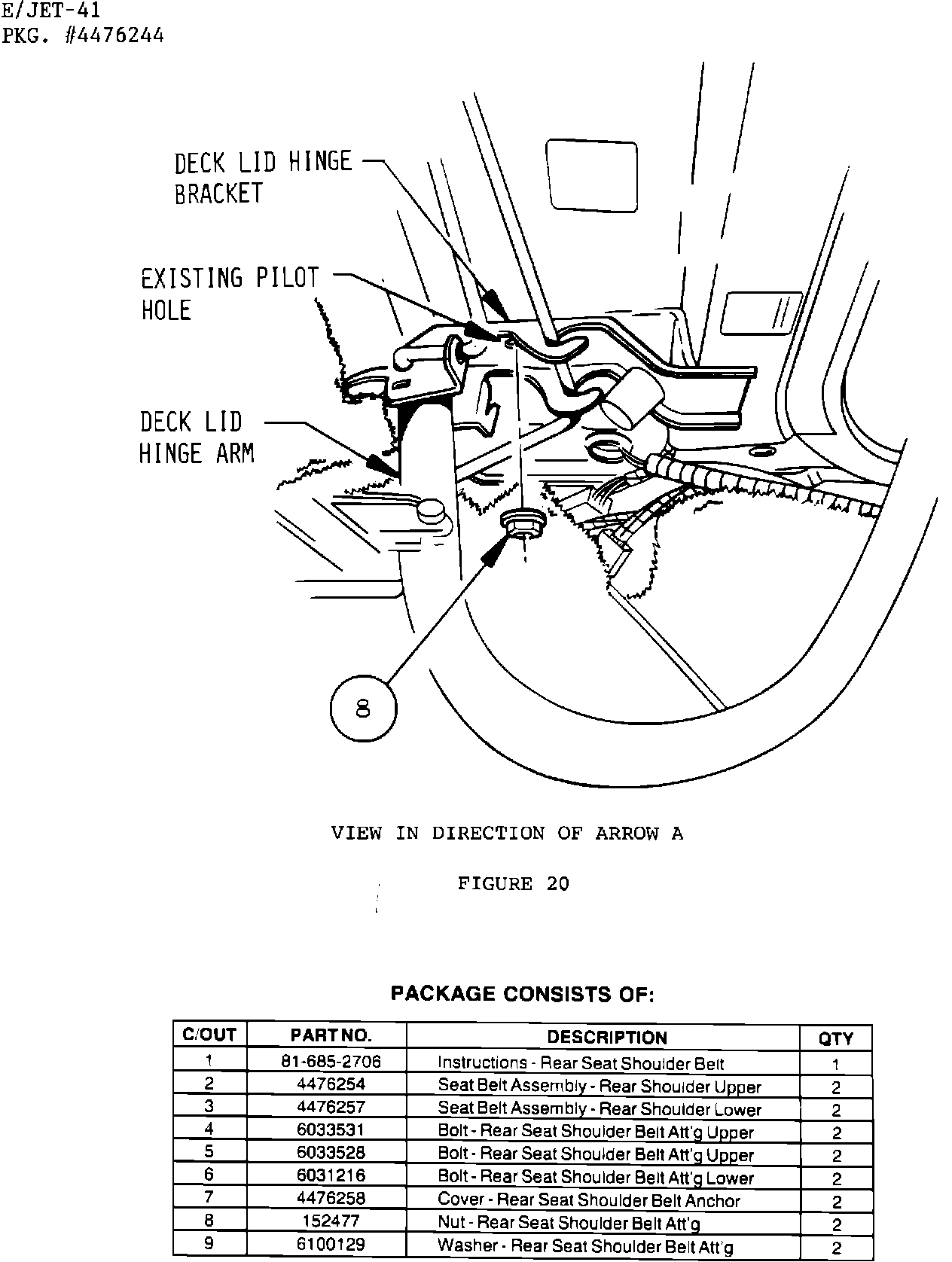

FIGURE 20:
Upper Rear Shoulder Belt Installation
1. From inside of trunk, locate the 7/16" hole (11.1 mm) in the hinge support (Figure 20). Drill a 1/8" (3.18 mm) pilot hole up through the center of the 7/16" hole and through the shelf panel and shelf trim. (Trunk lid must be partially closed. An offset or right angle drill may be needed due to lack of space. Drill left and right sides.)
2. Remove shelf trim panel and enlarge the 1/8" holes to 1" (25.4 mm). On the New Yorker, the holes must also be cut in the rear window trim molding.
3. Enlarge pilot holes in the metal shelf panel and hinge support to 7/16" (Figure 20).

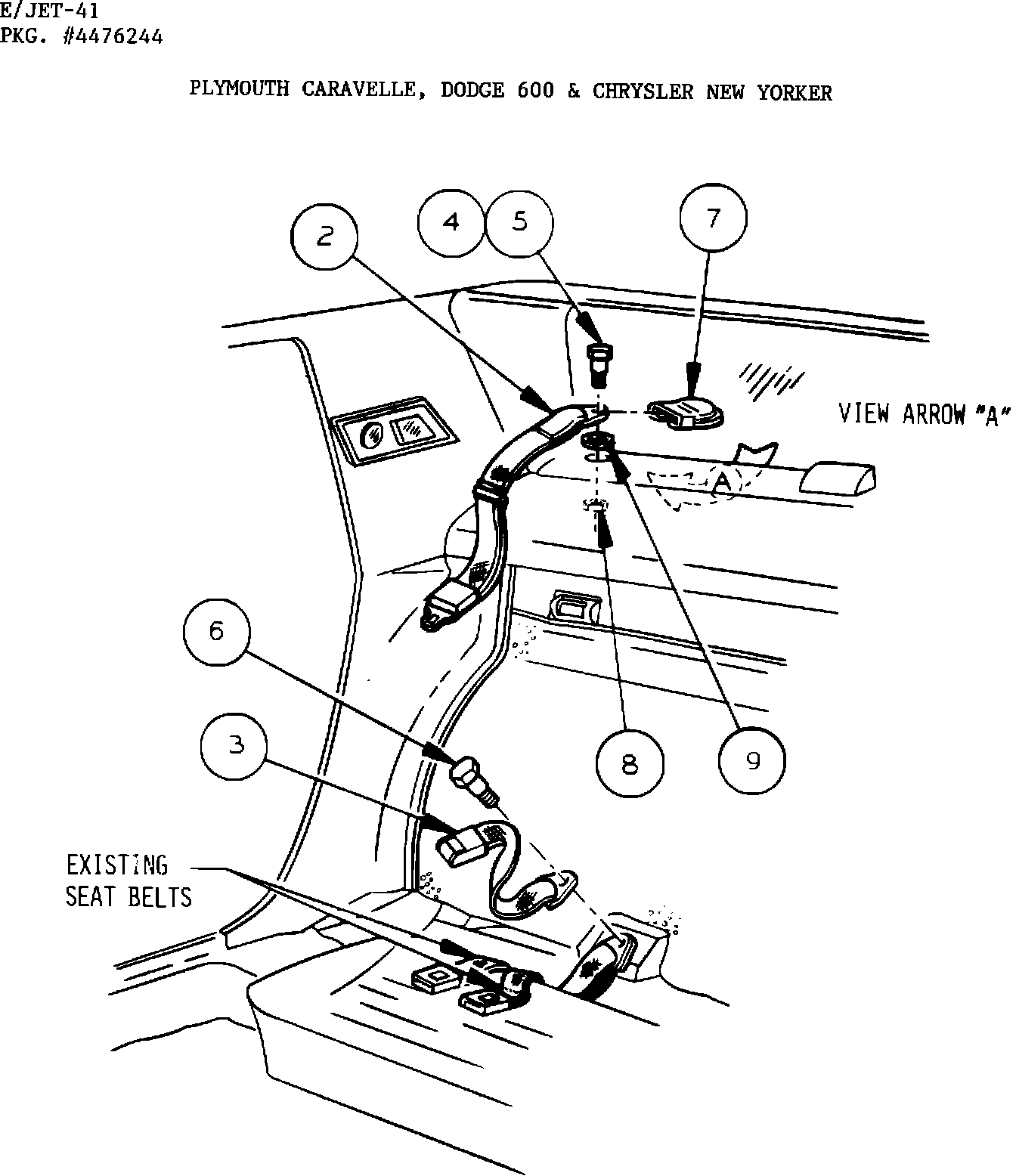

FIGURE 19 - (SEE FIGURE 20 FOR LEGEND):
4. Reinstall shelf trim panel and trim molding.
5. Install upper shoulder belt, PN 4476254, using the following anchor bolts:
- For Caravelle and 600, use bolt, PN 6033531. (PN is on bolt head.)
- For New Yorker, use the longer bolt, PN 6033528 (Figure 19).
6. As shown in Figure 19, insert bolt through seat belt anchor plate. Install washer, PN 6100129, on the bolt. White label on seat belt should face down.
FIGURE 20:
7. Insert the bolt and washer through the hole in the shelf trim. (The washer must go through the trim and contact the metal shelf panel.) From the trunk, install flange nut, PN 152477. Tighten nut securely to 350 inch pounds torque (Figure 20).

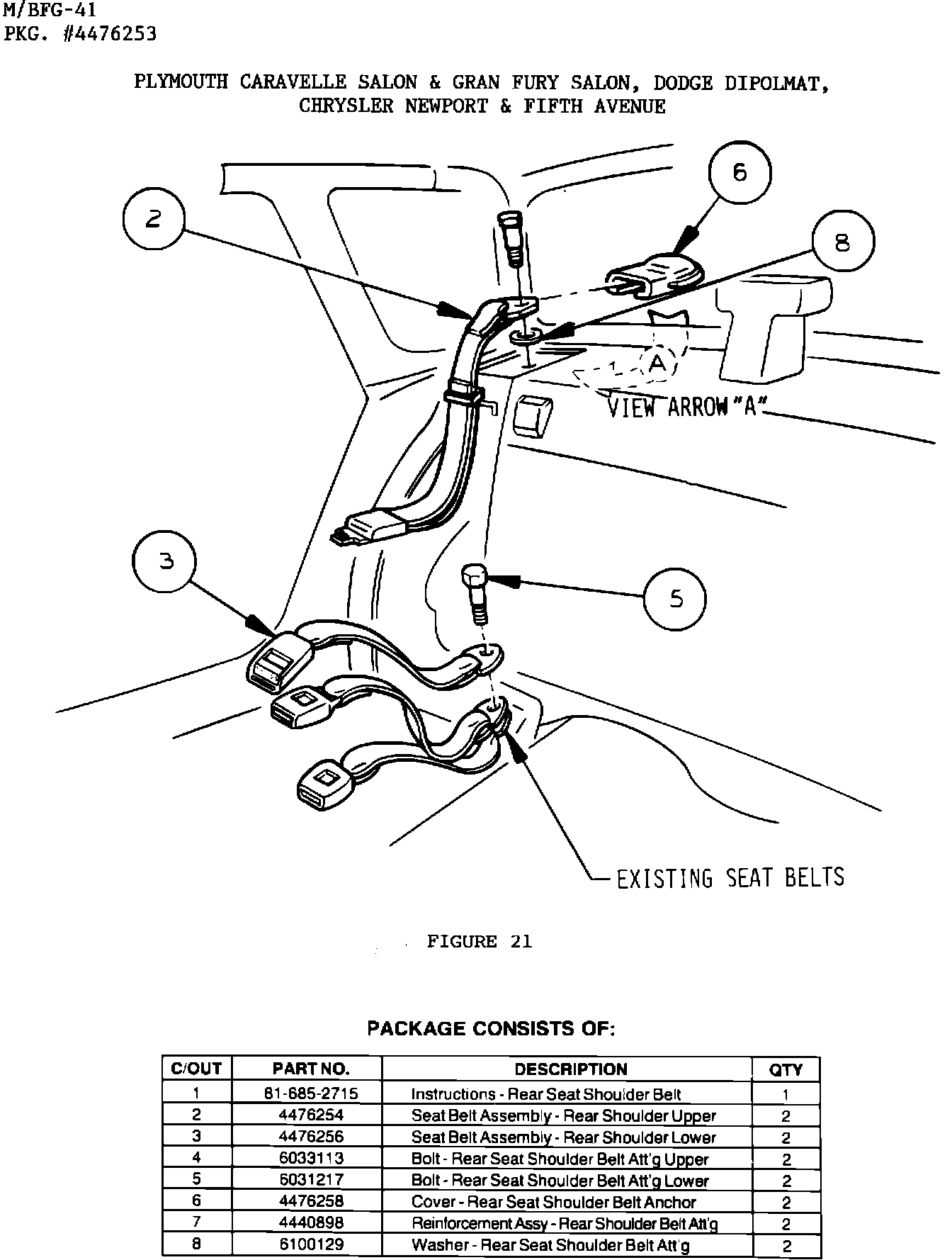

FIGURE 19 - (SEE FIGURE 20 FOR LEGEND):
8. Install trim cover, PN 4476258. Slide it over the seat belt anchor plate and bolt (Figure 19).
9. Repeat Steps 5 through 8 for the other side.
Lower Rear Shoulder Belt Installation
1. Remove the rear seat cushion and the attaching bolts (one per side) for the lower inner lap seat belts (Figure 19).
NOTE: DO NOT REMOVE OR REARRANGE THE EXISTING SEAT BELTS.
2. Discard the existing bolts and substitute the red colored bolts, PN 6031216, in Step 3 (K-15 is on the bolt head).
3. Install lower shoulder belts, PN 4476257, on top of the existing lower inner seat belts and tighten the new bolts to 350 inch pounds torque. Reinstall seat cushion. The white label on the seat belt should face down (Figure 19).
CAUTION: CHECK THAT BOTH THE LAP AND SHOULDER BELTS LATCH AND UNLATCH PROPERLY AND ARE INSTALLED AS SHOWN IN FIGURE 19. MAKE SURE THAT THE SEAT BELTS DO NOT CONTACT ANY SHARP EDGES THAT COULD CUT THE WEBBING.
M-Body 4-Door (Plymouth Gran Fury, Dodge Diplomat, Chrysler Newport and Fifth Avenue)
CAUTION: THIS PACKAGE IS ONLY FOR DEALER INSTALLATION IN 1977 AND LATER
MODELS LISTED ABOVE. DO NOT ATTEMPT INSTALLATION IN ANY OTHER VEHICLE. FOLLOW THESE INSTRUCTIONS CAREFULLY AND USE ONLY THE SPECIFIED PARTS.

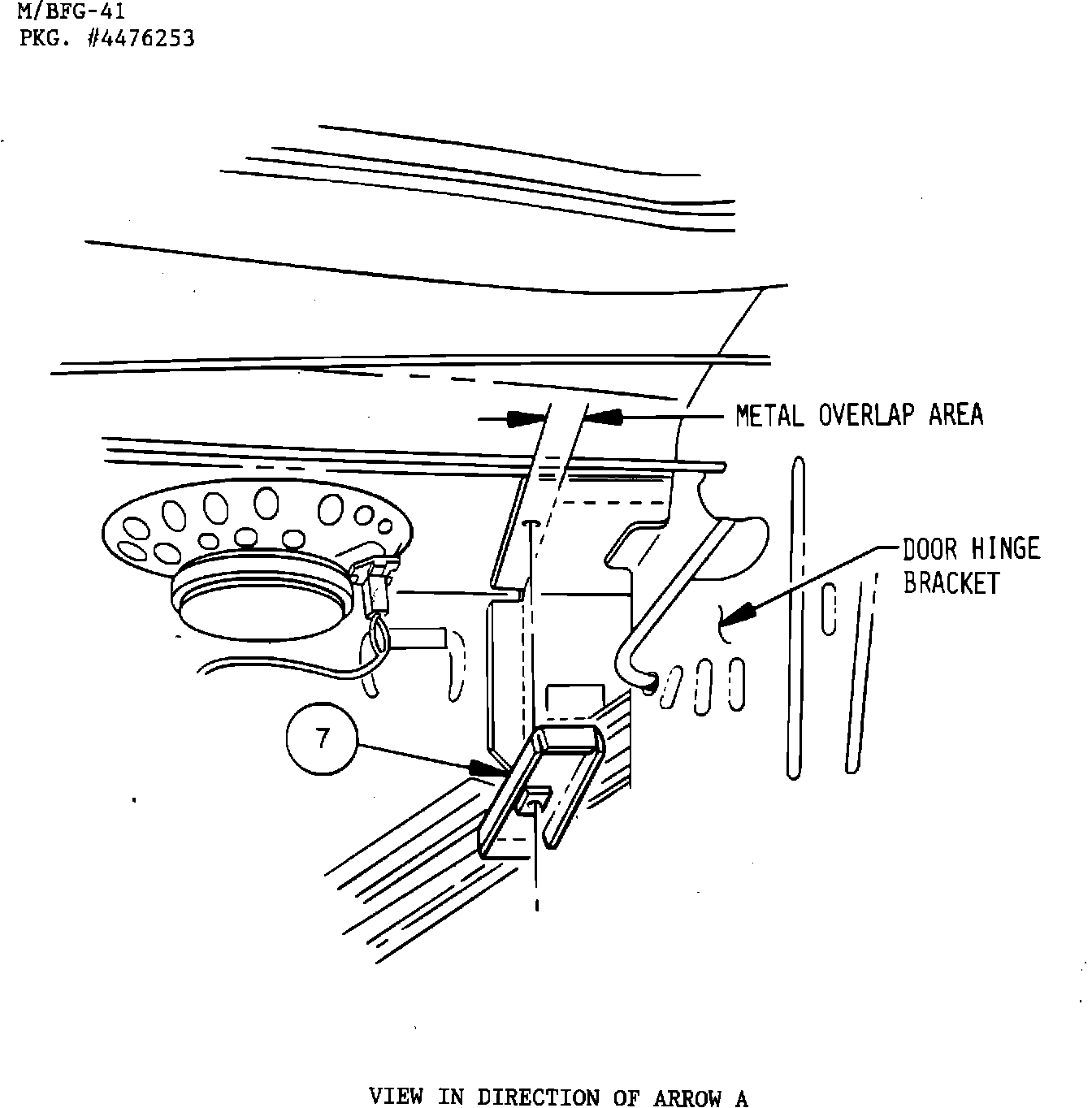

FIGURE 22:
Upper Rear Shoulder Belt Installation
1. From inside of trunk, find the location for the bolt holes as shown in view "A" on Figure 22. Using the reinforcement mounting bracket as a template, place it up against the shelf panel and forward against the vertical wall of the shelf. Locate the bracket where the shelf panel metal overlaps the shelf extension. This point is approximately 3/8" outboard of the edge of the self extension (Figure 22).
2. Scribe a mark through the weld nut on to the shelf extension. (Color may be added to the sheetmetal to make the mark easier to see.)
3. Remove the reinforcement mounting bracket and drill a 1/8" (3.18 mm) pilot hole up at the mark through the shelf panel and shelf trim panel. Drill left and right side.
4. Carefully remove the shelf trim panel and enlarge the 1/8" pilot holes in the trim panel to 1" (25 mm).
5. Enlarge the 1/8" holes in the metal shelf panel to 7/16" (11.11 mm).
6. Reinstall shelf trim panel.
FIGURE 21:
7. Install upper shoulder belt, PN 4476254, using the bronze colored bolt PN 6033113 (6033113 is on the bolt head). The white label on the seat belt should face down (Figure 21).
8. As shown in Figure 21, insert bolt through seat belt anchor plate. Install washer, PN 6100129, on the bolt.
FIGURE 22:
9. Insert the bolt and washer through the hole in the shelf trim. (The washer must go through the trim and contact the shelf panel metal). From the trunks, install the reinforcement bracket (Figure 22). Tighten the bolt securely to 350 inch pounds torque.
10. Install trim cover, PN 4476258. Slide it on the seat belt anchor plate and bolt.
11. Repeat Steps 7 through 10 for the other side.
FIGURE 21:
Lower Rear Shoulder Belt Installation
1. Remove the rear seat cushion and the attaching bolts (one per side) for the lower inner lap seat belts (Figure 21).
NOTE: DO NOT REMOVE OR REARRANGE THE EXISTING SEAT BELTS.
2. Discard the existing bolts and substitute the bronze colored bolts, PN 6031217, in Step 3 (K-17 is on the bolt head).
3. Install lower shoulder belts, PN 4476256, on top of the existing lower inner seat belts and tighten the new bolts to 350 inch pounds torque (Figure 21). The white label on the seat belt should face down. Reinstall seat cushion.
CAUTION: CHECK THAT BOTH THE LAP AND SHOULDER BELTS LATCH AND UNLATCH PROPERLY AND ARE INSTALLED AS SHOWN IN FIGURE 21. MAKE SURE THAT THE SEAT BELTS DO NOT CONTACT ANY SHARP EDGES THAT COULD CUT THE WEBBING.
