Rollover Valve: Service and Repair

Fuel Tank Pressure Relief And Roll-Over Valve

Removal






1. Remove fuel tank.

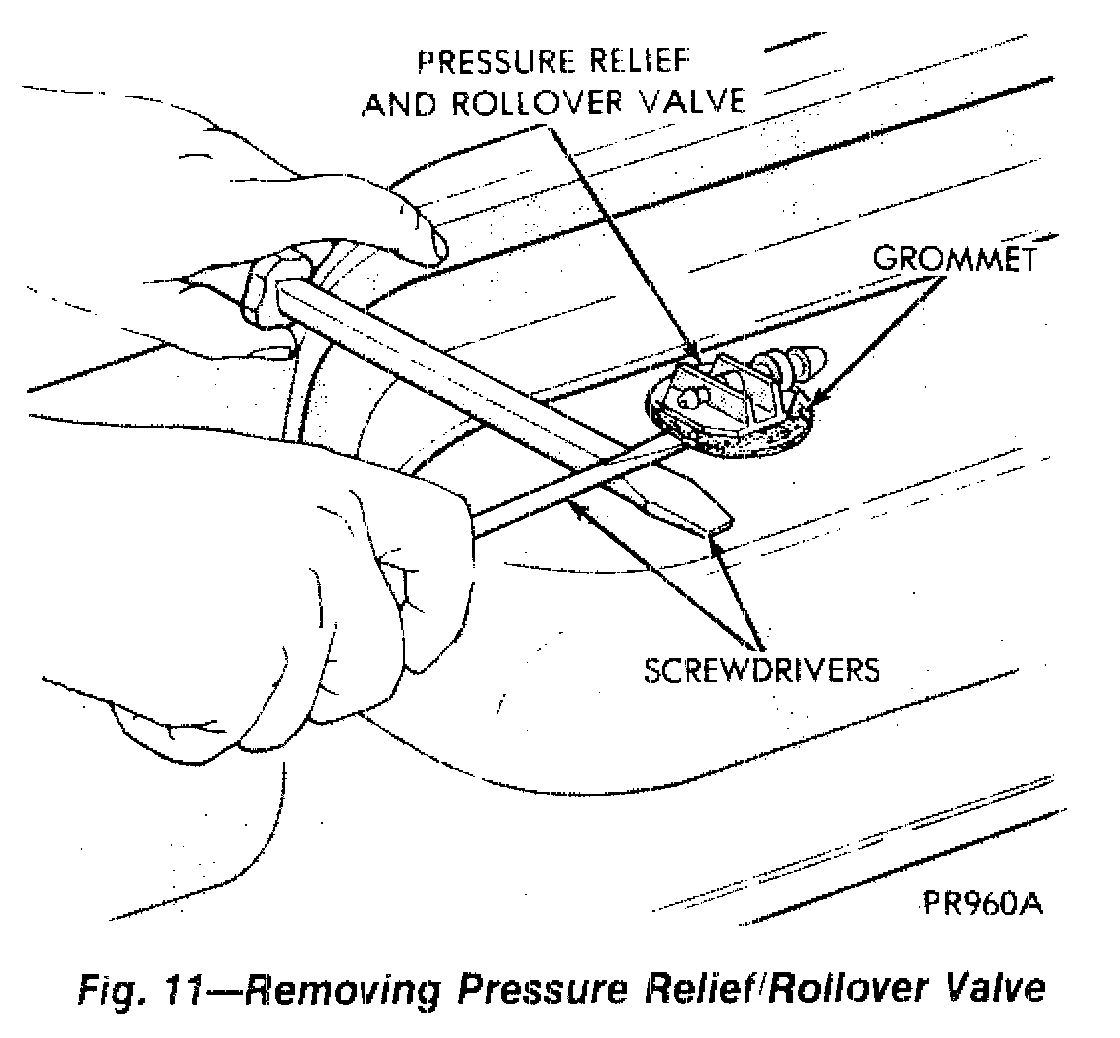

2. Wedge the blade of a screwdriver between the rubber grommet and the fuel tank where the support rib is located. Do not wedge between the valve and the grommet or damage to the valve may result upon removal.
3. Use a second screwdriver as a support to pry the valve and grommet assembly from the tank.
4. To remove the grommet from the valve simply place the valve upright on a flat surface and push down on the grommet peeling it down off the valve.

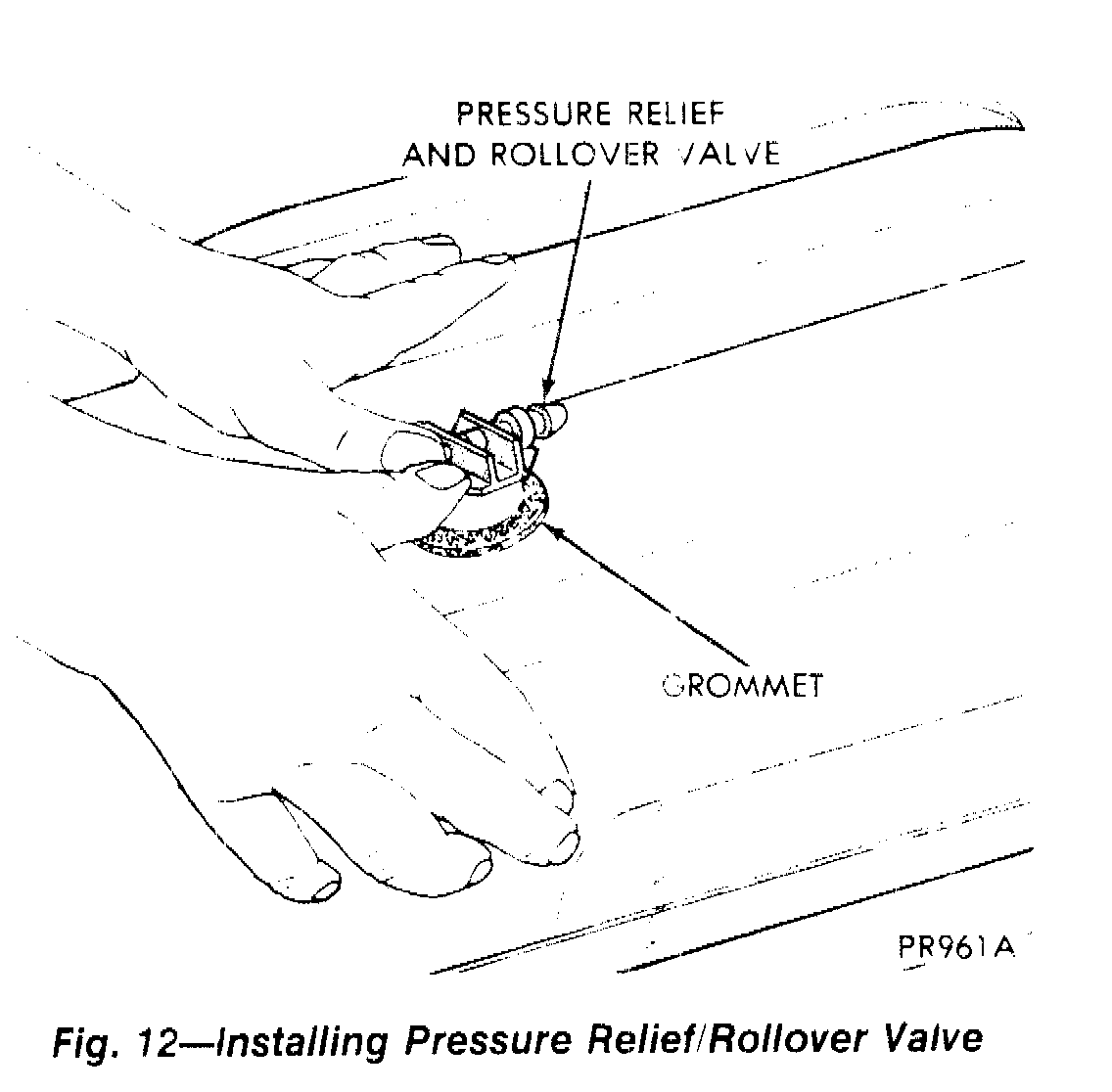

Installation






1. Install the rubher grommet in the fuel tank and work it around the curled lip.
2. Luhricate the grommet with power steering fluid only and push the valve downward into the grommet. Twist valve until properly positioned.
3. Install fuel tank.
